Netis WF-2406 - Page 39

WF-2406 User Manual
38

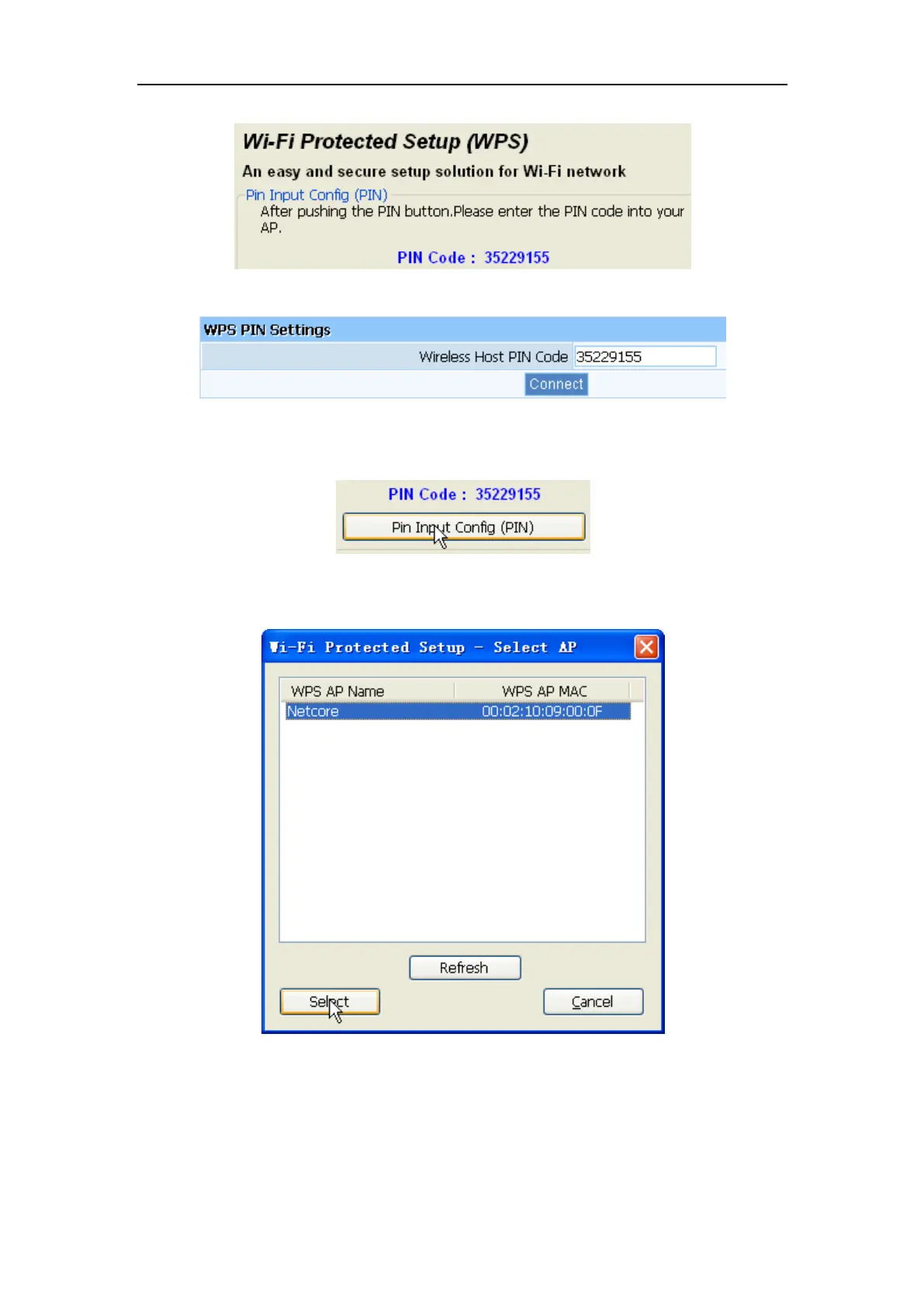

Figure 4-1
Figure 4-16
2. Push the „PIN Input Config (PIN)‟ in the Wi-Fi protect setup of the adapter
Figure 4-2
3. Select this router in the pop-up window, then click „Select‟
Figure 4-18
4. Please wait until the following window appears, the connect between the adapter and the
router will connect automatically
