IMPORTANT ACCESS POINTS
Copyright © 1998 New Flyer Industries Ltd. 17
Battery Access Door
The battery access door is located on the streetside in front of the
rear axle. It allows access to; the batteries, the battery cutoff
switch, the jump start connector, and the fuse panel. It is held
open by (2) gas struts and closed by (2) square key latches. A
smaller spring-loaded door on the battery door provides quick
access to the battery cutoff switch and the jump start connector.
Quarter-Turn Latches
Access doors that are not spring loaded are held closed by quar-
ter turn latches which require a T-handle to operate. The T-handle
is a squared key that fits into the square opening of the latches. To
lock or unlock a latch, insert the T-handle key into the latch and
turn it 90°.

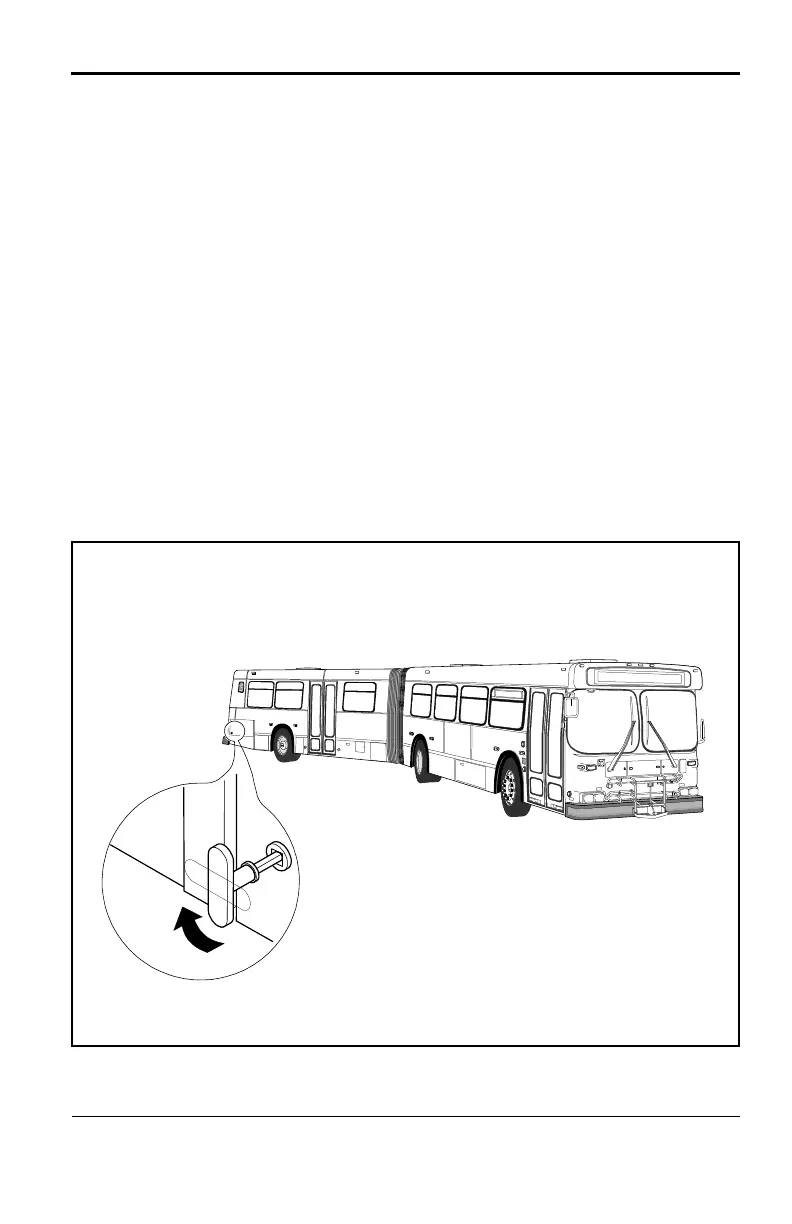

Figure 6: Opening Access Doors
TO
UNLOCK
