INSTRUMENTATION & CONTROLS
Copyright © 1998 New Flyer Industries Ltd. 65
Foot Operated Controls
Brake Treadle
The brake treadle, located to the left of the accelerator treadle,
controls the application and release of the service brakes. The
brake treadle also controls the retarder function. For specific
operating procedures the retarder refer to Section 8: Vehicle
Operation.
Brake application is proportional to the amount of treadle move-
ment applied. Pressing the brake treadle illuminates the tail lights
and the Stop Light indicator light.

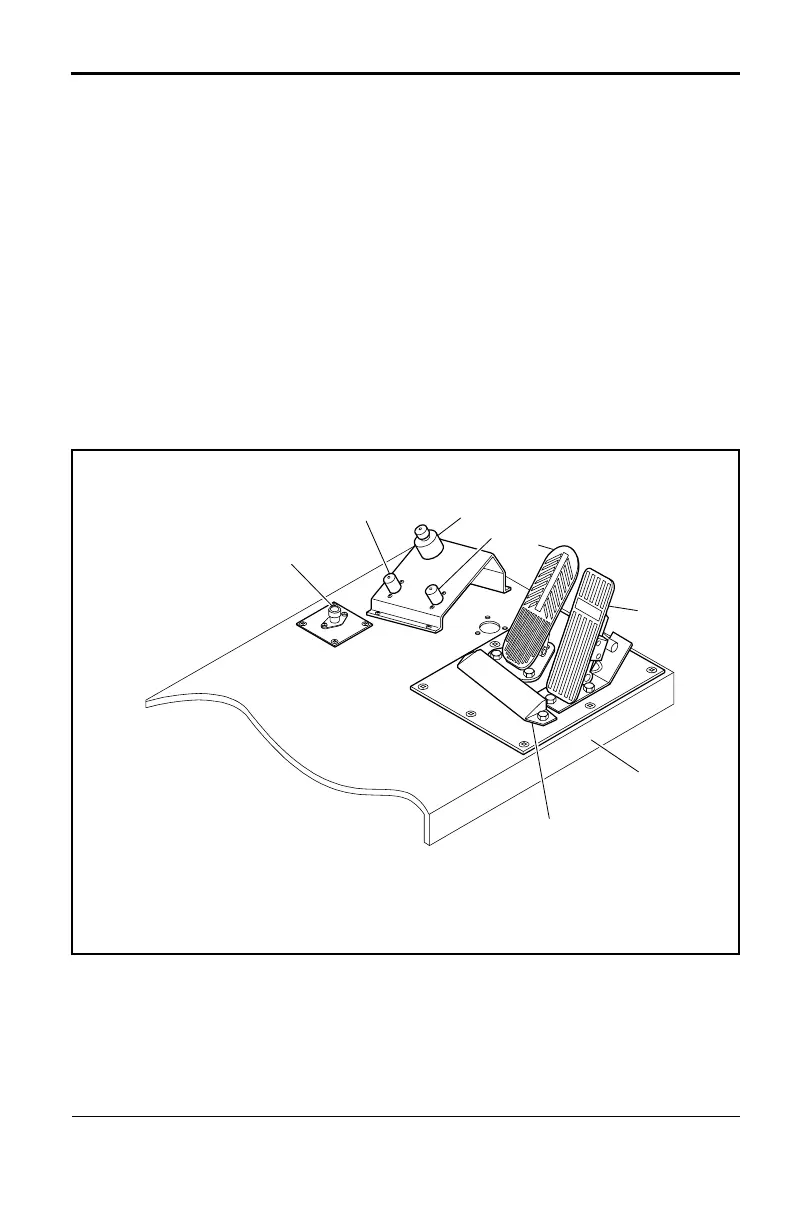

Figure 22: Driver’s Foot Controls
1
4
6
7
2
3
8
5
1. Headlight Dimmer Switch
2. Left Turn Signal Switch
3. Silent Alarm Switch
4. Right Turn Signal Switch
5. Brake Treadle
6. Accelerator Treadle
7. Driver’s Platform
8. Heel Rest
542o007a.wmf
