INSTRUMENTATION & CONTROLS
56 Copyright © 1998 New Flyer Industries Ltd.
Driver’s Climate Controls
Defroster Air Recirculation Control
The Air knob on the instrument panel controls the amount of fresh
air circulated through the driver’s heater/defroster system. This
knob can be set to recirculate all or a portion of air entering the
heater compartment and admit a corresponding amount of fresh
air.
Defroster Heat Control
The Heat knob on the instrument panel controls the temperature
of the air blowing from the defroster. Turn the knob from left to
right to decrease temperature and from right to left to increase
temperature.
Defroster Fan Control
The defroster Fan knob on the instrument panel controls the
speed of the driver’s heater/defroster fan. Turning the knob from
the extreme left (OFF position) to the right provides three fan
speed settings; LOW, MEDIUM, and HIGH.

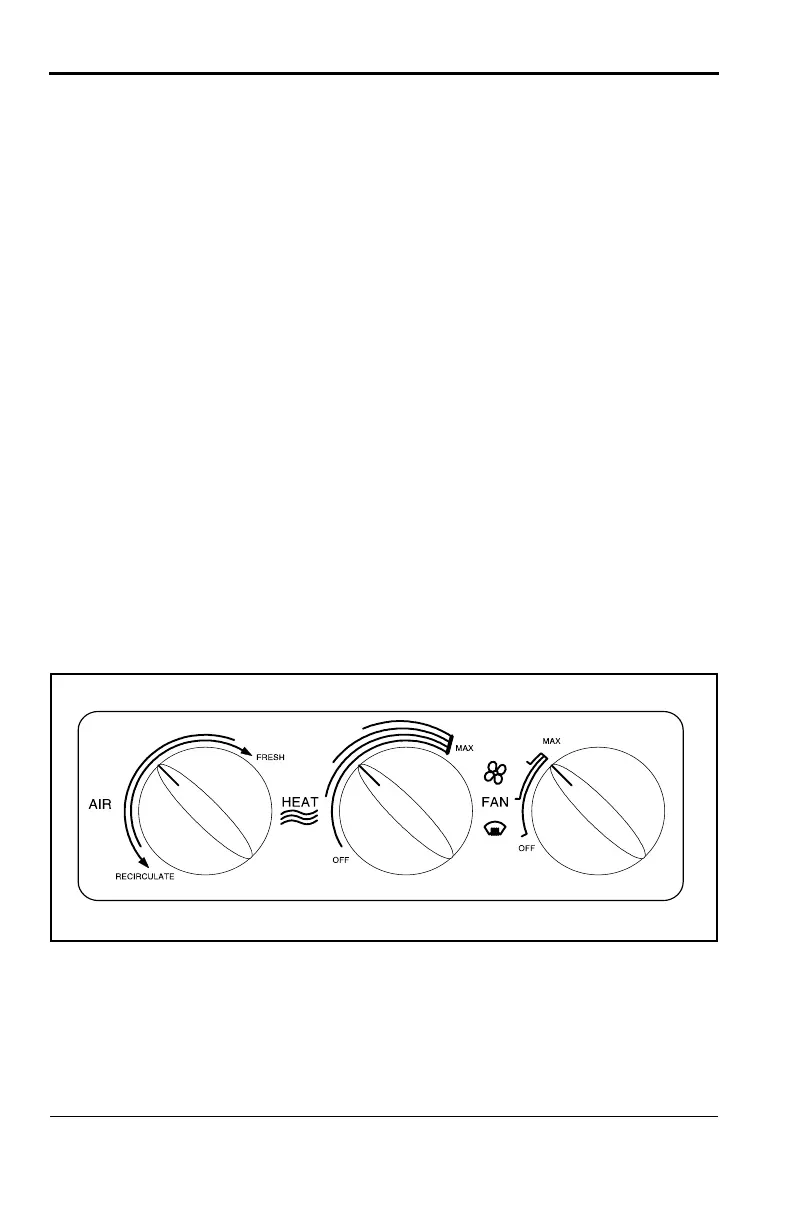

Figure 19: Driver’s Area Climate Controls
op0503a.wmf
