Driver’s Seat
The USSC 9110 ALX3 driver’s seat is an adjustable air suspen-
sion seat consisting of a steel frame base and back panel and
molded foam cushions. The seat-belt retracts to holders beside
the seat cushion.

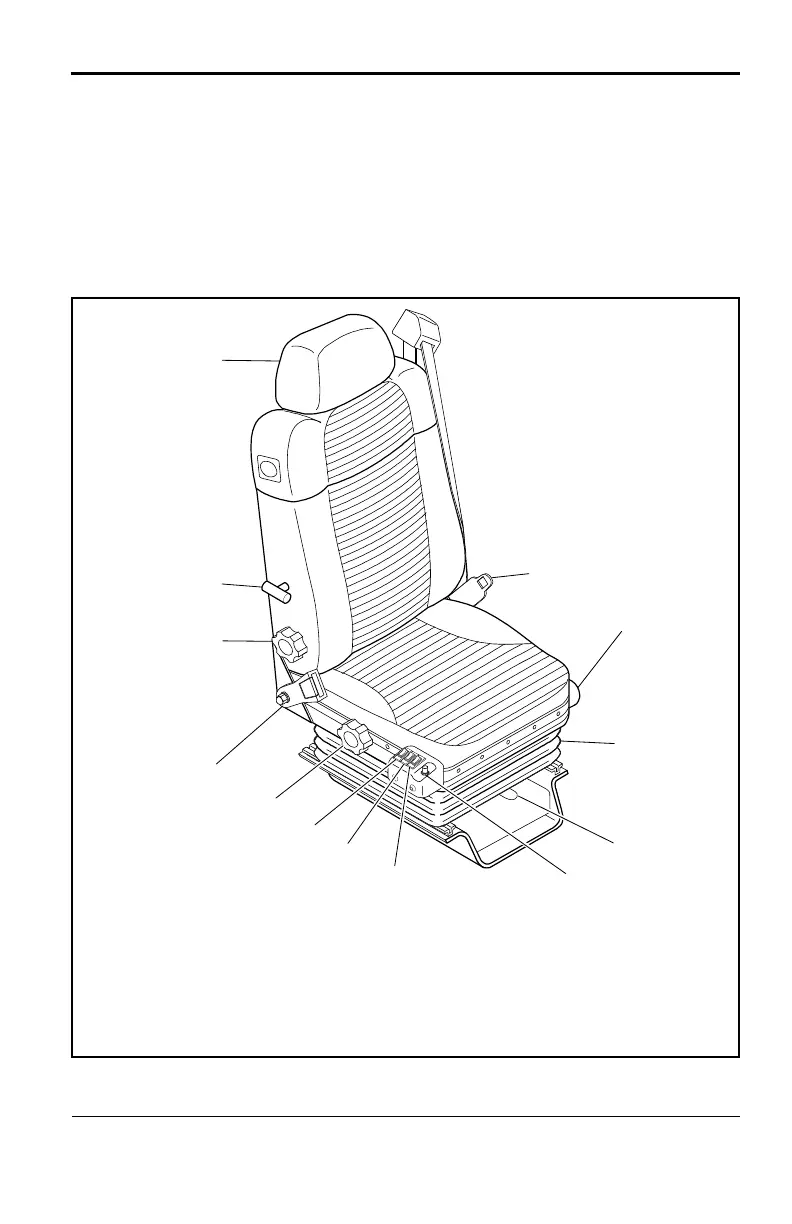

Figure 12: Driver’s Seat
9
1
3
4
5
6
10
8
7
13
11
2
12
1. Adjustable Headrest
2. Shoulder/Lap Belt
3. Height Control Knob
4. Bellows
5. Fore/Aft Lock Lever
6. Fore/Aft Lock Button
7. Bottom Lumbar Adjustment
8. Middle Lumbar Adjustment
9. Top Lumbar Adjustment
10. Seat Tilt Control
11. Seat Belt Clip
12. Backrest Adjustment Knob
13. Side Bolster Adjustment Handle
