DRIVER’S AREA
30 Copyright © 1998 New Flyer Industries Ltd.

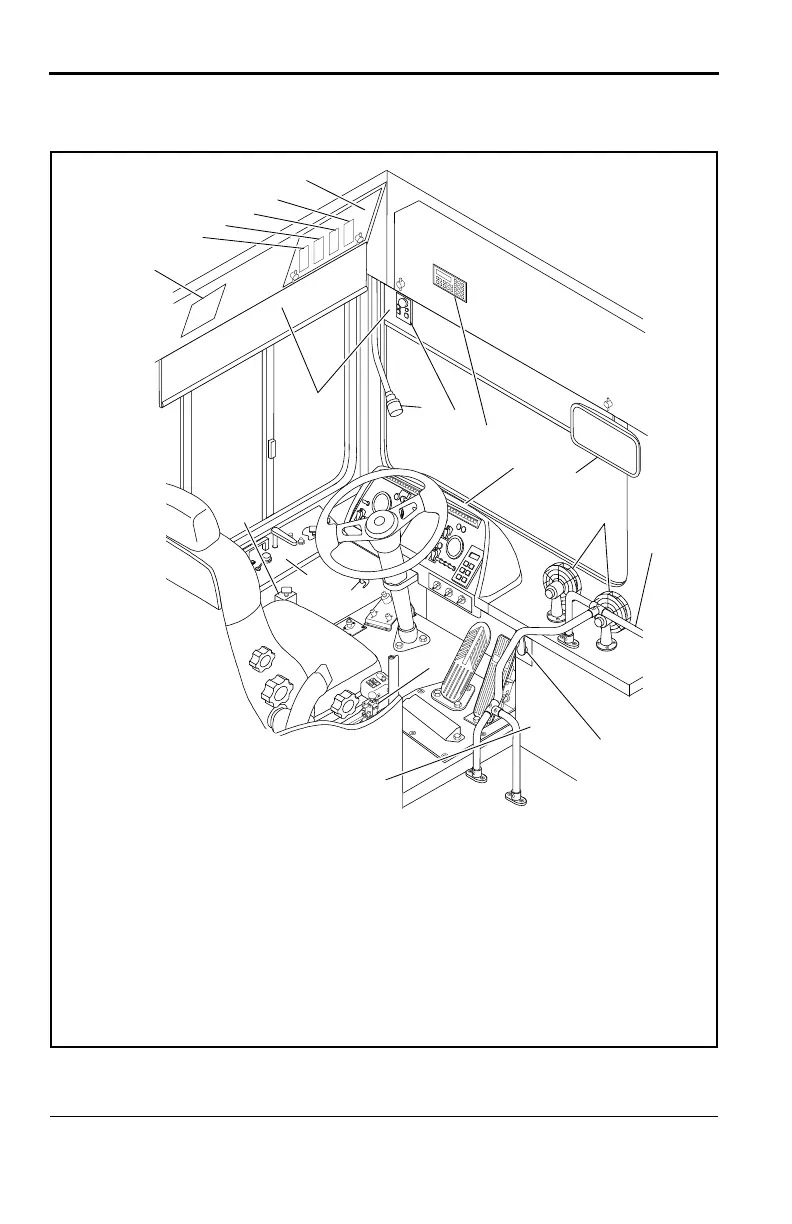

Figure 11: Driver’s Area General View
9
8
1
11
3
18
2
4
5
12
14
17
19
16
15
13
10
20
7
6
1. VIN Plate
2. Door Master Switch
3. Retarder Switch
4. ABS Switch
5. Dampening Monitor Switch
6. Driver’s Locker
7. Roller Blinds
8. Gooseneck Microphone
9. Fire Suppression Monitor Panel
10. Destination Sign Controller
11. Instrument Panel
12. Aisle Mirror
13. Dash Fans
14. Farebox Stanchion
15. Foot Heat Control
16. Driver’s Barrier
17. Fire Suppression Manual Actuator
18. Door Manual Control Valve
19. Side Console Panel
20. Park Brake Control
