New Focus Vortex 6000 Series - Laser Head and Mounting Bracket

58 • Appendix I: Physical Specifications NEW FOCUS, Inc.
Laser Head and Mounting Bracket
W
eight of Laser Head and mounting bracket: 2 lbs (1 kg)

2.495"
1.000"
2.750"
1.375"
0.125"
1.375"
2.625"
0.50"
0.750"
1.430"
3.400"
3.600"
3.750"
1.000"
3.000"
3.525"
3.175"
1.204"
0.275"
0.225"
1.000

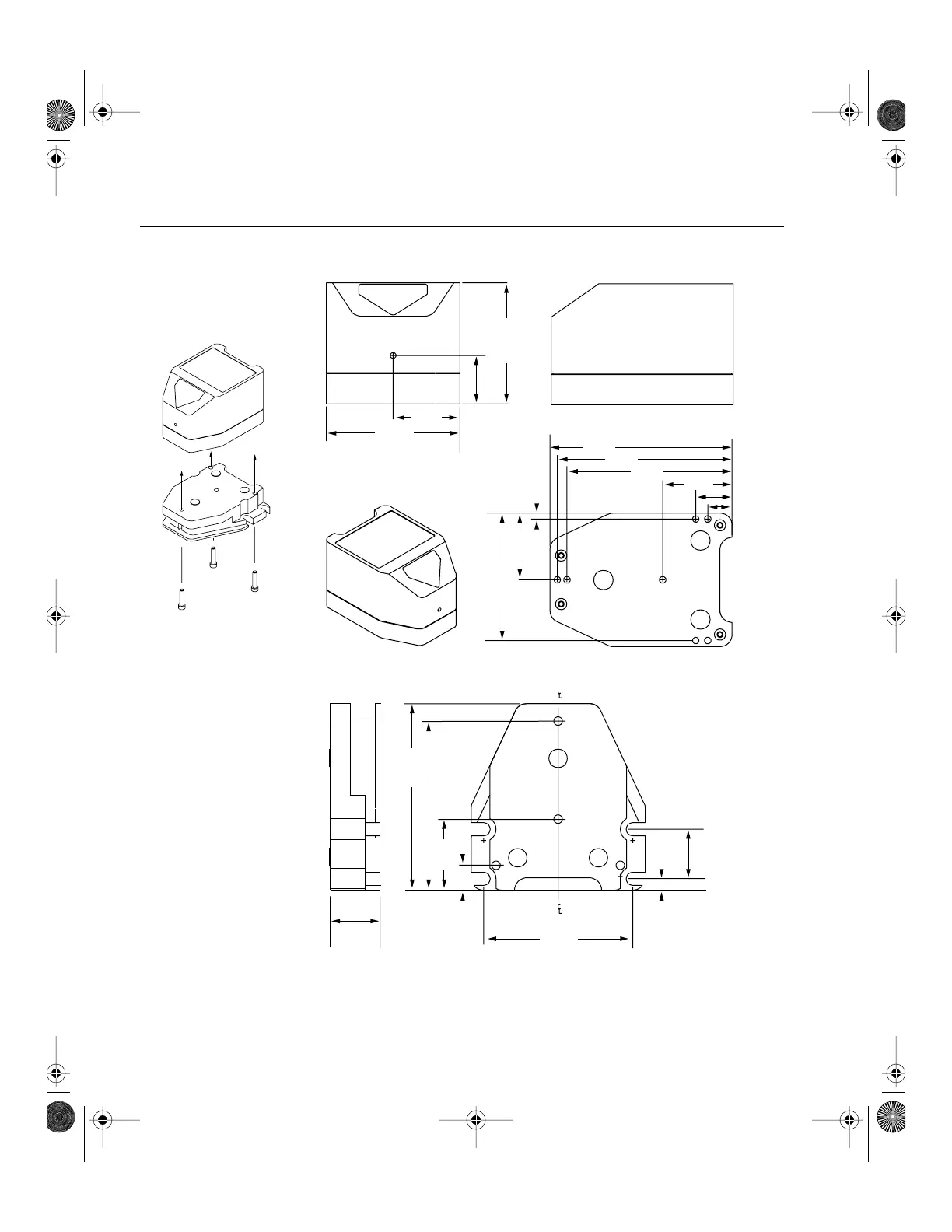

Detail of the Laser
Head/Bracket
Assembly.
