6 • User Safety NEW FOCUS, Inc.
The following table contains a list of wavelength ranges and maximum
internal powers accessible inside the different model laser heads. Look
at the label on top of your laser head for its model number and its
specific wavelength.
The actual output power and wavelength range of your laser will only be a fraction
of the internal diode power and wavelength range shown here.

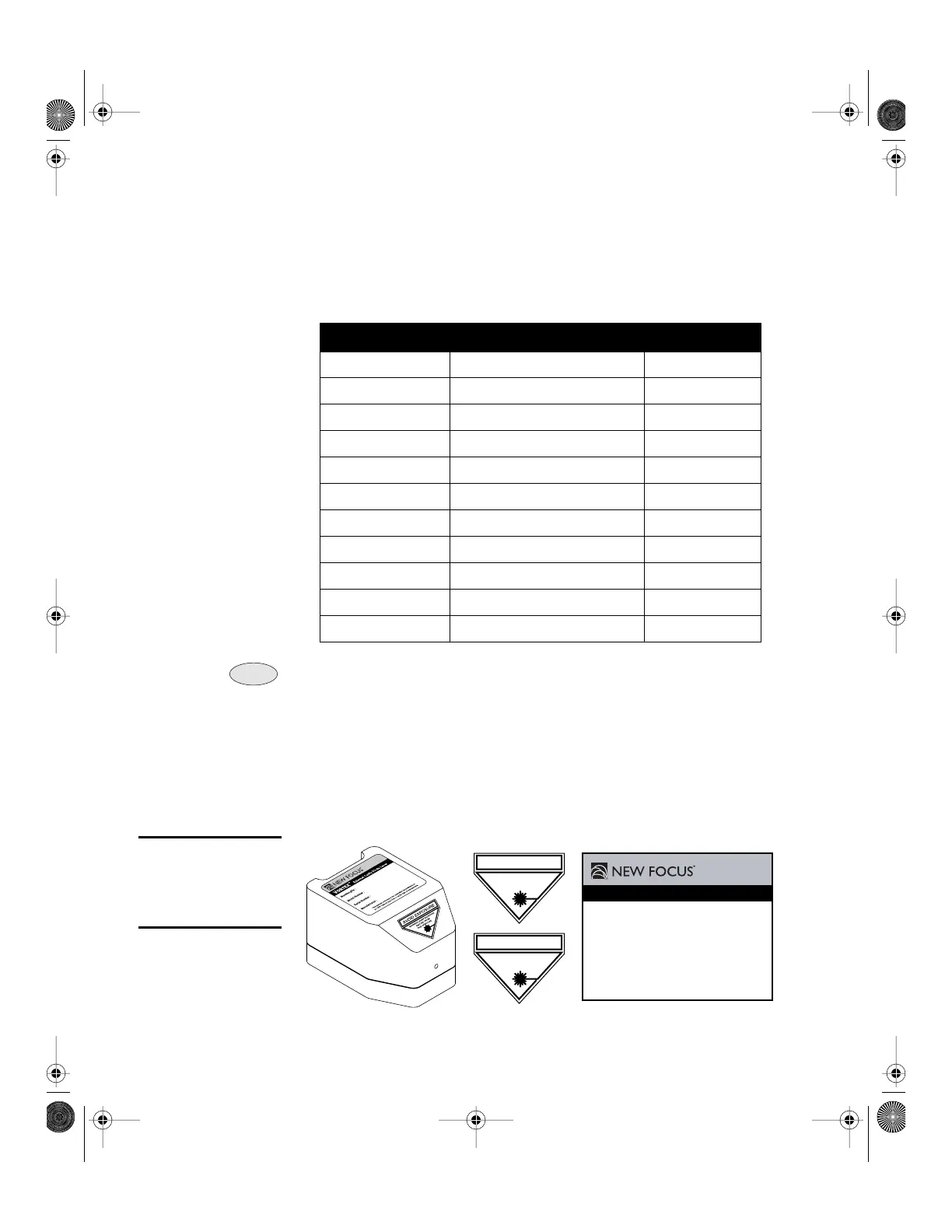

Label Identification
The aperture and danger labels shown here pertain to different
wavelength laser heads. Depending on your specific wavelength
requirements, other labels similar to those shown may be used.
Figure 1:
Labels on the
front and top of
the laser head
Model
Wavelength Range Max. Power
6003 350–500 nm 10 mW
6005 600–645 nm 15 mW
6009 630–710 nm 30 mW
6013 710–800 nm 70 mW
6017 760–905 nm 100 mW
6021 830–1180 nm 100 mW
6025 1100–1480 nm 30 mW
6027 1350–1650 nm 50 mW
6029, 6029-Power 1380–1710 nm 50 mW
6031 1550–1900 nm 25 mW
6033 1610–2400 nm 100 mW
External-Cavity Diode Laser
Wavelengths :
Model Number :
Serial Number :
Manufactured :
This product conforms to the applicable requirements of
21 CFR 1040.10 and 1040.11 at the date of manufacture.
VORTEX
TM
AVOID EXPOSURE
LASER LIGHT EMITTED
FROM THIS APERTURE
AVOID EXPOSURE
INVISIBLE LASER RADIATION
EMITTED FROM
THIS APERTURE
Front of laser head Aperture labels
Certification label
