Chapter 2: Jumpers and Connectors
NISE 3140, NISE 3140E, NISE 3140P2, NISE 3140P2E User Manual

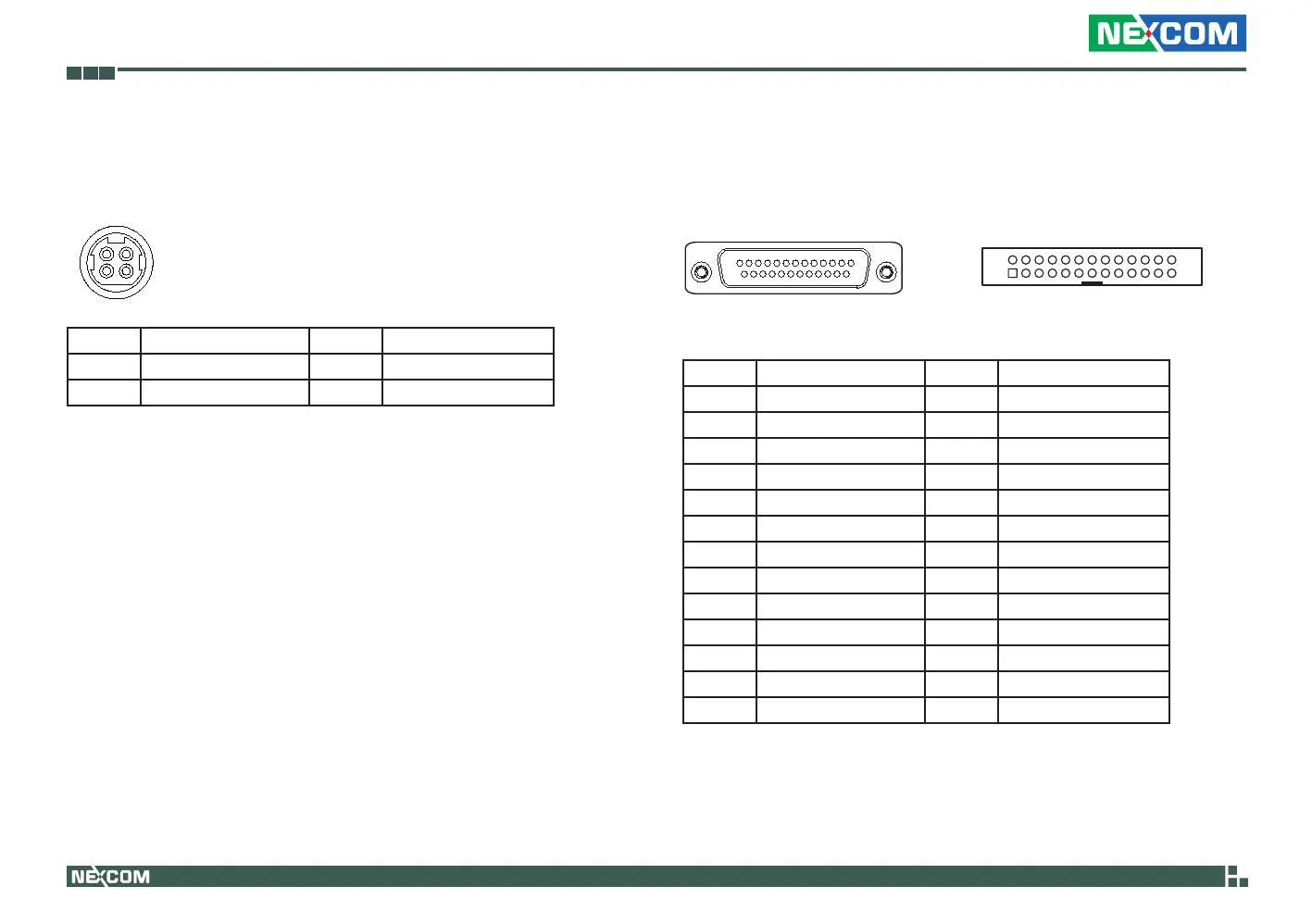

16V-30V DC Input
Connector size: 4-pin power jack, 15x16x17.4mm, POWER-F-90
Connector location: CN3
3
1
2
4
Pin Definition Pin Definition
1 VIN 2 VIN
3 GND 4 GND
Parallel Connector
Connector size: 25-pin D-Sub, 2x13 (2.0mm), BOX-2.0mm-M-180
Connector location: CN5
1
14
13
26
Pin Definition Pin Definition
1 LPT_ STB# 2 LPT_ PRD0
3 LPT_ PRD1 4 LPT_ PRD2
5 LPT_ PRD3 6 LPT_ PRD4
7 LPT_ PRD5 8 LPT_ PRD6
9 LPT_ PRD7 10 LPT_ACK#R
11 LPT_BUSY 12 LPT_PE
13 LPT_SLCT 14 LPT_AFD#
15 LPT_ERR# 16 LPT_INIT#
17 LPT_SLIN# 18 GND
19 GND 20 GND
21 GND 22 GND
23 GND 24 GND
25 GND 26 NC
25
13
14
1
2x13 (2.0mm)
25-pin D-Sub
