Chapter 2: Jumpers and Connectors
NISE 3140, NISE 3140E, NISE 3140P2, NISE 3140P2E User Manual

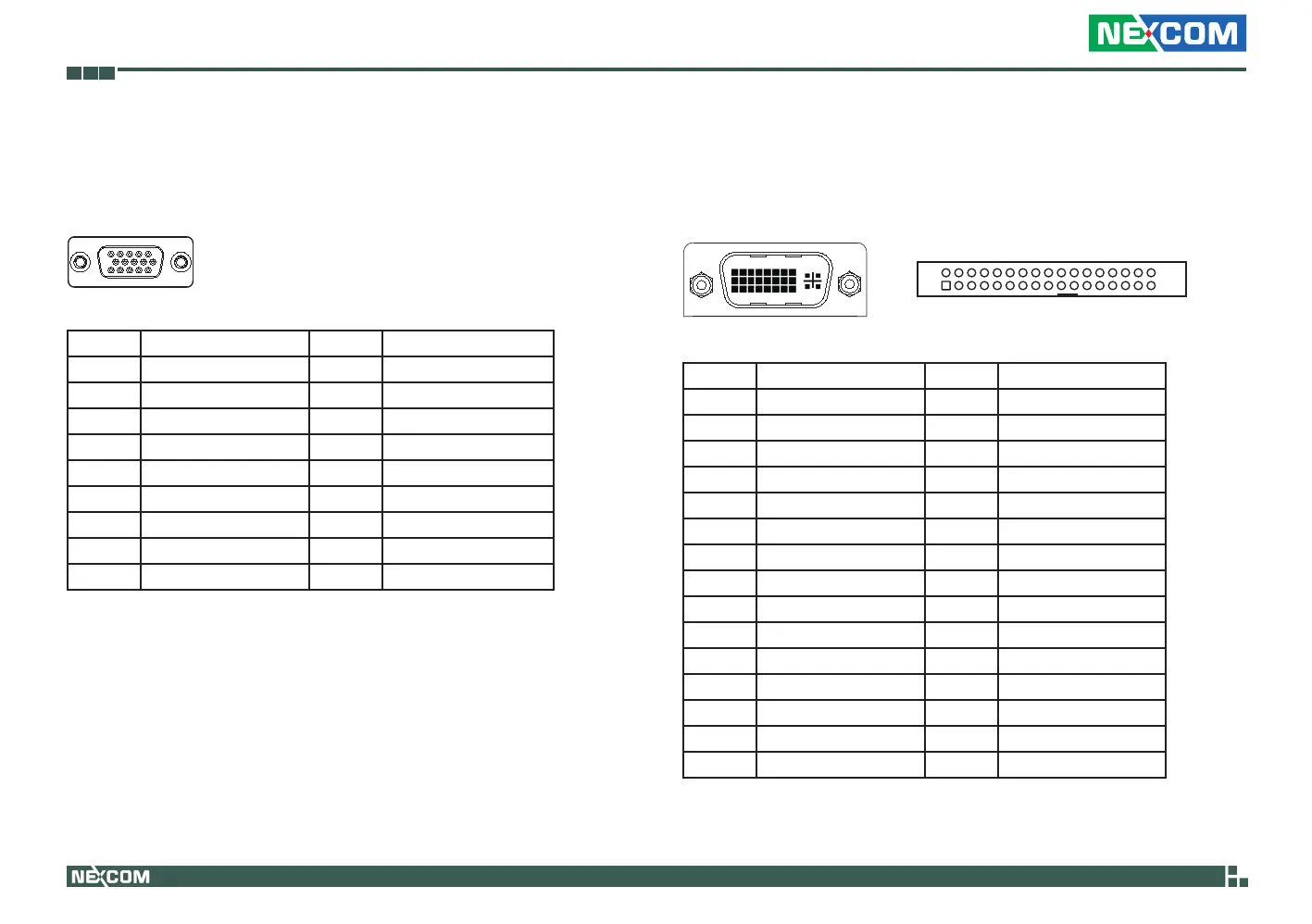

VGA Port
Connector size: DB-15 port, 15-pin D-Sub
Connector location: CN10B
Pin Definition Pin Definition
25 RED 26 GREEN
27 BLUE 28 GND
29 GND 30 GND
31 GND 32 GND
33 VCC5 34 GND
35 GND 36 DDC_DATA
37 HSYNC 38 VSYNC
39 DDC_CLK MH3 GND
MH4 GND
15
1115
DVI-I Port
Connector size: 30-pin D-Sub, 2.0mm-M-180
Connector location: CN10A
81
2417
Pin Function Pin Function
01 HDMI_DATA2_N 2 HDMI_DATA2_P
03 GND 4 NC
05 DDC_DATA 6 HDMI _DDC_CLK
07 HDMI 8 DDC_VSYNC_VGA
09 HDMI_DATA1_N 10 HDMI_DATA1_P
11 GND 12 NC
13 NC 14 VCC5
15 GND 16 HDMIC_HPD
17 HDMI_DATA0_N 18 HDMI_DATA0_P
19 GND 20 DDC_DATA_VGA
21 DDC_CLK_VGA 22 NC
23 HDMI_CLK_P 24 HDMI_CLK_N
C1 RED_VGA C2 GREEN_VGA
C3 BLUE_VGA C4 HSYNC_VGA
C5A GND C5B GND
331
342
