Chapter 2: Jumpers and Connectors
NISE 3140, NISE 3140E, NISE 3140P2, NISE 3140P2E User Manual

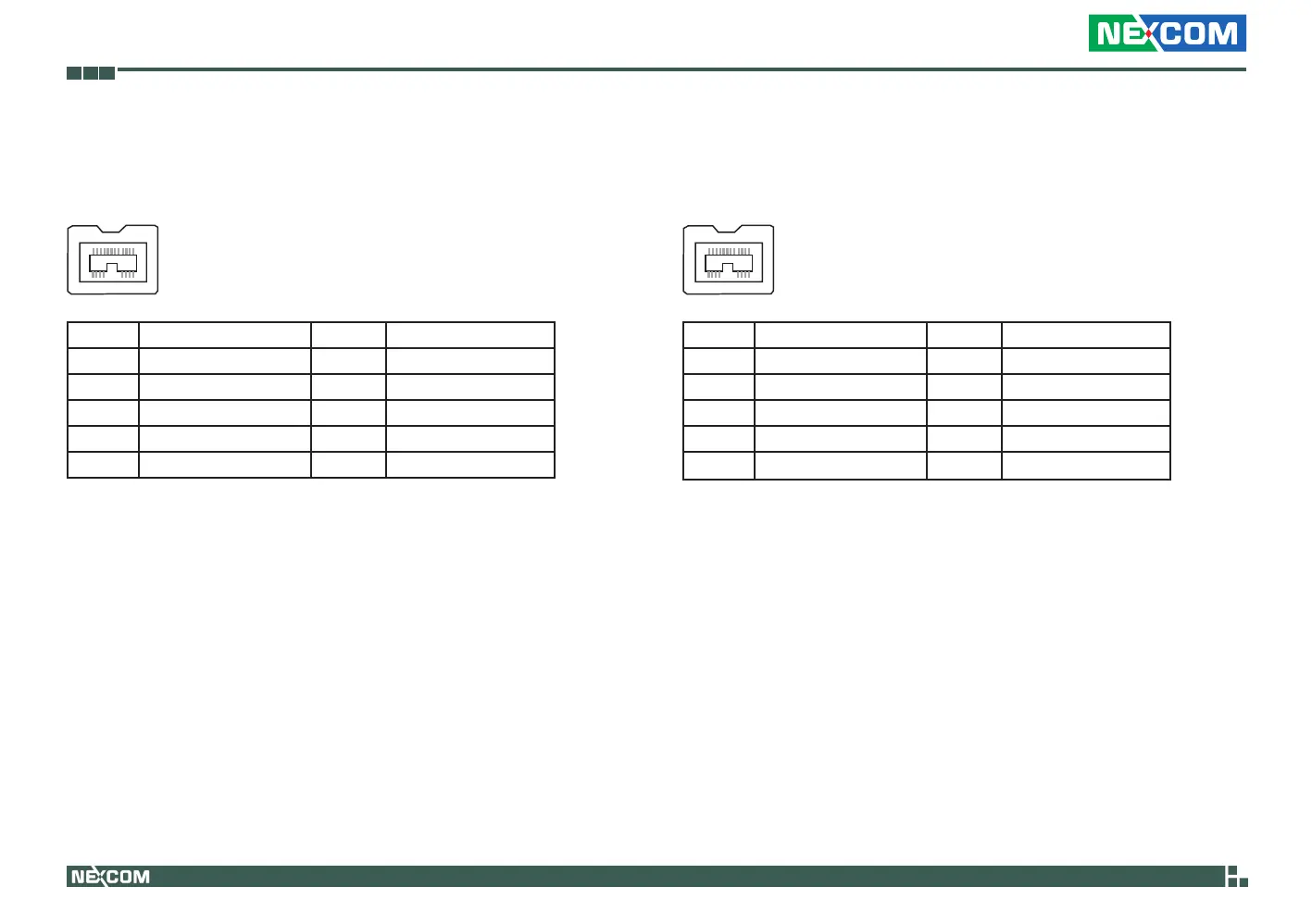

IEEE1394B-1 Connector (only on NISE 3140M / NISE 3144 series)
Connector size: 1394
Connector location: J12
Pin Description Pin Description
1 1394B_TB0C_N 2 1394B_TB0C_P
3 1394B_TA0C_N 4 1394B_TA0C_P
5 1394B_SG_0 6 GND
7 NC 8 BUS_PWR
9 GND
IEEE1394B-2 Connector (only on NISE 3140M / NISE 3144 series)
Connector size: 1394
Connector location: J11
Pin Description Pin Description
1 1394B_TB1C_N 2 1394B_TB1C_P
3 1394B_TA1C_N 4 1394B_TA1C_P
5 1394B_SG_1 6 GND
7 NC 8 BUS_PWR
9 GND
