Nexcom NISE 3140 - LAN Ports (CN8 B); LAN2 Ports (CN9 B)

Copyright © 2009 NEXCOM International Co., Ltd. All Rights Reserved.
20
Chapter 2: Jumpers and Connectors
NISE 3140, NISE 3140E, NISE 3140P2, NISE 3140P2E User Manual

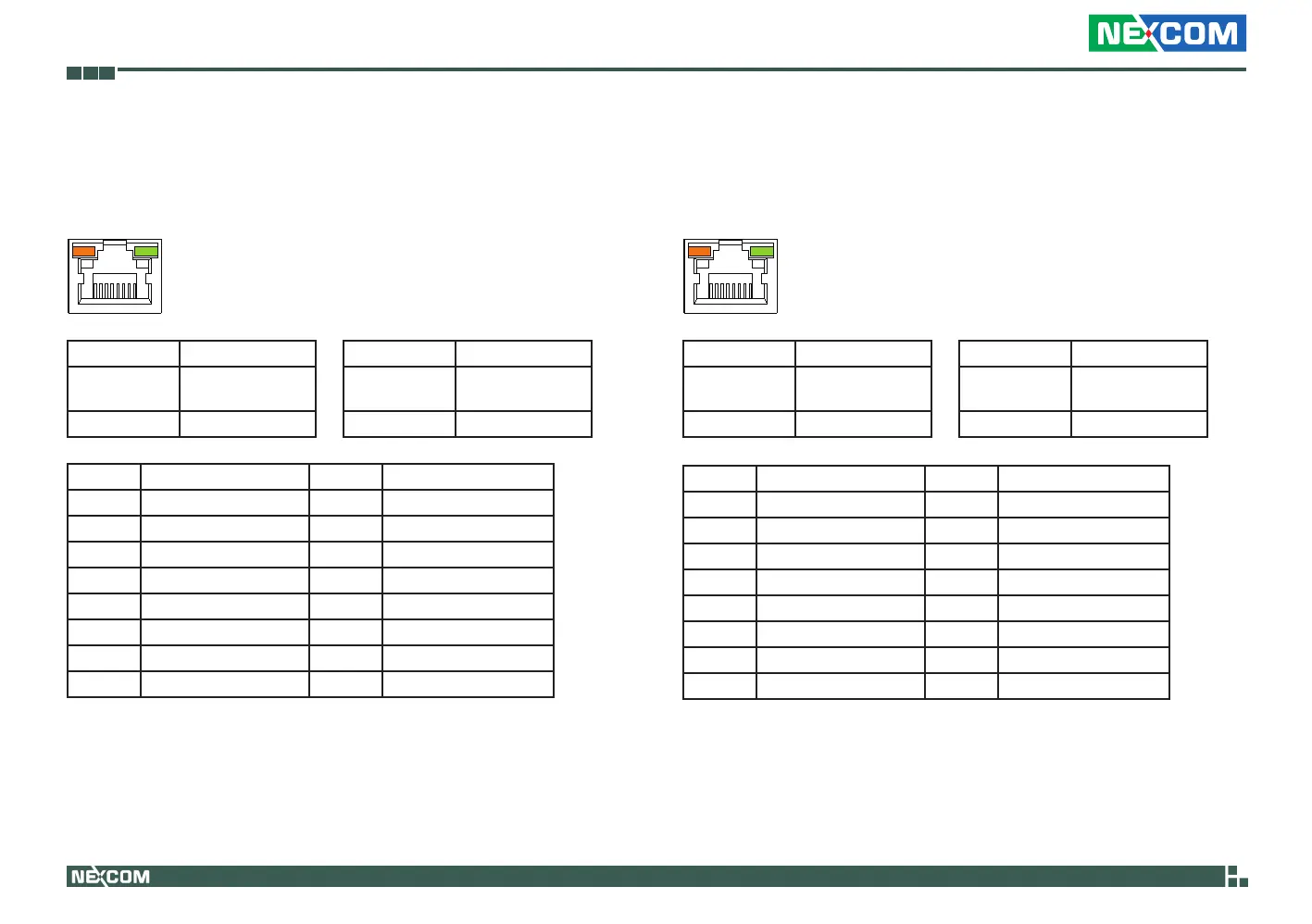

LAN Ports
Connector size: RJ45 port with LEDs
Connector location: CN8B (LAN1)
Pin Definition Pin Definition
09 LAN1_M0P 10 LAN1_M0N
11 LAN1_M1P 12 LAN1_M2P
13 LAN1_M2N 14 LAN1_M1N
15 LAN1_M3P 16 LAN1_M3N
17 LAN1_LED1P 18 LAN1_LED_ACT#
19 LAN1_LED2P 20 LAN1_LINK#
21 GND 24 GND
25 GND 28 GND
Act Link
Act Status
Orange
Blinking
Data Activity
Off No Acitivity
Link Status
Green
Always Lighted
Linked
Off No Link
LAN2 Ports
Connector size: RJ45 port with LEDs
Connector location: CN9B (LAN2)
Act Link
Act Status
Orange
Blinking
Data Activity
Off No Acitivity
Link Status
Green
Always Lighted
Linked
Off No Link
Pin Definition Pin Definition
09 LAN2_M0P 10 LAN2_M0N
11 LAN2_M1P 12 LAN2_M2P
13 LAN2_M2N 14 LAN2_M1N
15 LAN2_M3P 16 LAN2_M3N
17 LAN2_LED1P 18 LAN2_LED_ACT#
19 LAN2_LED2P 20 LAN2_LINK#
21 GND 24 GND
25 GND 28 GND
