Chapter 2: Jumpers and Connectors
NISE 3140, NISE 3140E, NISE 3140P2, NISE 3140P2E User Manual

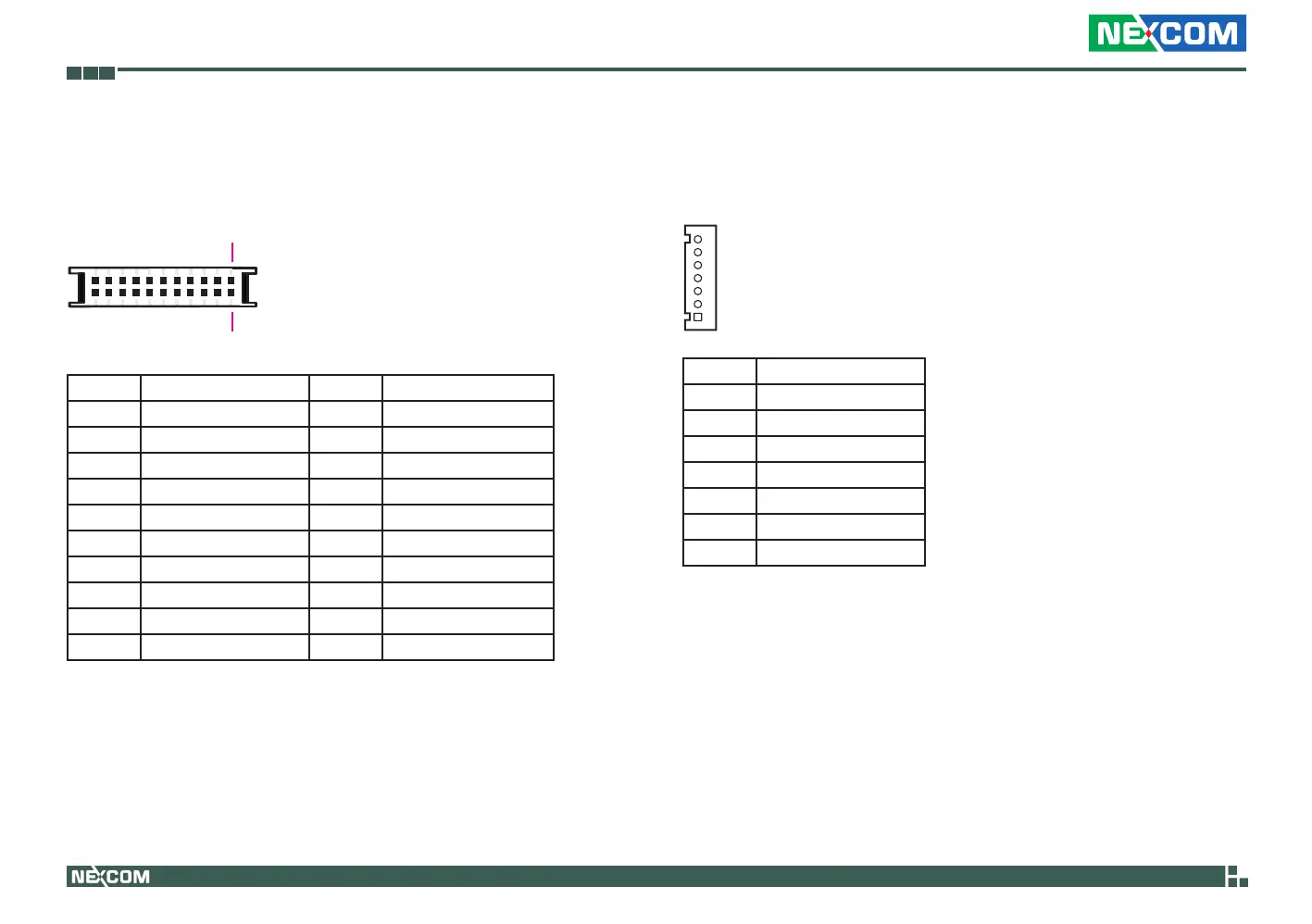

LVDS Channel B Connector
Connector size: LCD-1.25mm-M-180
Connector location: CN1
2
1
20
19
Pin Definition Pin Definition
1 L_DDC_CLK 2 L_DDC_DATA
3 PANEL_VDD 4 LB_DATAP0
5 LB_DATAP3 6 LB_DATAN0
7 LB_DATAN3 8 PANEL_VDD
9 GND 10 LB_DATAP1
11 LB_CLKP 12 LB_DATAN1
13 LB_CLKN 14 GND
15 GND_LVDS 16 +12V
17 LB_DATAP2 18 +12V
19 LB_DATAN2 20 GND
MH1
MH2
7
1
LVDS Backlight Connector
Connector size: 1x7 (JST-2.5mm-M-180)
Connector location: J2
Pin Definition
1 VCC5
2 +12V
3 +12V
4 BKLTCTL
5 GND
6 GND
7 BKLTEN
