Chapter 2: Jumpers and Connectors
NISE 3140, NISE 3140E, NISE 3140P2, NISE 3140P2E User Manual

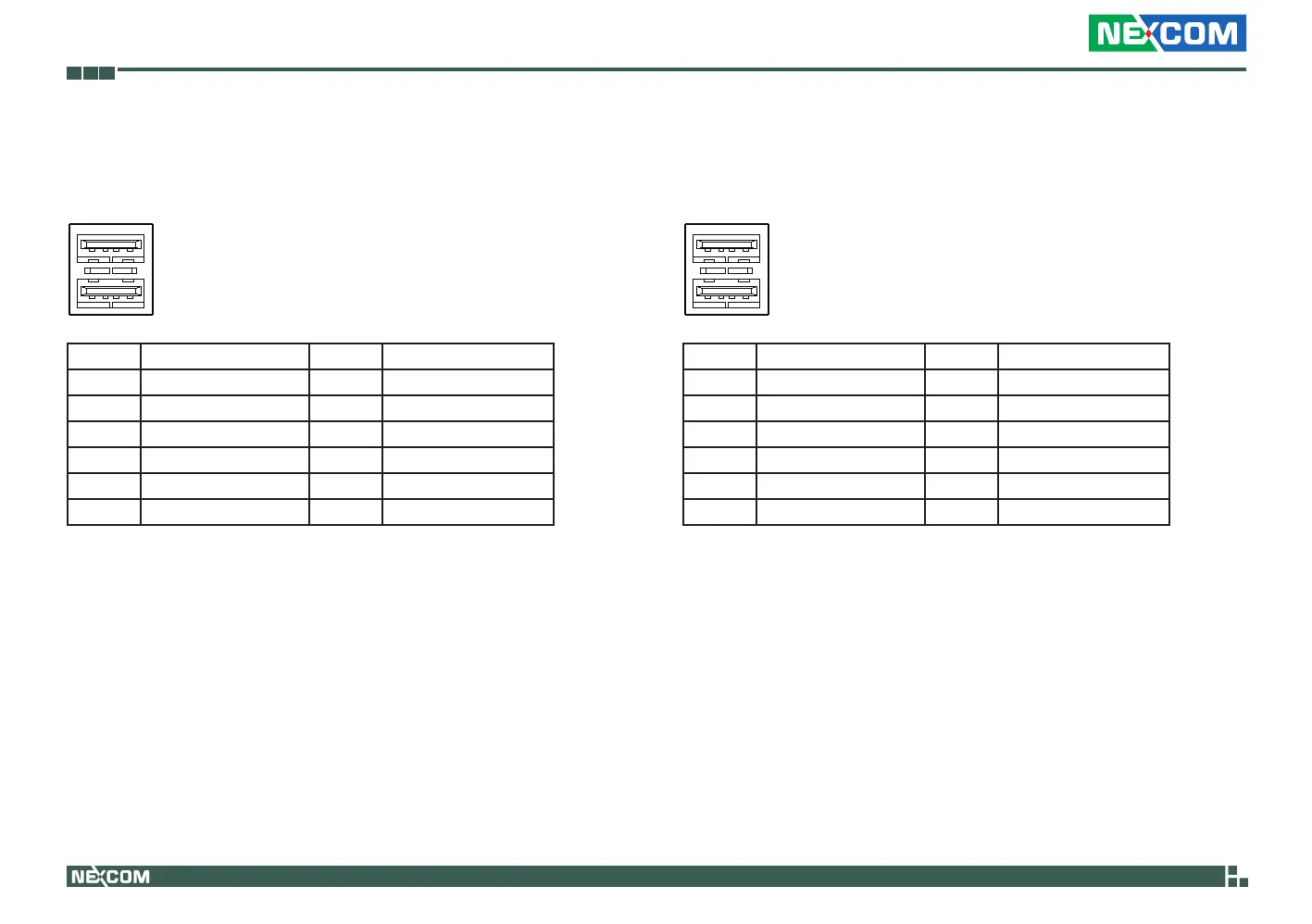

USB Ports
Connector size: Dual USB port
Connector location: CN8A
Pin Definition Pin Definition
1 VCC5 5 VCC5
2 USB0- 6 USB1-
3 USB0+ 7 USB1+
4 GND 8 GND
22 GND 23 GND
26 GND 27 GND
USB Ports
Connector size: Dual USB port
Connector location: CN9A
Pin Definition Pin Definition
1 VCC5 5 VCC5
2 USB2- 6 USB3-
3 USB2+ 7 USB3+
4 GND 8 GND
22 GND 23 GND
26 GND 27 GND
