Chapter 2: Jumpers and Connectors
NISE 3140, NISE 3140E, NISE 3140P2, NISE 3140P2E User Manual

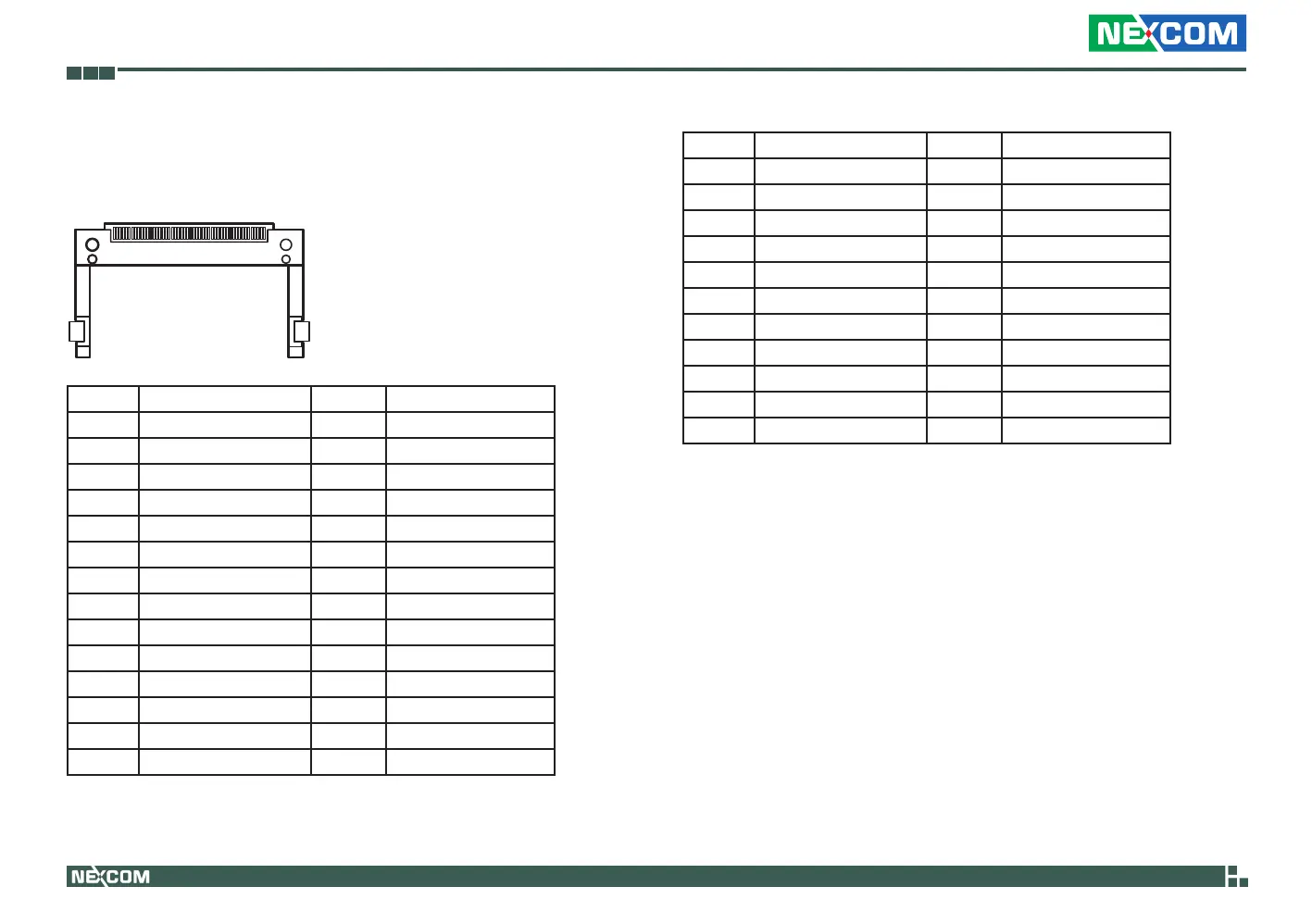

CompactFlash
Connector type: 2x25 (2.5mm)
Connector location: CN7
Pin Description Pin Description
1 GND 2 PDD3
3 PDD4 4 PDD5
5 PDD6 6 PDD7
7 -PCS0 8 GND
9 GND 10 GND
11 GND 12 GND
13 VCC5 14 GND
15 GND 16 GND
17 GND 18 PDA2
19 PDA1 20 PDA0
21 PDD0 22 PDD1
23 PDD2 24 NC
25 CF_CD#2 26 CF_CD#1
27 PDD11 28 PDD12
Pin Description Pin Description
29 PDD13 30 PDD14
31 PDD15 32 -PCS1
33 NC 34 -PDIOR
35 -PDIOW 36 VCC5
37 IRQ14 38 VCC5
39 CF_CSEL# 40 NC
41 CF_RST# 42 PHDRDY
43 PDDREQ 44 PDDACK
45 IDE_ACT# 46 PPDIAG#
47 PDD8 48 PDD9
49 PDD10 50 GND
