Chapter 2: Jumpers and Connectors
NISE 3140, NISE 3140E, NISE 3140P2, NISE 3140P2E User Manual

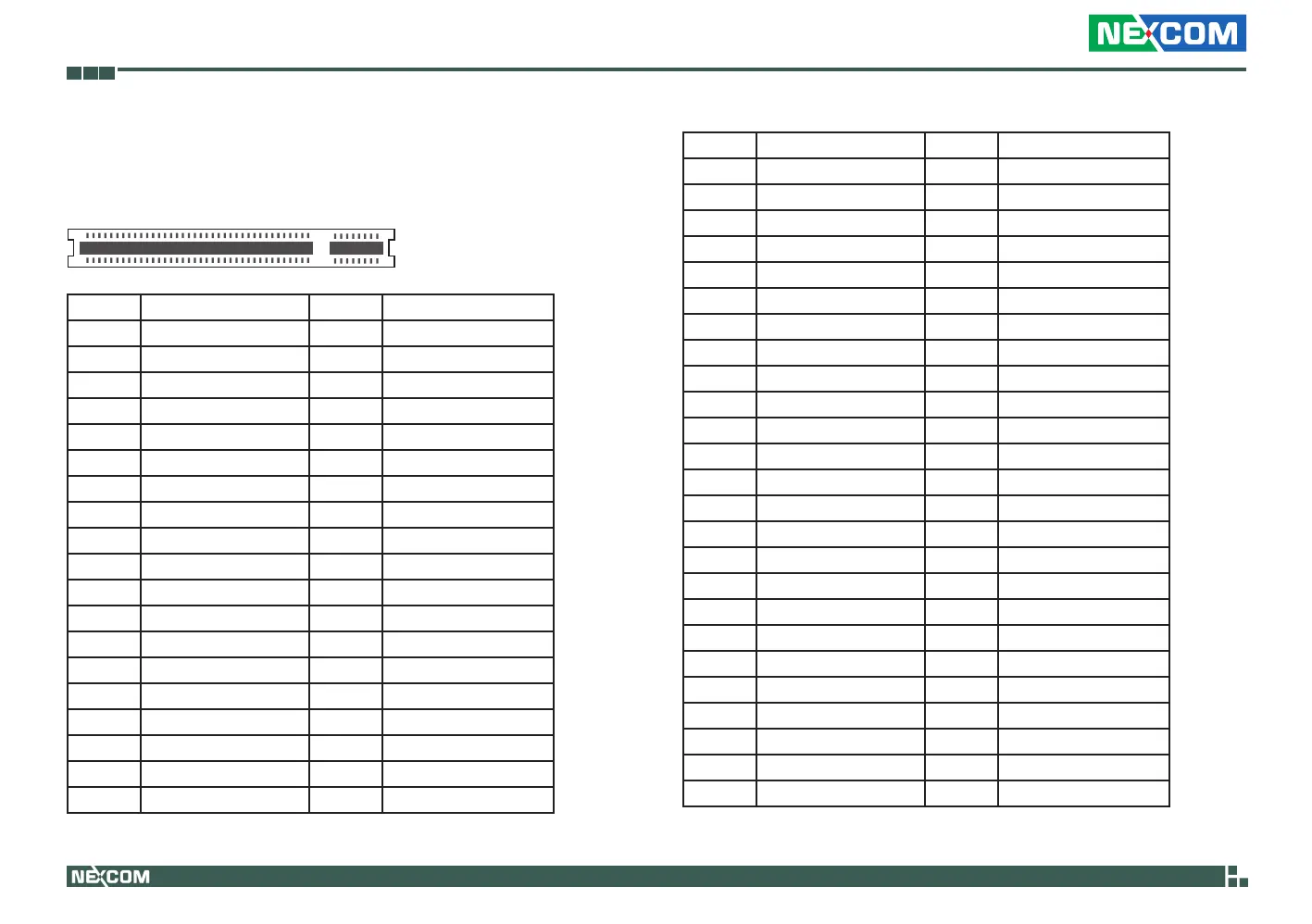

PCI Connector
Connector size: DF13-40DS-1.25DSA
Connector location: CN17
Pin Definition Pin Definition
A GND B PDD3
A PDD5 B PDD6
A1 PCI_SLOT_TRST# B1 -12V
A2 +12V B2 PCI_SLOT_TCK
A3 PCI_SLOT_TMS B3 GND
A4 PCI_SLOT_TDI B4 NC
A5 VCC5 B5 VCC5
A6 PCI_SLOT_IRQ#0 B6 VCC5
A7 PCI_SLOT_IRQ#2 B7 PCI_SLOT_IRQ#1
A8 VCC5 B8 PCI_SLOT_IRQ#3
A9 PCI_SLOT_RSV1 B9 PCI_SLOT_PRSNT1#
A10 VCC5 B10 PCI_SLOT_RSV5
A11 PCI_SLOT_RSV2 B11 PCI_SLOT_PRSNT2#
A12 GND B12 GND
A13 GND B13 GND
A14 3VSB B14 PCI_CLK1
A15 PCI_SLOT_RST# B15 GND
A16 VCC5 B16 PCI_CLK0
A17 PCI_GNT#0 B17 GND
Pin Definition Pin Definition
A18 GND B18 PCI_SLOT_REQ#0
A19 PCI_SLOT_PME# B19 VCC5
A20 PCI_AD30 B20 PCI_AD31
A21 VCC3 B21 PCI_AD29
A22 PCI_AD28 B22 GND
A23 PCI_AD26 B23 PCI_AD27
A24 GND B24 PCI_AD25
A25 PCI_AD24 B25 VCC3
A26 PCI_SLOT_IDSEL B26 PCI_CBE#3
A27 VCC3 B27 PCI_AD23
A28 PCI_AD22 B28 GND
A29 PCI_AD20 B29 PCI_AD21
A30 GND B30 PCI_AD19
A31 PCI_AD18 B31 VCC3
A32 PCI_AD16 B32 PCI_AD17
A33 VCC3 B33 PCI_CBE#2
A34 PCI_FRAME# B34 GND
A35 GND B35 PCI_IRDY#
A36 PCI_TRDY# B36 VCC3
A37 GND B37 PCI_DEVSEL#
A38 PCI_STOP# B38 GND
A39 VCC3 B39 PCI_LOCK#
A40 SMBCLK_PCI B40 PCI_PERR#
A41 SMBDATA_PCI B41 VCC3
A42 GND B42 PCI_SERR#
