Chapter 2: Jumpers and Connectors
NISE 3140, NISE 3140E, NISE 3140P2, NISE 3140P2E User Manual

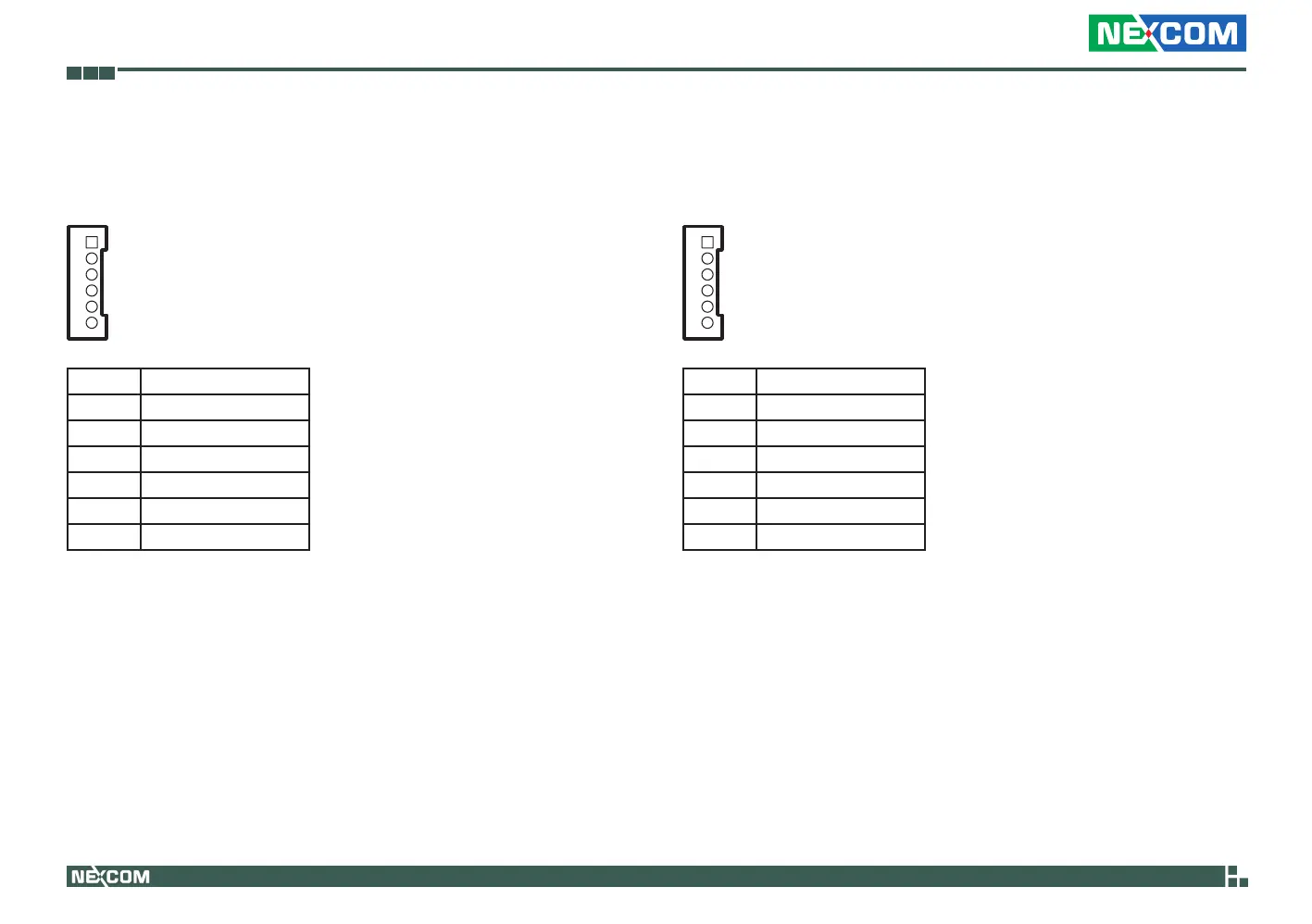

USB4 Connector
Connector size: 6-pin boxed header, JST-2.0mm-M-180
Connector location: J5
6
1
Pin Definition
1 VCC5
2 USB6-
3 USB6+
4 USB7-
5 USB7+
6 GND
USB5 Connector
Connector size: 6-pin boxed header, JST-2.0mm-M-180
Connector location: J6
6
1
Pin Definition
1 VCC5
2 USB8-
3 USB8+
4 USB9-
5 USB9+
6 GND
