Chapter 2: Jumpers and Connectors
NISE 3140, NISE 3140E, NISE 3140P2, NISE 3140P2E User Manual

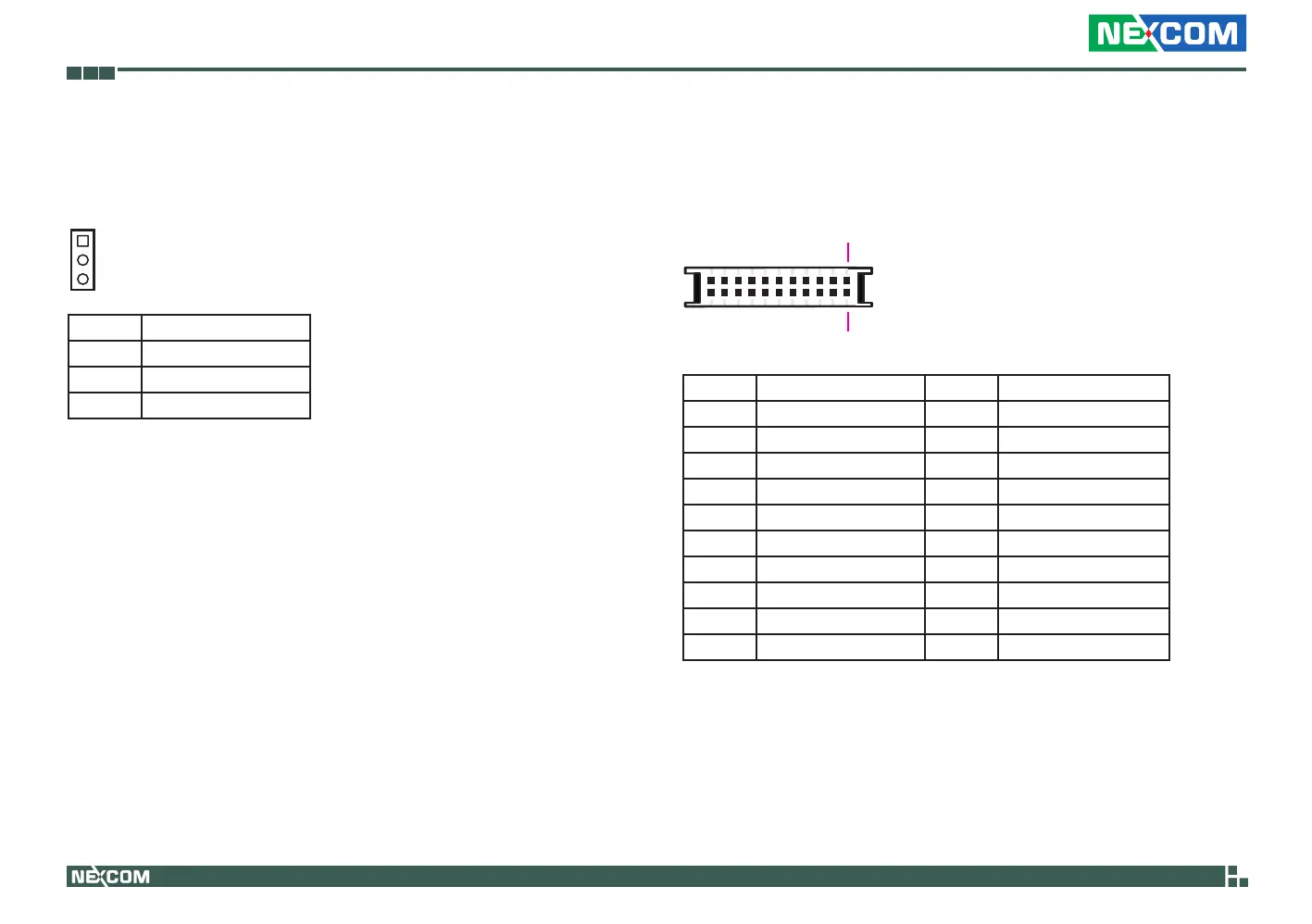

LVDS Power Select
Connector size: 1x3 (2.54mm-M-180)
Connector location: JP1
Pin Definition
1 VCC5
2 PANEL_VDD
3 VCC3
3
1
LVDS Channel A Connector
Connector size: LCD-1.25mm-M-180
Connector location: CN2
2
1
20
19
Pin Definition Pin Definition
1 L_DDC_CLK 2 L_DDC_DATA
3 PANEL_VDD 4 LA_DATAP0
5 LA_DATAP3 6 LA_DATAN0
7 LA_DATAN3 8 PANEL_VDD
9 GND 10 LA_DATAP1
11 LA_CLKP 12 LA_DATAN1
13 LA_CLKN 14 GND
15 GND 16 +12V
17 LA_DATAP2 18 +12V
19 LA_DATAN2 20 GND
MH1
MH2
