GEO S12 HARDWARE SETUP PROCEDURE
System Manual GEOS12 LS18 Page 47 / 95

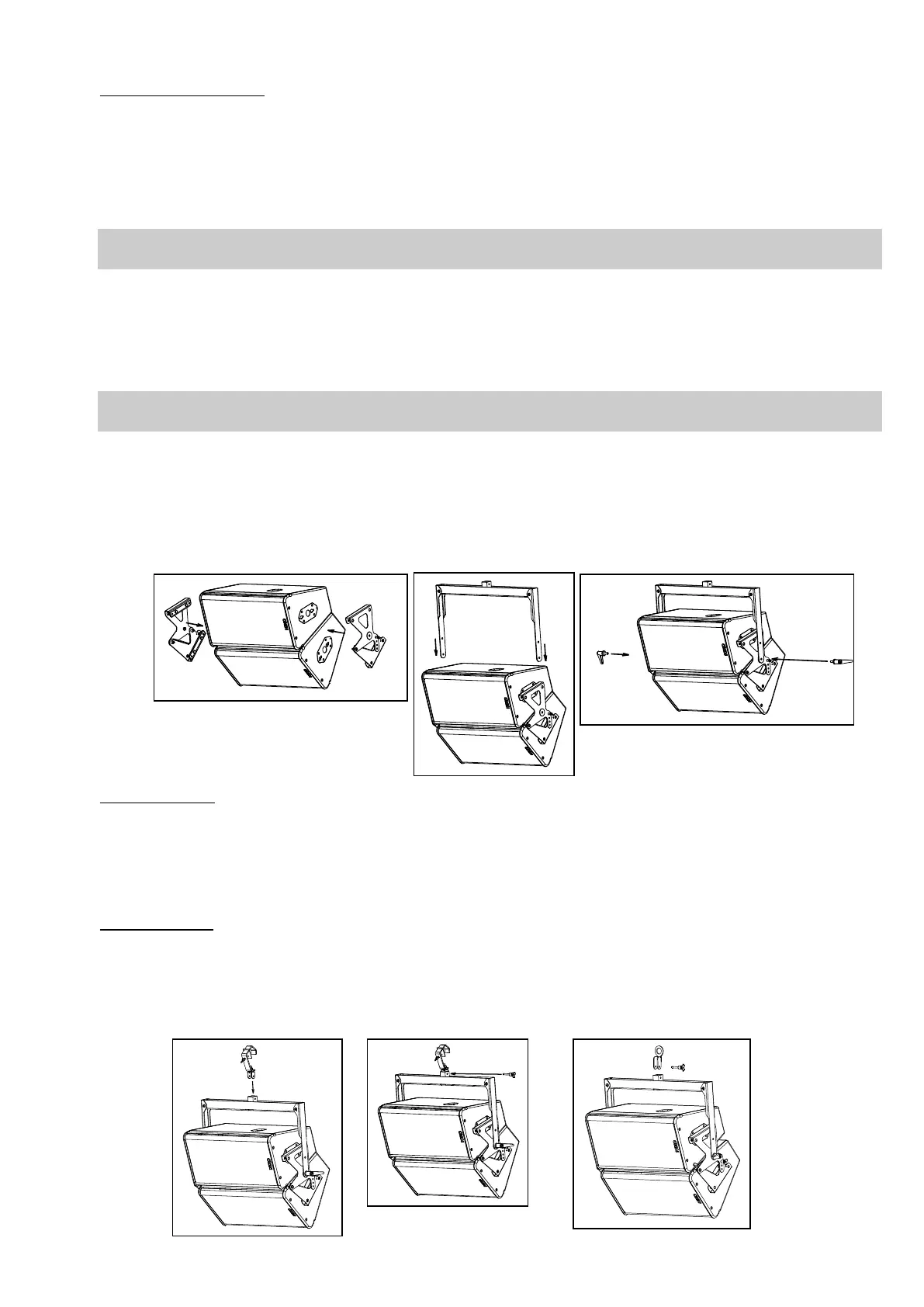

6.4.6 Two GEO S12 vertically
Required items
- 1 x “U” Bracket for two GEO S12s (GPT-PSBRK)
- 1 x Lifting Ring (VNT-XHBRK)
- Or 1 x Truss hook (VNT-TCBRK)
IMPORTANT
Ensure that suspension point is strong enough to hold two GEO S12s weight.
Procedure
- Slide GPT-PSBRK side plates into GEO S12s connecting plate oblong holes
- Lock safety pins into GEO S12s connecting plate
IMPORTANT
Ensure that safety pins are properly locked into GEO S12s connecting panels.
- Adjust inter-cabinet angle and lock to required angle value with 8x20 quick release pins
- Position “U” bracket over these side plates, align centre holes
- Insert adjustment handles, adjust vertical angle and tight the handles to prevent GEO S12s from rotating around “U” bracket
Cable suspension:
- Connect lifting ring VNT-XHBRK to “U” bracket by inserting 8x45 quick release pin dedicated holes
- Ensure lifting ring is properly locked to “U” bracket
- Connect assembly to suspension point with sling and shackle (not provided)
Truss suspension:
- Connect truss hook VNT-TCBRK to “U” bracket by inserting 8x45 quick release pin in dedicated holes
- Ensure truss hook is properly locked to “U” bracket
- Lift and position assembly, lock hook on truss suspension point and secure with hook cable
