Nexo GEO S12 Series System Manual

GEO S12 GENERAL SET-UP INSTRUCTIONS
Page 8 / 95 System Manual GEOS12 LS18
2 GEO S12 GENERAL SET-UP INSTRUCTIONS

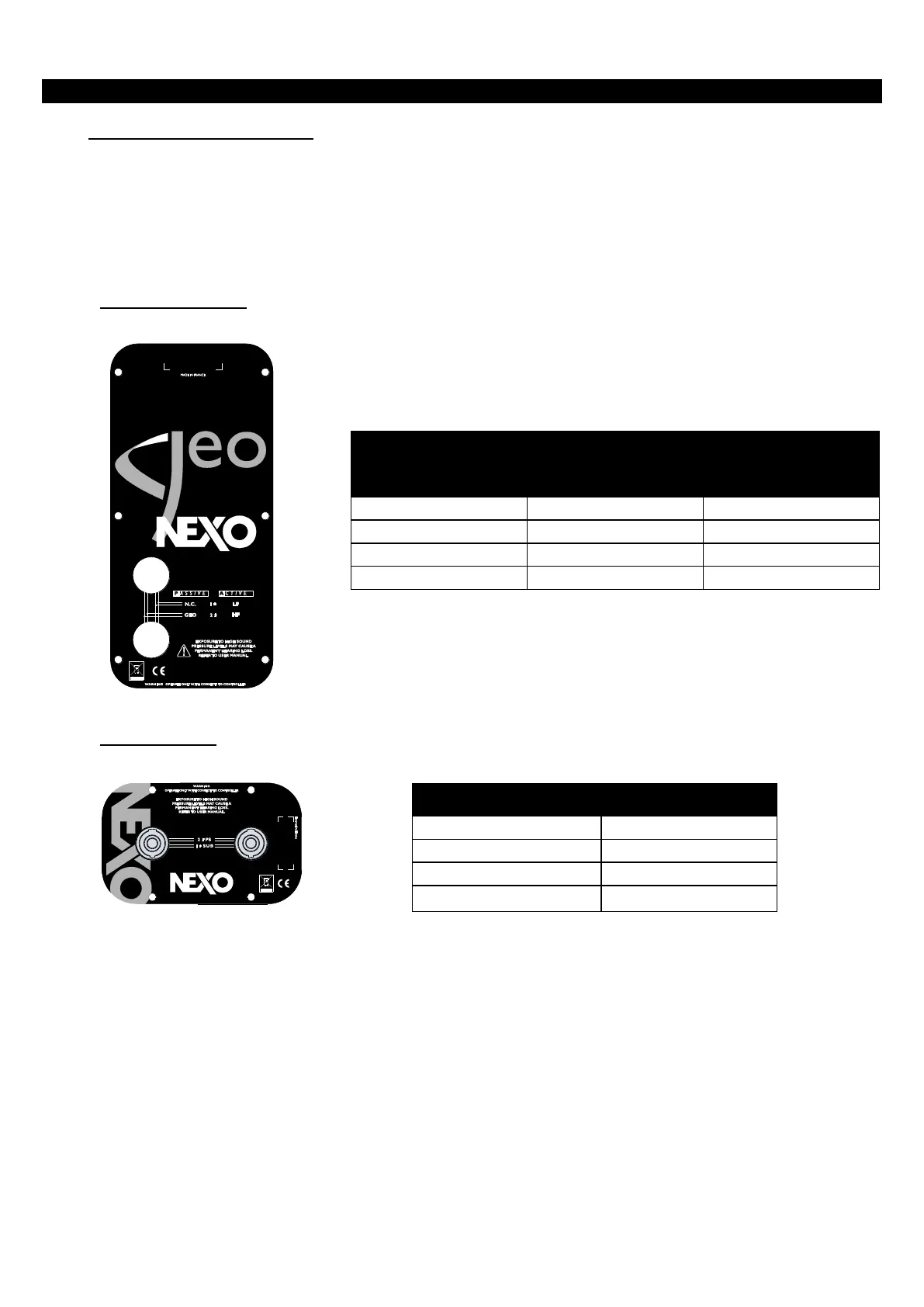

2.1 GEO S12 and LS18 connections
GEO S12 and LS18 are connected with Speakon NL4FC plugs (not supplied). A wiring diagram is printed on the connection
panel located on the back of each cabinet. The 4 pins of the Speakon sockets identified in / out are connected in parallel within
the enclosure.
Either connector can be used to connect amplifier or to link to an additional GEO S12 cabinet or to link to an optional LS18 (if
present). Therefore, a single 4-conductor cable can connect two amplifier channels to various GEO S12s and/or LS18
subwoofers.
2.1.1 GEO S12 connectors
2.1.2 LS18 connectors
Speakon Connector
S1210 & S1230
Passive Mode
Active Mode
1(-)
Through
GEO S12 LF (-)
1(+)
Through
GEO S12 LF (+)
2(-)
GEO S12 (-)
GEO S12 HF (-)
2(+)
GEO S12 (+)
GEO S12 HF (+)
Speakon Connector
LS18
1(-)
LS18 (-)
1(+)
LS18 (+)
2(-)
Through
2(+)

Through
