GEO S12 HARDWARE SETUP PROCEDURE
Page 44 / 95 System Manual GEOS12 LS18
6.4.5 Two GEO S12 on wind-up stand
Required items
- 1 x “U” Bracket for two GEO S12 (GPT-PSBRK)
- 1 x Wind Up stand diameter 35mm (Eurotruss ES160 or equivalent)
IMPORTANT
Wind Up stand must be rated for assembly weight (80kg rated load min).
Wind Up stand must always be installed on a horizontal surface.
Stand height and footprint must be defined to prevent assembly from collapsing.
Ensure that public is not allowed within a safety area which radius is equal or higher than assembly height.
Procedure

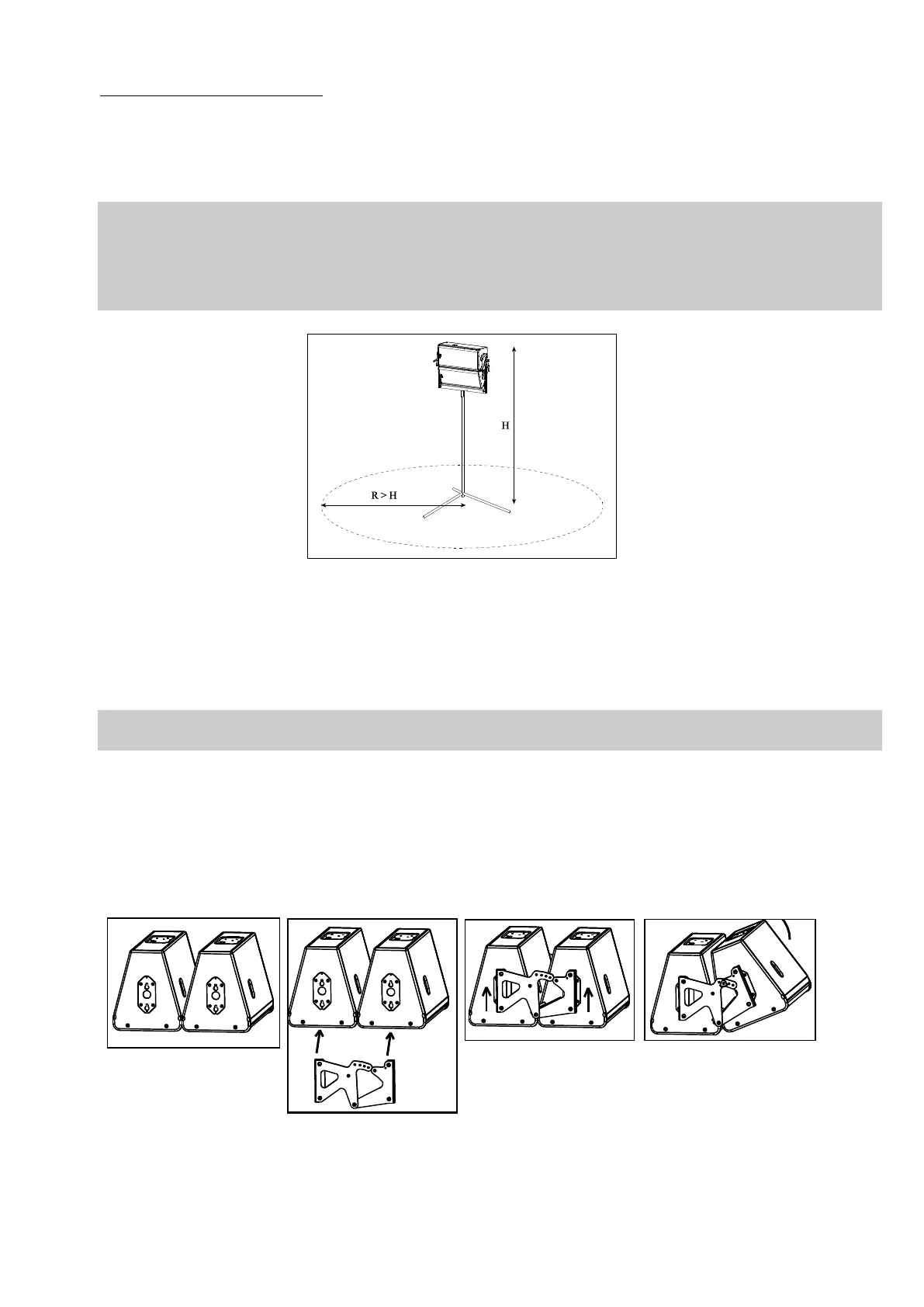

- Set the 2 GEO S12 next to each other front grid to the floor
- Slide GPT-PSBRK side plates into GEO S12s connecting plate oblong holes
- Lock safety pins into GEO S12s connecting plate
IMPORTANT
Ensure that safety pins are properly locked into GEO S12s connecting panels.
- Adjust inter-cabinet angle and lock to required angle value with 8x20quick release pins
- Position “U” bracket over these side plates, align centre holes
- Insert adjustment handles, adjust vertical angle and tight the handles to prevent GEO S12s from rotating around “U” bracket
- Lift assembly on Wind Up stand
