PS SERIES HARDWARE SETUP PROCEDURE
Page 42 / 109 System Manual PSR2 Series
6.3.4 PS15R2 mounted on a ceiling (horizontal)
Required items
- 2 x VNI-LBRK (allows cable suspension, holes for cable suspension are 10mm diameter)
- 4 slings and corresponding shackles (not provided)
IMPORTANT
Ensure that the ceiling is strong enough to hold 4 times PS weight and that the cable suspension system
required to install the cabinet under the ceiling is properly dimensioned.
Procedure
- Remove the four TORX screws holding connector plates on both sides of PS15R2
- Remove the connector plates from PS15R2
- Fill each screw hole with Loctite 243 or equivalent
- Position external plates from VNI-LBRK kits and secure them using the shoulder screws supplied with these kits
- Position “L” brackets from VNI-LBRK kits and secure them to the cabinet using the 4 remaining shoulder screws supplied
with these kits
- Slings and shackles (not provided) are required to secure the speaker under the ceiling

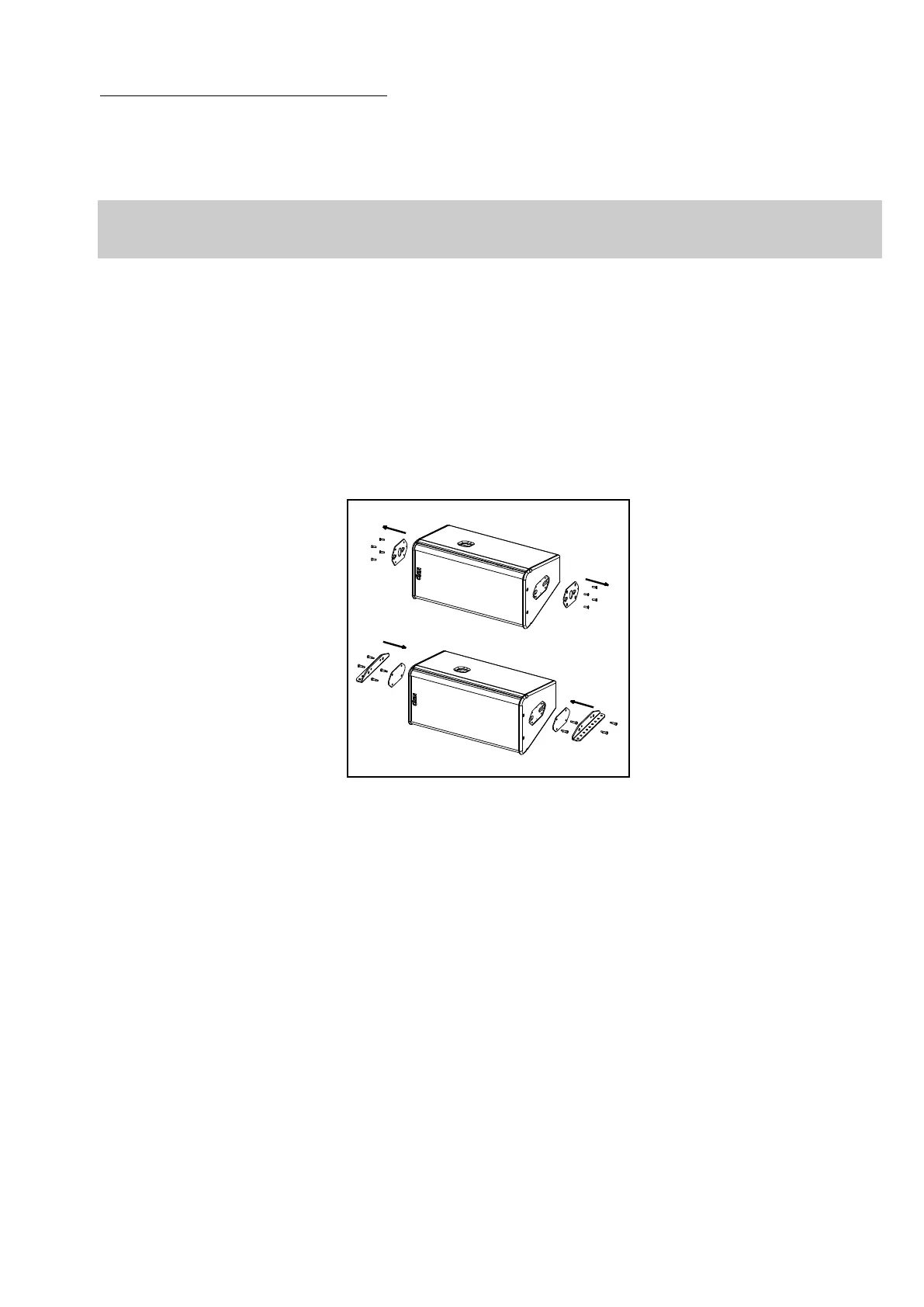

CABLE SUSPENSION MOUNTING PROCEDURE FOR PS15R2
