PS SERIES HARDWARE SETUP PROCEDURE
System Manual PSR2 Series Page 47 / 109
6.3.8 LS18 and PS15R2 vertical array cable mounted on a ceiling
Required items
- As in 2 sections above, plus
- 2 x VNI-LBRK (allows cable suspension for bumper, holes for cable suspension are 10mm diameter)
- 4 x slings and shackles (not provided)
IMPORTANT
Ensure that the ceiling is strong enough to hold 4 times LS18 and PS15R2 cluster weight and that the
cables suspension system required to fix the bumper under the ceiling is properly dimensioned.
Procedure

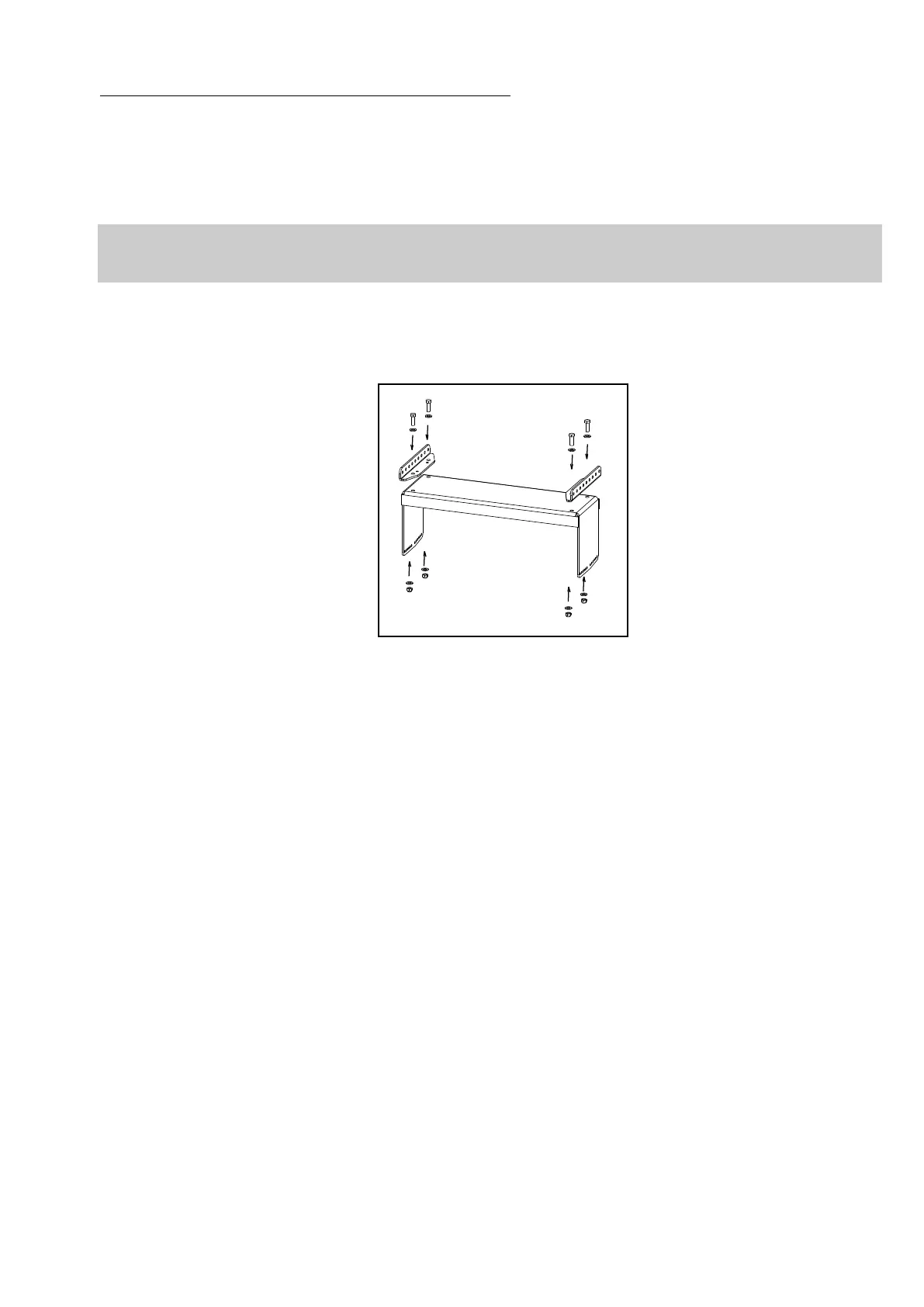

- Connect the bumper and the two “L” brackets using the screws, washers and bolts provided in the VNI-LBRK kit
- Proceed as in preceding sections
- 4 slings and 4 shackles (not provided) are required to secure the cluster under the ceiling
