PS SERIES HARDWARE SETUP PROCEDURE
Page 54 / 109 System Manual PSR2 Series
6.4.5 LS18 flown vertically
Required items
- 1 x Bumper (GPT-BUMPER)
- M x pairs of LS rigging plates (LST-XBOW) for M x LS18 cabinets
- 4 x M Quick release pins (VXT-BL820) for M x LS18 cabinets
- 1 hoist (not provided)
IMPORTANT
Maximum LS18 quantity for flown vertical cluster is 6 (and eventually less)
Please check NS-1 for mechanical Safety Working Load computations.
IMPORTANT
Please check configuration in NS-1 for proper motor hoist rating
Procedure

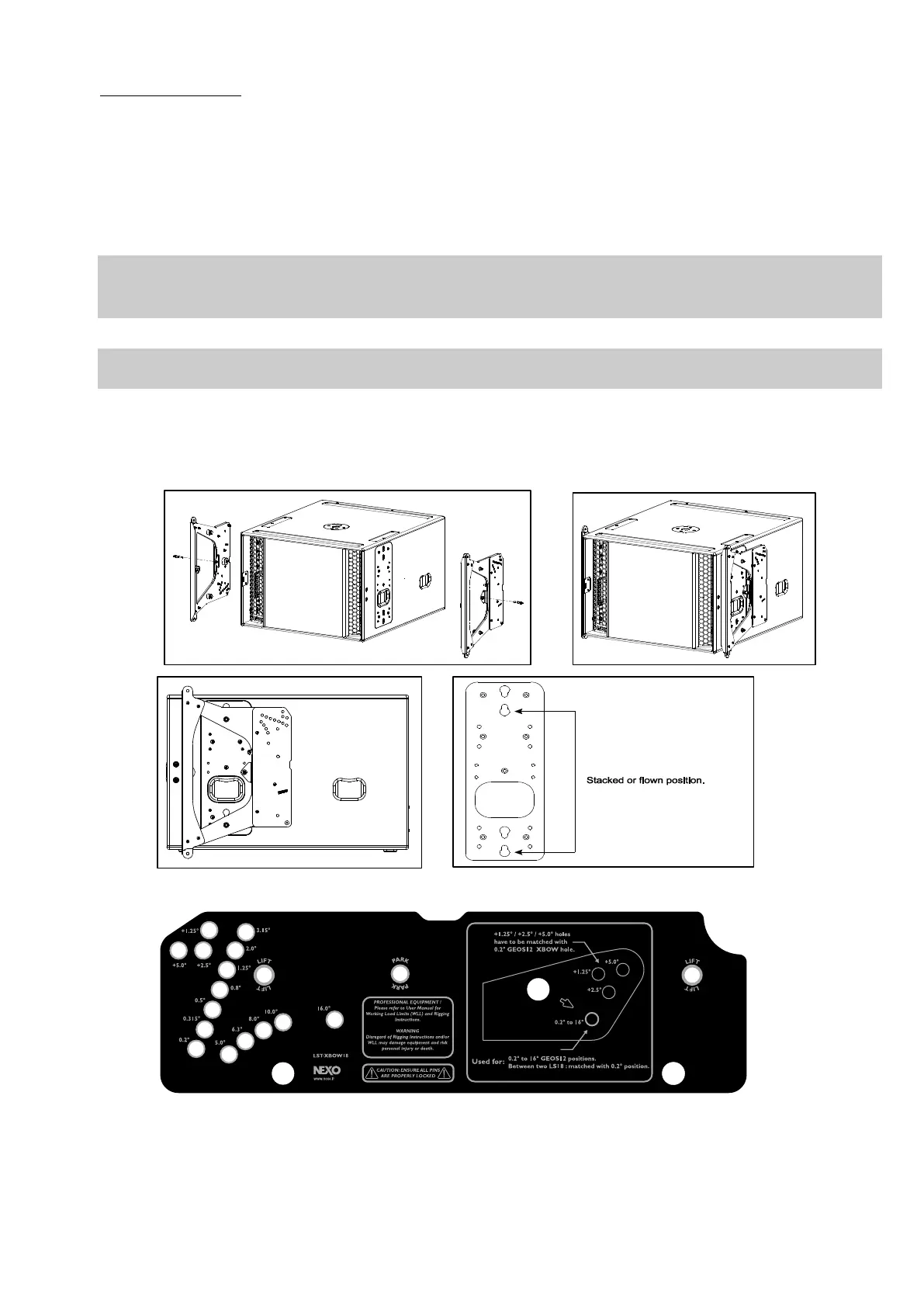

- Insert LST-XBOW into connecting plates of both sides of LS18s
LS18 XBOW ANGLE SETTINGS PLATE
