PS SERIES HARDWARE SETUP PROCEDURE
System Manual PSR2 Series Page 43 / 109
6.3.5 PS and LS600 wall suspension (vertical)
Required items
- 1 x VNI-WS(8/10/15)
- 4 x 10mm diameter screws (not provided)
IMPORTANT
Ensure that the wall is strong enough to hold 4 times PS or LS600 weight and that the four screws 10mm
diameter and corresponding plugs are properly dimensioned.
Procedure
- Remove the 2 rear screws on the upper side of the PS or LS600
- Fill each screw hole with Loctite 243 or equivalent
- Connect the suspension plate to the connector plate of PSR2 or LS600 or upper side of PS8 by using the screws provided
with the VNI-WS kit
- Position the srews in the oblong hole so that required vertical angle is obtained (no tilt with LS600)
- Secure the screws
- Suspend and secure the cabinet to the wall suspension
- Adjust horizontal angle

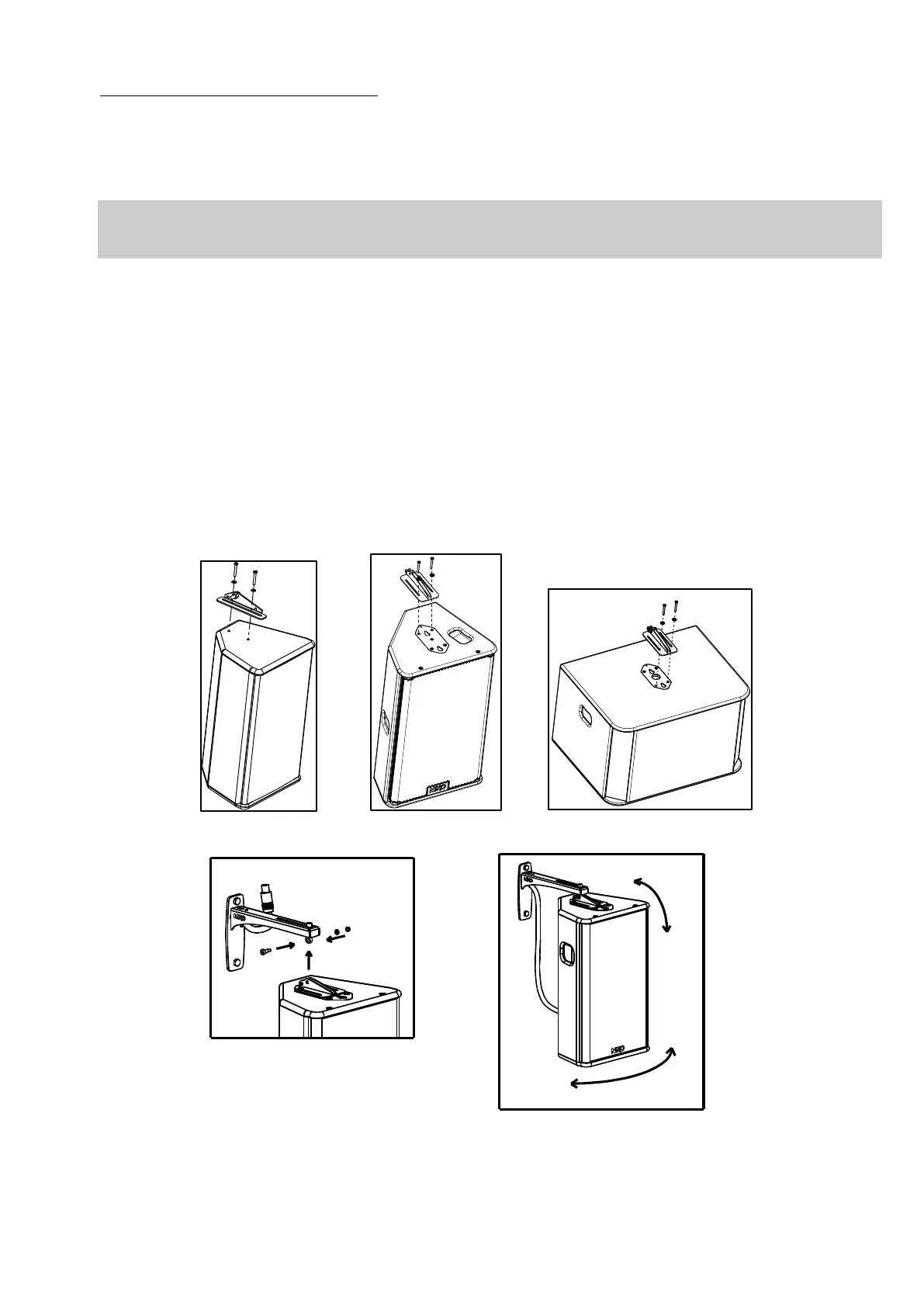

WALL SUSPENSION PROCEDURE FOR VERTICAL INSTALLATION
