PS SERIES HARDWARE SETUP PROCEDURE
Page 44 / 109 System Manual PSR2 Series
6.3.6 PS8/PS10R2 wall suspension (horizontal)
Required items
- 1 x VNI-WS(8/10)
- 1 x VNI-UBRK(8/10)
- 4 x 10mm diameter screws (not provided)
IMPORTANT
Ensure that the wall is strong enough to hold 4 times PS weight and that the four screws 10mm diameter
and corresponding plugs are properly dimensioned.
Procedure
- Install the "U" bracket as described in section 6.3.2
- Connect the "U" bracket to the connector plate by using the screws provided with the VNI-WS kit
- Secure the screws
- Suspend and secure the cabinet to the wall suspension
- Adjust horizontal angle

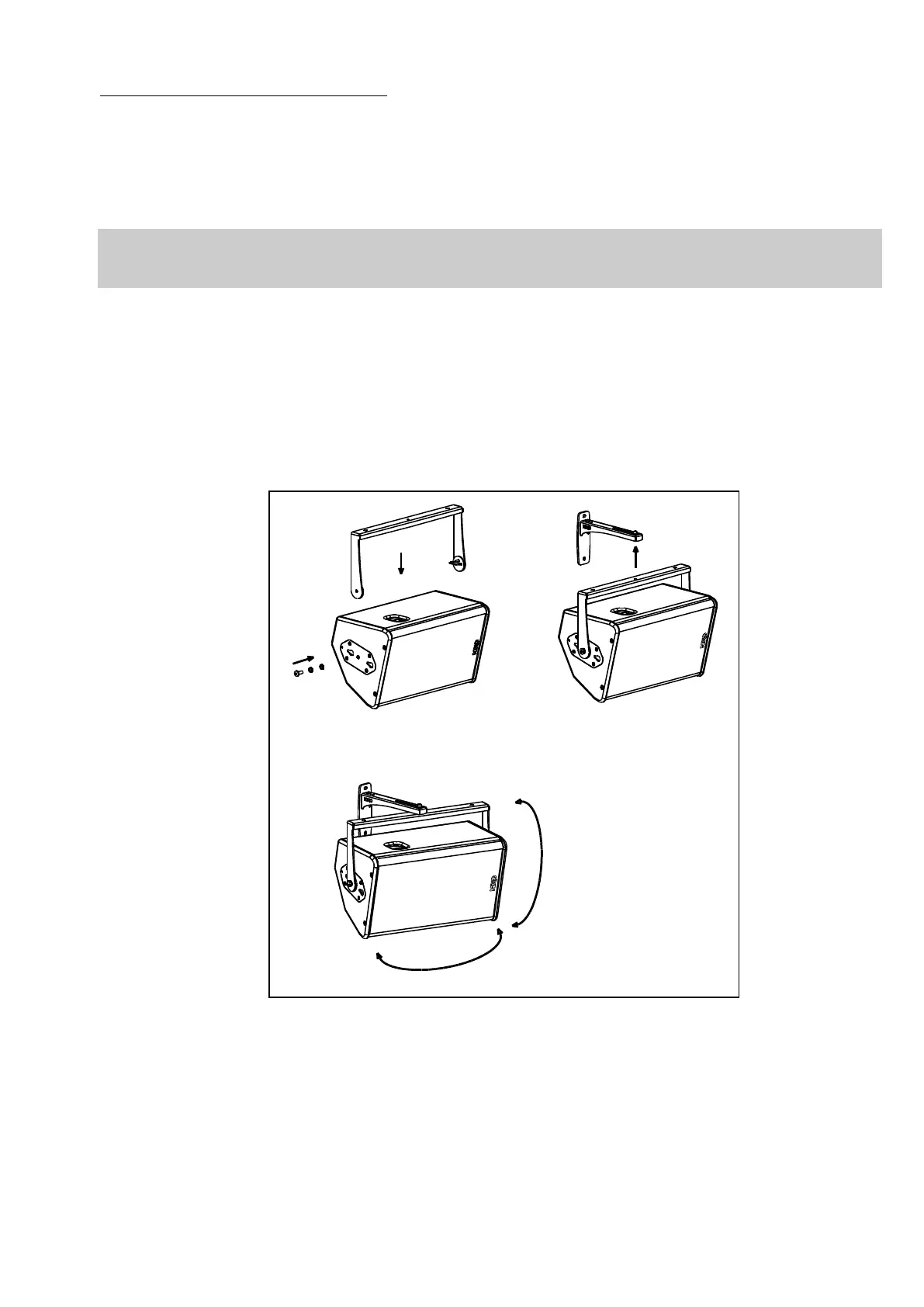

WALL SUSPENSION PROCEDURE FOR HORIZONTAL INSTALLATION
