Nexo PSR2 Series User Manual

PS AND LS GENERAL SET-UP INSTRUCTIONS
Page 8 / 109 System Manual PSR2 Series

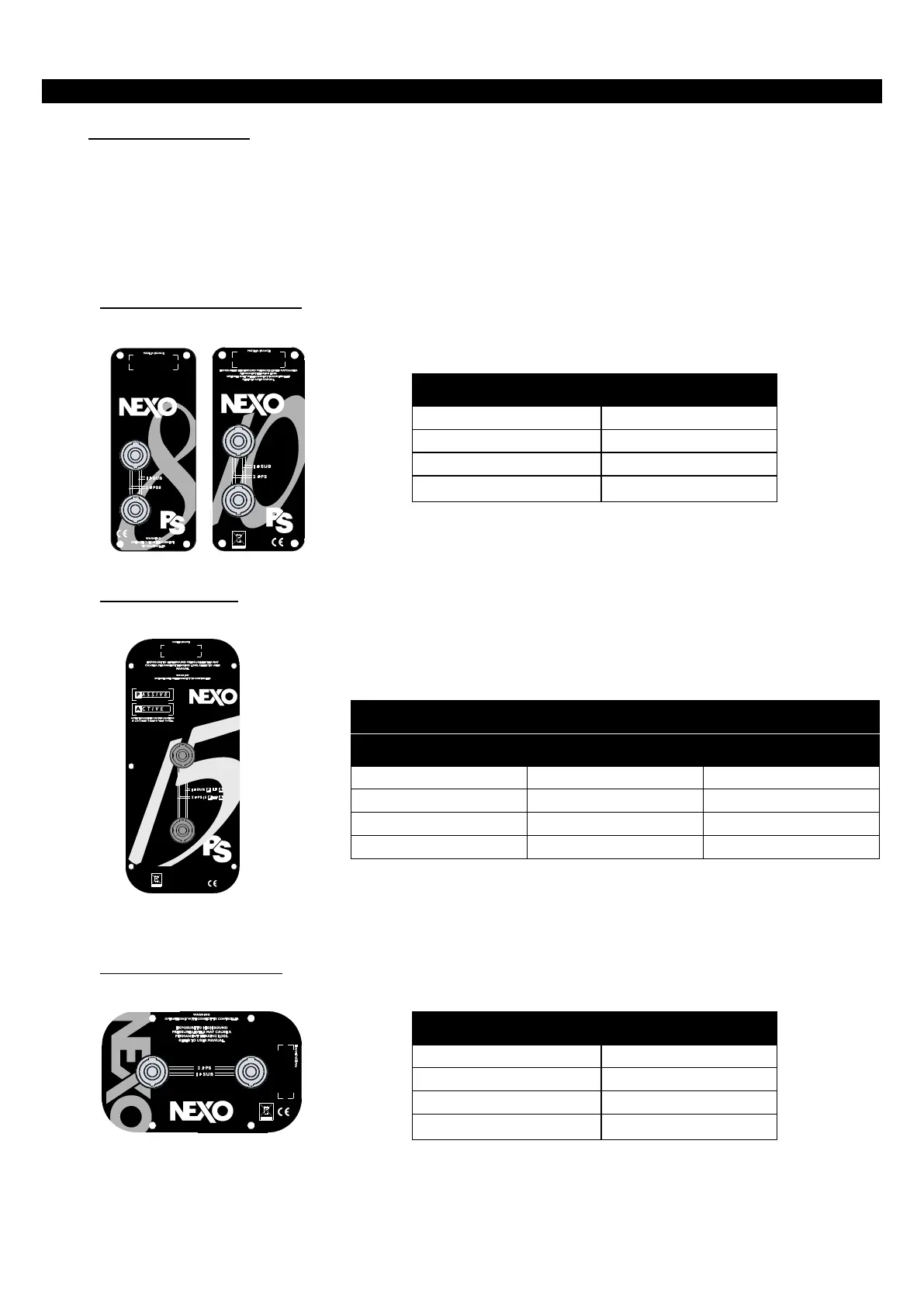

2 PS AND LS GENERAL SETUP INSTRUCTIONS
2.1 PS and LS connections
PS speakers and LS subwoofers are connected with Speakon NL4FC plugs (not supplied). A wiring diagram is printed on the
connection panel located on the back of each cabinet. The 4 pins of the Speakon sockets identified in / out are connected in
parallel within the enclosure.
Either connector can be used to connect amplifier or to link to an additional PS cabinet or to link to an optional LS subwoofer (if
present). Therefore, a single 4-conductor cable can connect two amplifier channels to various PS speakers and/or LS
subwoofers.
2.1.1 PS8 and PS10R2 connectors
2.1.2 PS15R2 connectors
2.1.3 LS subwoofers connectors
Speakon Connector
PS8/PS10R2
1(-)
PS8/PS10R2 (-)
1(+)
PS8/PS10R2 (+)
2(-)
Through
2(+)

Through
Speakon Connector
PS15R2
Passive Mode
Active Mode
1(-)
Through
PS15R2 LF (-)
1(+)
Through
PS15R2 LF (+)
2(-)
PS15R2 (-)
PS15R2 HF (-)
2(+)
PS15R2 (+)
PS15R2 HF (+)
Speakon Connector
LS
1(-)
LS (-)
1(+)
LS (+)
2(-)
Through
2(+)

Through
