PS SERIES HARDWARE SETUP PROCEDURE
Page 52 / 109 System Manual PSR2 Series
6.4.4 PS flown horizontally
Required items
- 1 x “U” Bracket for PS speaker (VNT-SSBRK8/10/15)
- 1 x flying adaptor (VNT-ADPT) for PS8
- 1 x Lifting Ring (VNT-XHBRK)
- Or 1 x Truss hook (VNT-TCBRK)
IMPORTANT
Ensure that suspension point is strong enough to hold PS weight
Procedure
- Install the flying bar adaptor by removing the two screws on the upper side of the PS8 and secure it with Loctite 243
IMPORTANT
In order to prevent screws from getting loose from the PS8, use blocking liquid LOCTITE
TM
243 or
equivalent the two screws securing the PS8 flying adaptor.
LOCTITE
TM
243 is available at NEXO or at your local distributor upon request.

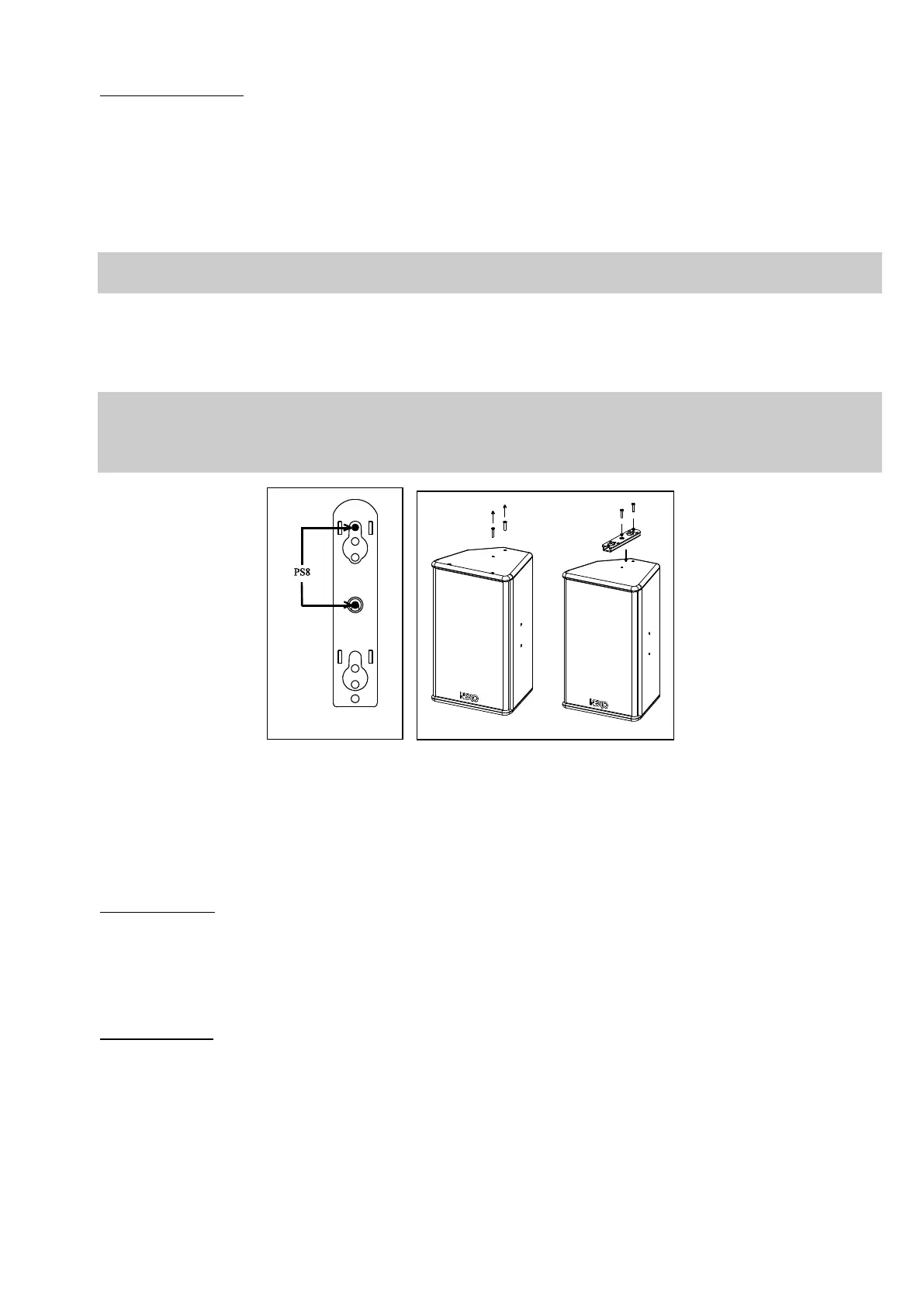

PS8 FLYING ADAPTOR INSTALLATION
- Insert male pole side of bracket into PS cabinet
- Fold the opposite bar of the bracket until it is locked at 90° (a click” from the locker will ensure proper locking)
- Rotate the lever into the connecting panel until it is properly secured
Cable suspension:
- Connect lifting ring VNT-XHBRK to “U” bracket by inserting 8x45 quick release pin dedicated holes
- Ensure lifting ring is properly locked to “U” bracket
- Connect assembly to suspension point with sling and shackle (not provided)
Truss suspension:
- Connect truss hook VNT-TCBRK to “U” bracket by inserting 8x45 quick release pin in dedicated holes
- Ensure truss hook is properly locked to “U” bracket
- Lift and position assembly, lock hook on truss suspension point and secure with hook cable
