PS SERIES HARDWARE SETUP PROCEDURE
System Manual PSR2 Series Page 55 / 109
- Lock safety pins into LS18 connecting plate
IMPORTANT
Ensure that safety pins are properly locked into LS18s connecting panels.

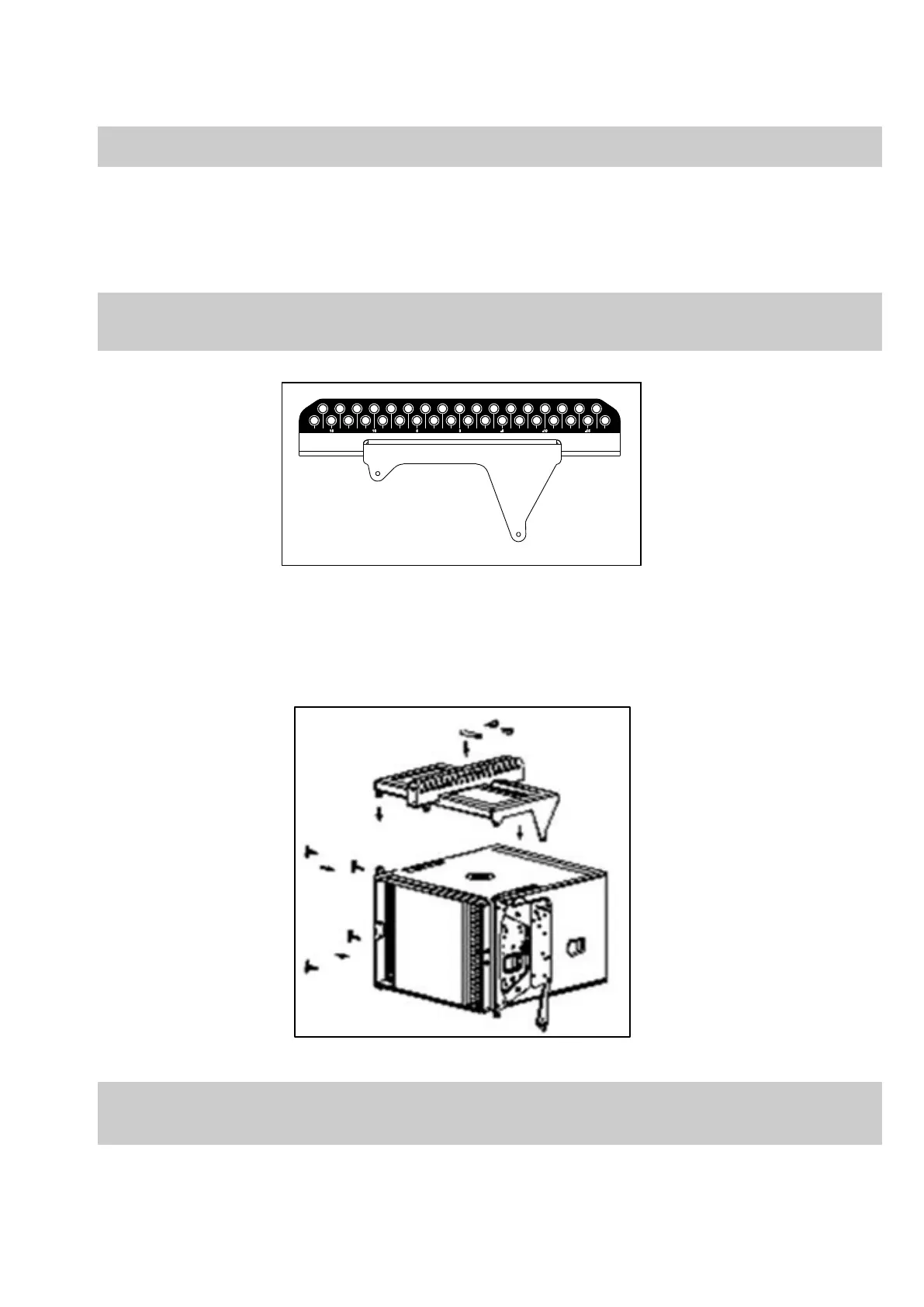

- Connect bumper to first LS18 using “lift” points of XBOWs
- Ensure quick release pins are properly locked
- Insert axis in bumper NS-1 predefined hole and secure it with provided “R” clip
Bumper holes are numbered #-17 to #17, please refer to NS-1 to determine axis position in relation to
bumper angle requirements.
If bumper is flown with 2 hoists, then they should be connected to holes #-17 and #17.
- Connect hoist hook to bumper axis and lift assembly to sufficient height in order to connect a second LS18
- Connect second LS18 with X-Bow front articulation holes and rear link bars and ensure quick release pins are properly
locked
- Repeat above steps for subsequent cabinets
IMPORTANT
Ensure that safety pins are properly locked into LS18s connecting panels.
Ensure that all quick release pins are properly locked into their position.
- Lift cluster to NS-1 defined rigging height, secure cluster horizontally to prevent it from rotating
- Secure bumper with secondary safety steel
