PS SERIES HARDWARE SETUP PROCEDURE
Page 46 / 109 System Manual PSR2 Series

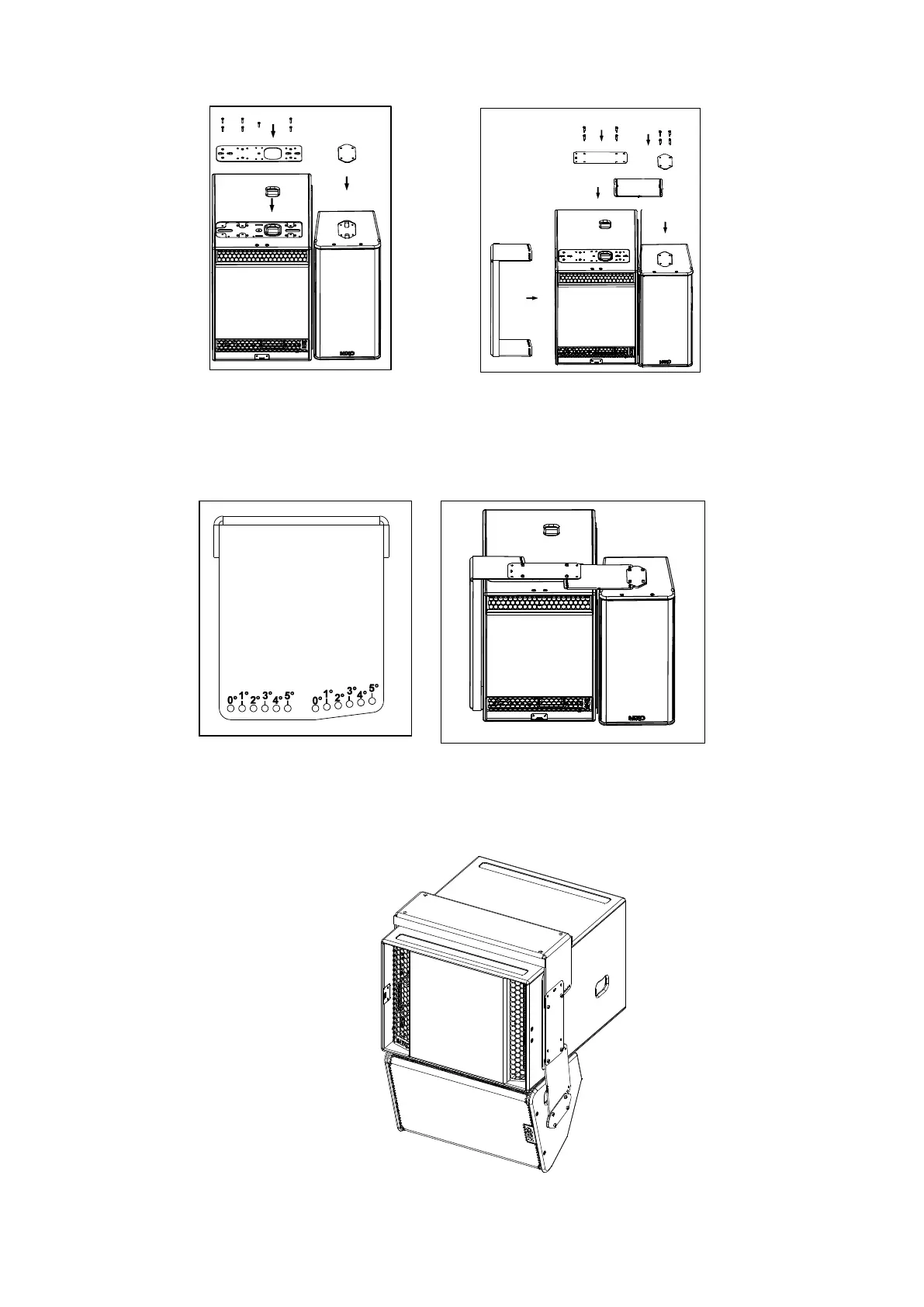

- Screw all shoulder screws so that all plates and cabinets are tightened together
- Flip the cluster upside down to access connector plates located on the down side
- Repeat all above steps
- Position the GPI-BUMPER bumper to required angle position and use the four shoulder screws to connect it the bumper to
the top cabinet
- Flip cluster by 90° so that it is ready to be positioned under the ceiling
- Four screws 12mm diameter (not provided) are required to secure the bumper under the ceiling
