PS SERIES HARDWARE SETUP PROCEDURE
Page 58 / 109 System Manual PSR2 Series

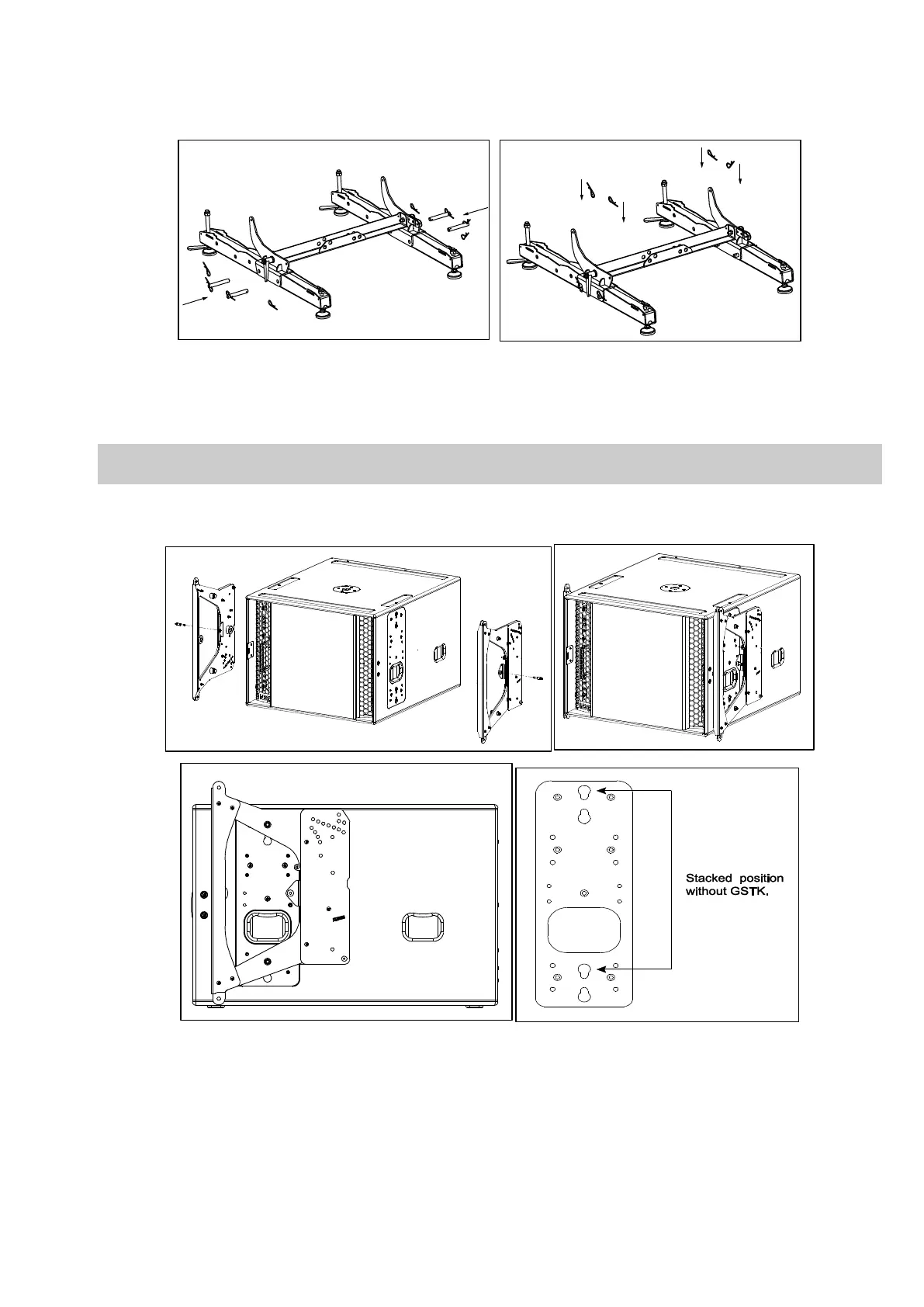

- Connect the reinforcement bar to the supporting beams according to required tilt angle configuration using 2 axis per side;
secure the axis with provided “R” clips
- Insert LST-XBOW into connecting plates of LS18s
- Lock safety pins into LS18s connecting plate
IMPORTANT
Ensure that safety pins are properly locked into LS18s connecting panels.
- Connect bottom LS18 to GPT-GSTK Ground stacking device with 4 VXT-BL820 quick release pins
- Connect second LS18 with X-Bow front articulation holes and rear link bars and ensure quick release pins are properly
locked
- Repeat above steps for subsequent cabinets
