Nextav NX-H100 User Manual

13

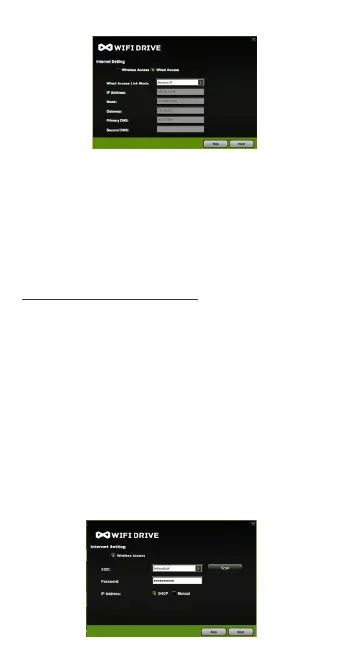

There are two available Internet Access options –
A. Wireless Access. Connecting the WIFI Drive to
another wireless device to have the internet access.
B. Wired Access. Directly connecting the WIFI Drive to
the available port on the back the router.
Selecting the Wireless Access
1. SSID. Enter the SSID name or click on the “Res-
can” button to automatically search for the available
wireless network connections.
2. Password. Enter the correct password to join the
wireless network connection selected.
3. IP Address. Select either DHCP or Manually assign
an IP address
a. By selecting DHCP, the host will provide an IP ad-
dress automatically to connect to the internet
b. By selecting Manual, you have to manually assign
an IP address to connect to the internet

Nextav NX-H100 Specifications

General

Brand	Nextav
Model	NX-H100
Category	DC Drives
Language	English
