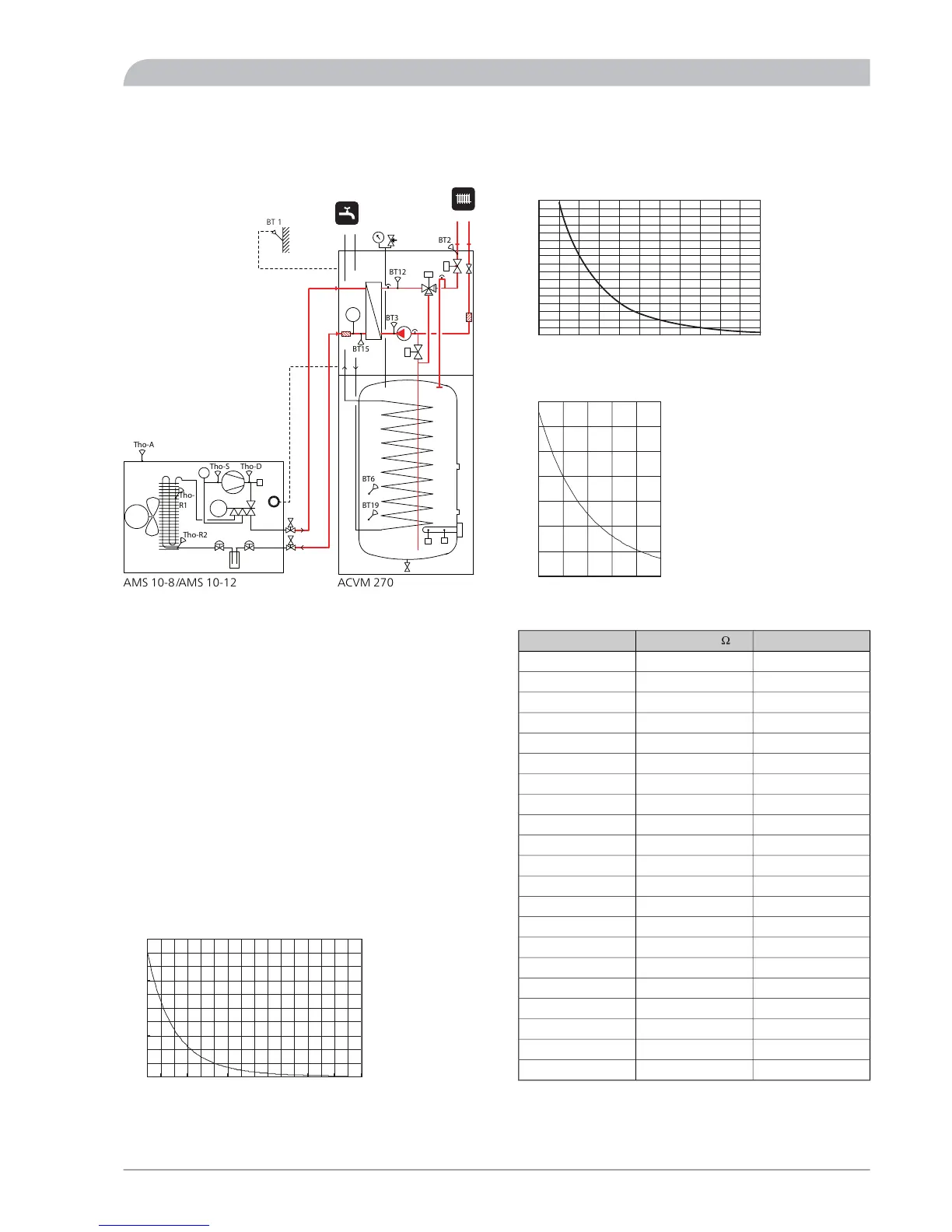

Temperature sensor
Sensor placement
BT 1
BT6
BT15
BT3
BT12
Tho-A
Tho-S
Tho-R2
Tho-
R1
Tho-D
BT2
BT19
ACVM 270AMS 10
AMS10-8/AMS10-12 ACVM270
Temperature sensor, outdoor (external)BT1
Temperature sensor, flow pipeBT2
Temperature sensor, returnBT3
Temperature sensor, hot waterBT6
Temperature sensor, condenser outBT12
Temperature sensor, fluid pipeBT15
Temperature sensor, immersion heaterBT19
Temperature sensor, outdoor airTho-A
Temperature sensor, hot gasTho-D
Temperature sensor, heat exchanger outTho-R1
Temperature sensor, heat exchanger, inTho-R2
Temperature sensor, suction gasTho-S
Data for sensor in AMS 10
Tho-D
0
20
40
60
80
100
120
140
160
180
200
0 20 40 60 80 100 120 140 160
(ºC)
(kΩ)
Tho-S, Tho-R1, Tho-R2
5
10
15
0 20 40 60 80 100
(ºC)
(kΩ)
Tho-A
0
5
10
15
20
25
30
35
0 10 20 30 40 50
(ºC)
(kΩ)
Data for sensor in ACVM 270
Voltage (V)Resistance (k )Temperature (°C)
4.78102.35-40
4.7073.51-35
4.6053.44-30
4.4739.29-25
4.3129.20-20
4.1221.93-15
3.9016.62-10
3.6512.71-5
3.389.810
3.097.625
2.805.9710
2.504.7115
2.223.7520
1.953.0025
1.702.4230
1.471.9635
1.271.6040
1.091.3145
0.941.0850
0.700.74660
0.510.52570
