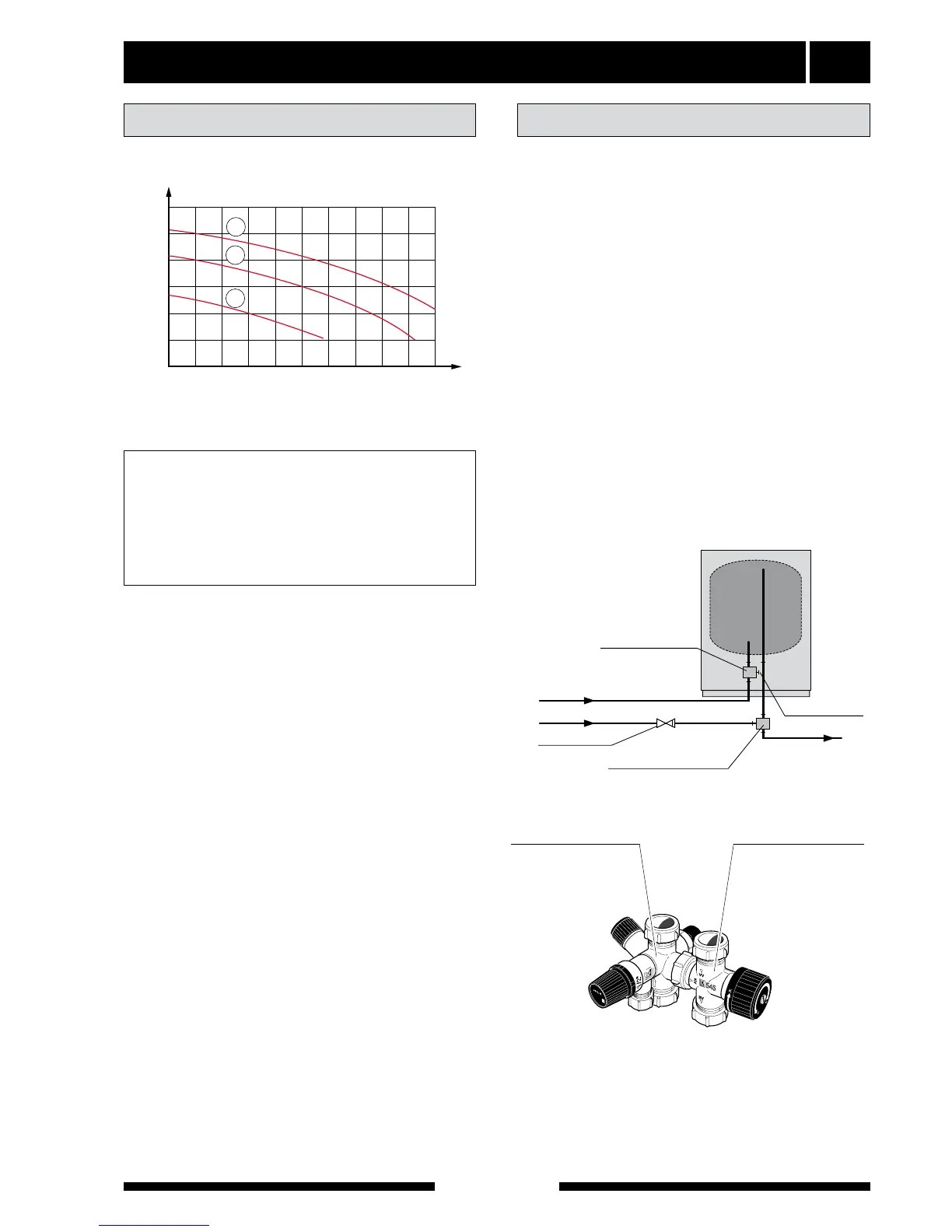

Nibe Fighter 200P - Pump and Pressure Drop Diagram; Tap Water Connection

Pipe connections 11
For the Installer
FIGHTER 200P
Pump and pressure drop diagram
NOTE!
The pipe work must be flushed
before the heat pump is connected,
so that any contaminants do not dam-
age the components parts.
Hot and cold water are connected to pos (74) (hot
water) and (73) (cold water).
The attendant expansion vessel (107) must be con-
nected to the hot water system.
The heat pump should be supplemented with an elec-
tric water heater if a bubble pool or other significant
consumer of hot water is installed.
If the heater is equipped with a valve connection Ø of
15 mm, this should be replaced with an equivalent
(split) Ø 22 mm coupling.
Appropriate heaters are COMPACT 100-300 for floor-
mounting and EMINENT 35-100 for wall-mounting.
1. Split the valve coupling.
2. Attach the valve coupling section to the heater’s
incoming cold water.
3. Attach the mixing valve section to the heater’s out-
going hot water.
4. Plug the split on the valve coupling section.
Tap water connection
