3NIBE VVM 300
User guide
General
Principle of operation
VVM 300 is an electric boiler designed for houses with wa-
ter borne heating. It consists of a double jacketed pressure
vessel, two immersion heaters and advanced controls.
The total water volume is 280 litres, of which 125 litres are
in the double jacketed space and 155 litres in the heater.
The hot water heater has a copper lining to protect against
corrosion. The immersion heaters are in the double jacket.
The immersion heaters have a max output of 6.0 kW with
option of setting lower outputs. The factory setting is
6.0 kW.
The charge pump in VVM 300 is speed controlled and ad-
justs the charge flow automatically.
VVM 300 is equipped with climate controlled automatic
by-passes to maintain the correct temperature for the
heating system. This temperature is determined by the ac-
tual outdoor temperature and selected basic settings.
VVM 300 is designed for connection and communication
with F20XX. Sizes 6, 8 and 11 can be connected. F20XX
and VVM 300 together make up a complete heating plant.
F20XX covers the entire heating and hot water require-
ment until the output requirement of the house exceeds
the specified heat pump output. In the temperature zone
between balance temperature and stop temperature,
F20XX works together with VVM 300. If the outdoor air
temperature drops down to a level below the stop temper-
ature for F20XX, all heating occurs with VVM 300.
Abbreviations
AV Shut-off valve
FG Flow line sensor
RG Return line sensor
RC Control valve
SF Particle filter (Included in F20XX)
SÄV Safety valve
TV Drain valve
UG Outside sensor

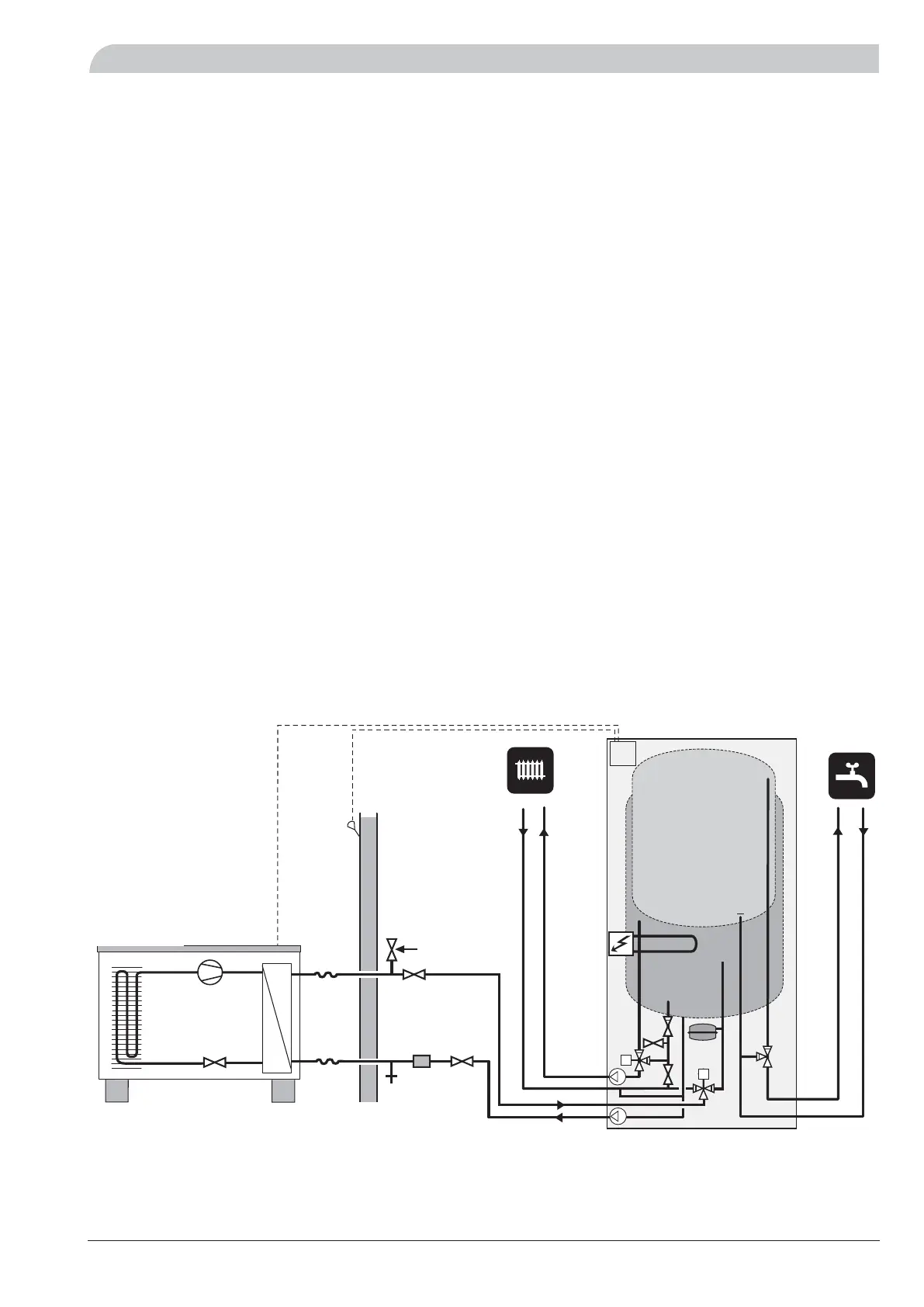

System diagram
The heating medium side and the hot water side must be
fitted with the necessary safety equipment in accordance
with the applicable regulations.
NOTE! This is an outline diagram. Actual installations must
be planned according to applicable standards.
F20XX
VVM 300
AV
AV
SÄV
SF
RC
TV
UG
F20XX
