4.2.5) Programming diagram

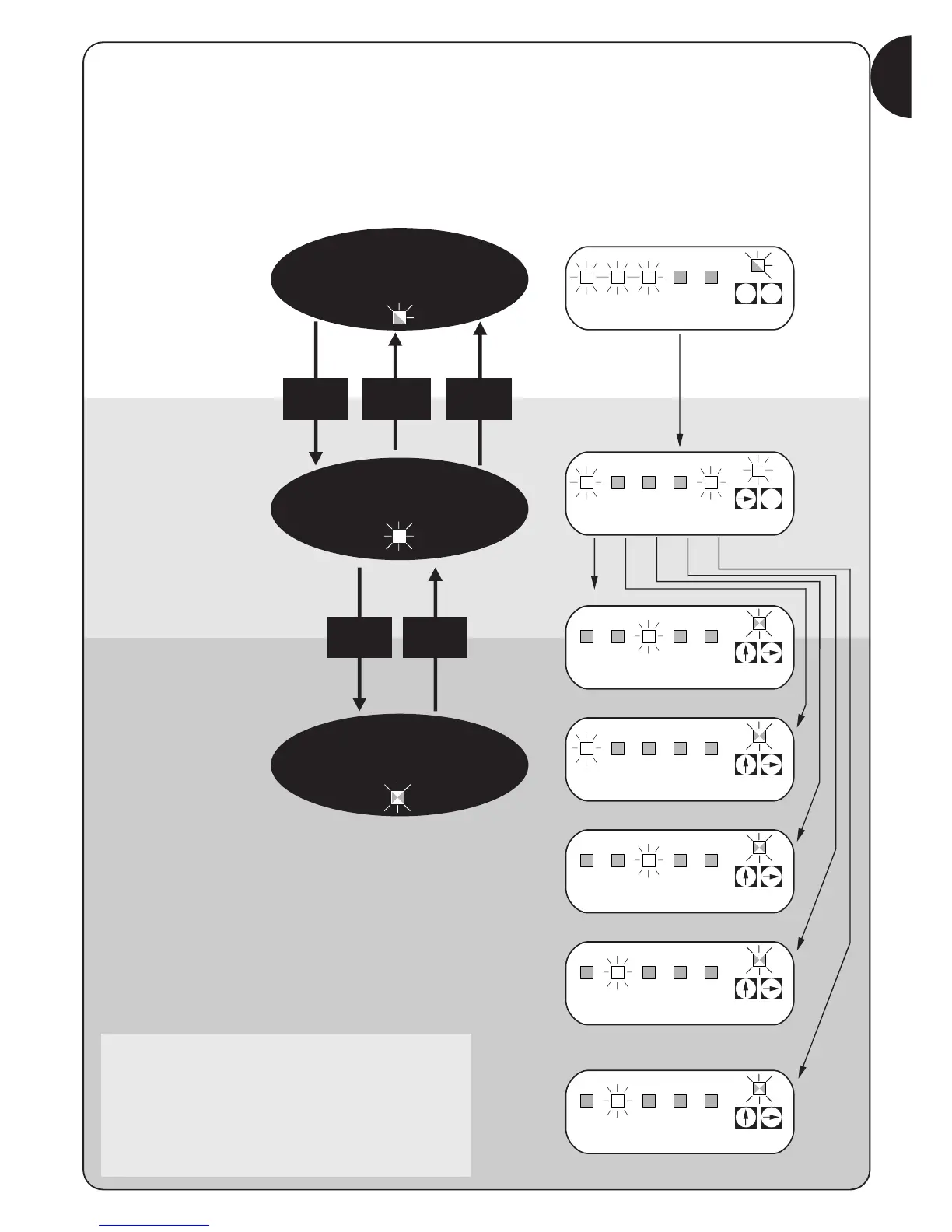

The following figure shows the complete programming diagram of
the functions and relative parameters.
This figure also shows the functions and parameters as they were
initially or following total memory deletion.
(*)
type 1 p.o. type 1 partial open,
only motor 2 moves [N.O.]
type 2 p.o. type 2 partial open
both motors move for 1/2 the work time [N.O.]
only open open
➔ sto ➔ open ➔ stop … … [N.O.]
only close close
➔ stop ➔ close ➔ stop … … [N.O.]
photo 2 used as photo 2 [n.c.]
