Parts of the Camera

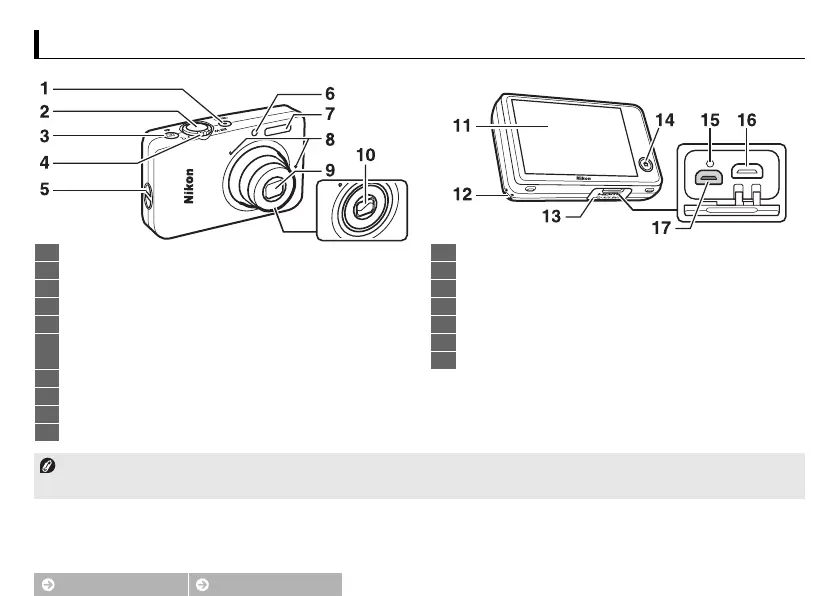

Parts of the Camera
1 Power switch/power-on lamp ............................................. 2 11 Monitor/touch screen ............................................................ 6
2 Shutter-release button........................................................... 9 12 Speaker............................................................................. 36, 46
3 c (playback) button...........................................................35 13 Connector cover ......................................................... 2, 53, 59
4 Zoom control...............................................................9, 39, 40 14 HOME button ........................................................................... 7
5 Eyelet for camera strap ..........................................................1 15 Reset button.................................................................... 80, 86
6 Self-timer lamp ......................................................................19
AF-assist illuminator .............................................................13
16 HDMI micro connector (Type D)........................................59
17 USB and audio/video connector ..................... 2, 53, 54, 59
7 Flash..........................................................................................20
8 Microphone (stereo).............................................................15
9 Lens
10 Lens cover
To turn the camera on or off, press the power switch. If the camera is off, pressing and holding the c button will turn the camera
on and start playback without extending the lens.
