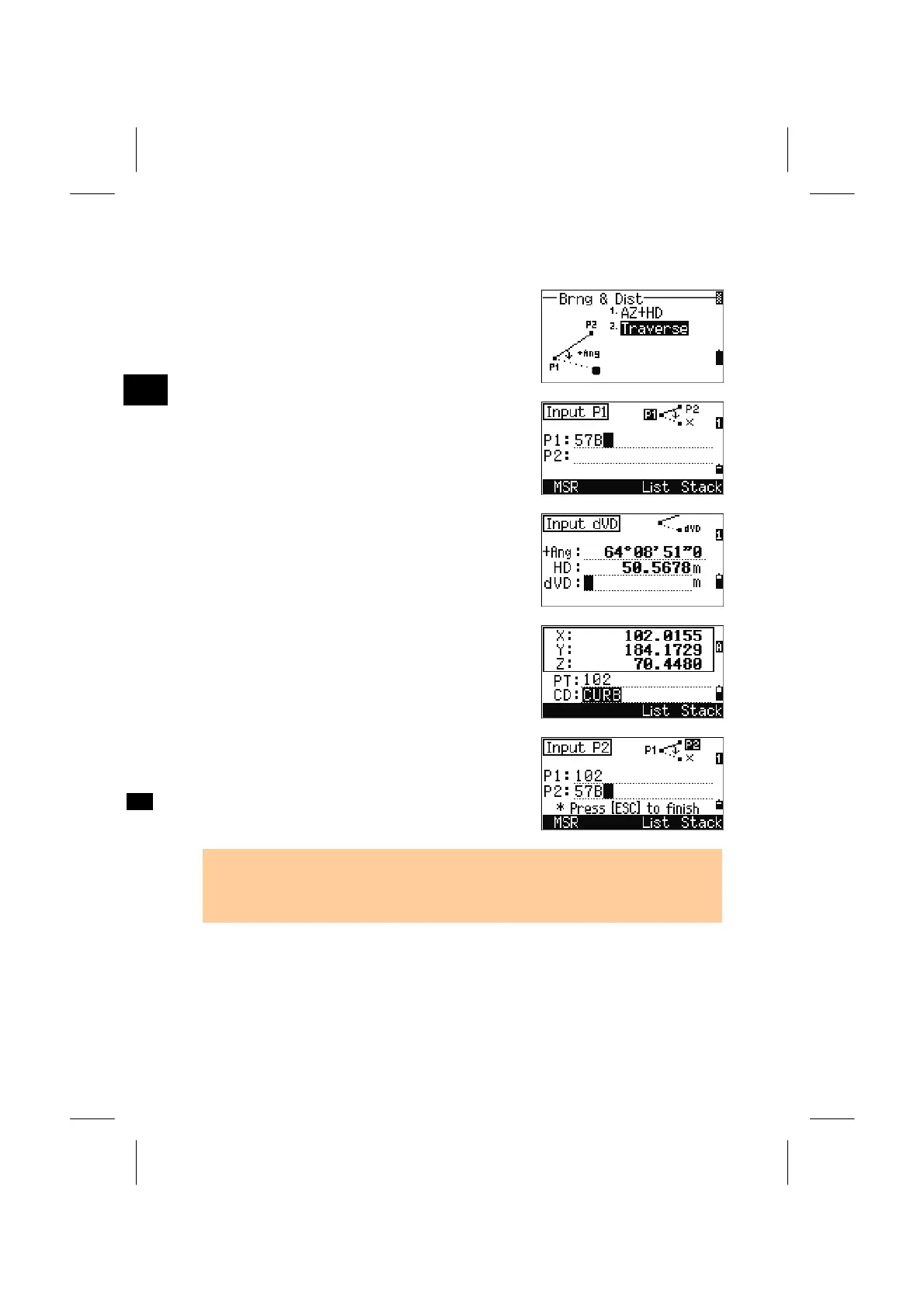

2-2-2. Traverse (2Pt& +Ang input)
“Traverse” function calculates a new point based on
the two defined points and angle, horizontal and
vertical distances from the line defined by those two
points.
3
MENU: 2. Cogo
Input P1 and P2 by inputting point names or taking
measurements to targets.
Enter the plus-minus angle, horizontal and vertical
distances from the baseline defined by P1-P2.
If the “dVD” is left blank, it is assumed to be
0.0000.
When the [ENT] key is pressed on “dVD”, a new
point is calculated. The PT is defaulted to the “Last
recorded PT+1”. Press [ENT] to record the new
point.
After recording a new point, it returns to the point
input screen. P1(base PT) is defaulted to the
previously recorded PT and P2 is to the previous P1.
• In this system, you can continuously calculate a new point by inputting +Ang, HD
and dVD from the previous bearing line. It is convenient when inputting Traverse
points.
3-93
