Nikon DTM-522 - Pt Reference Plane (S-Pln) Measuring Distance and Offset Values on the Slope

6. 3-Pt Reference Plane (S-Pln)
Measuring Distance and Offset Values on the Slope
Stn
P1
(X
1
,Y
1
,Z
1
)
a
P2
(X
2
,Y
2
,Z
2
)
b
Targe t
(X,Y,Z)
P3
(X
3
,Y
3
,Z
3
)
3
PRG: 6. S-PL
N

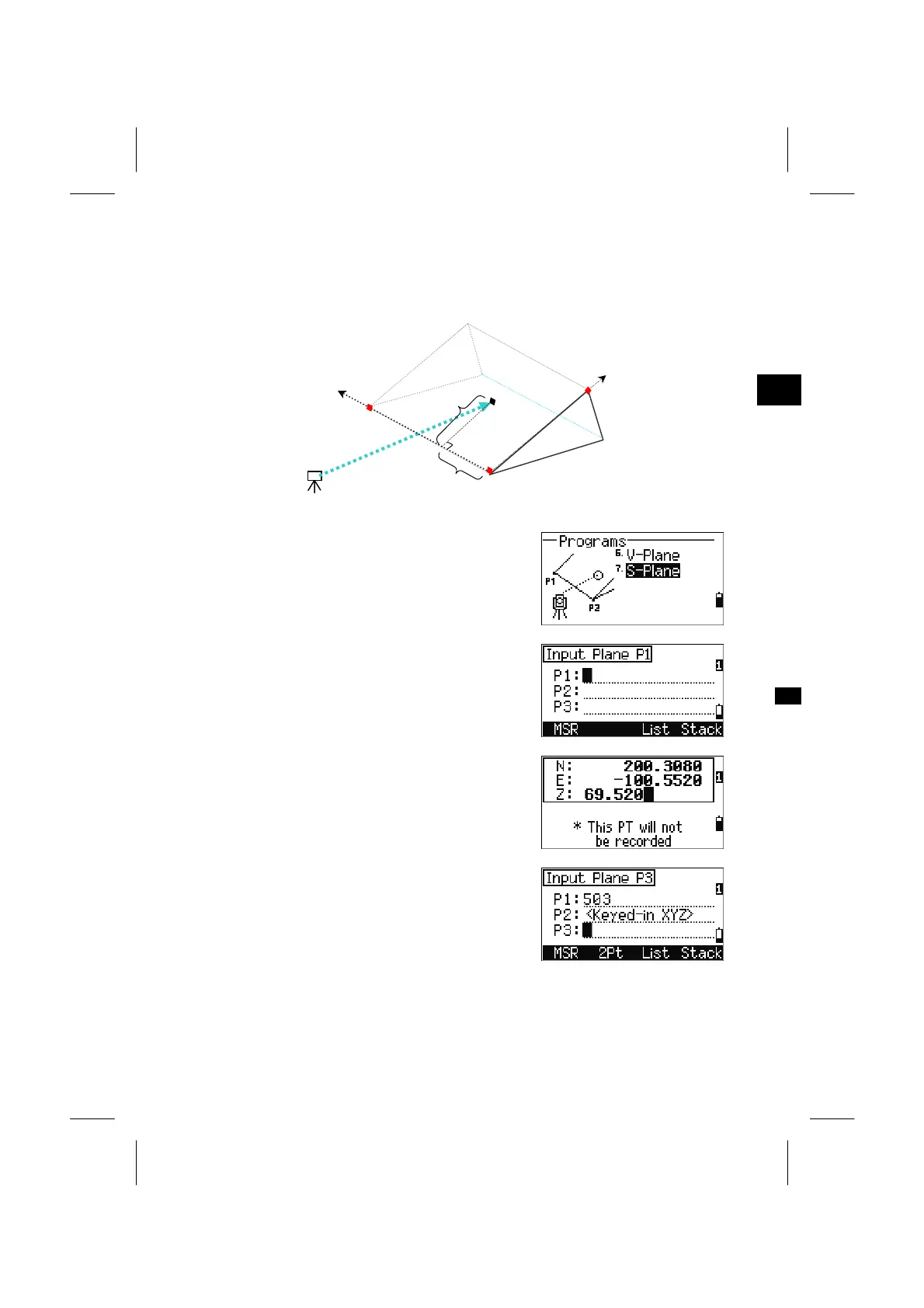

Press the [7] key on the PRG menu to enter the 3-Pt
Reference Plane function.
Input three points to define the slope plane. Direct
measurement of the points is available by the
[MSR] softkey.
When the [ENT] key is pressed on a blank field, an
input temporary coordinate (without recording)
screen is shown.
After inputting the temporary coordinate,
<Keyed-in XYZ> is displayed instead of PT name.
