Chapter 4 Assembly
99
5
Attaching the dia pillar illuminator
Attach the dia pillar illuminator to the microscope base.
The TI series microscopes can be used with two types of dia pillar illuminators (100W and 30W).
(1) Attaching the TI-DH Dia Pillar Illuminator 100W

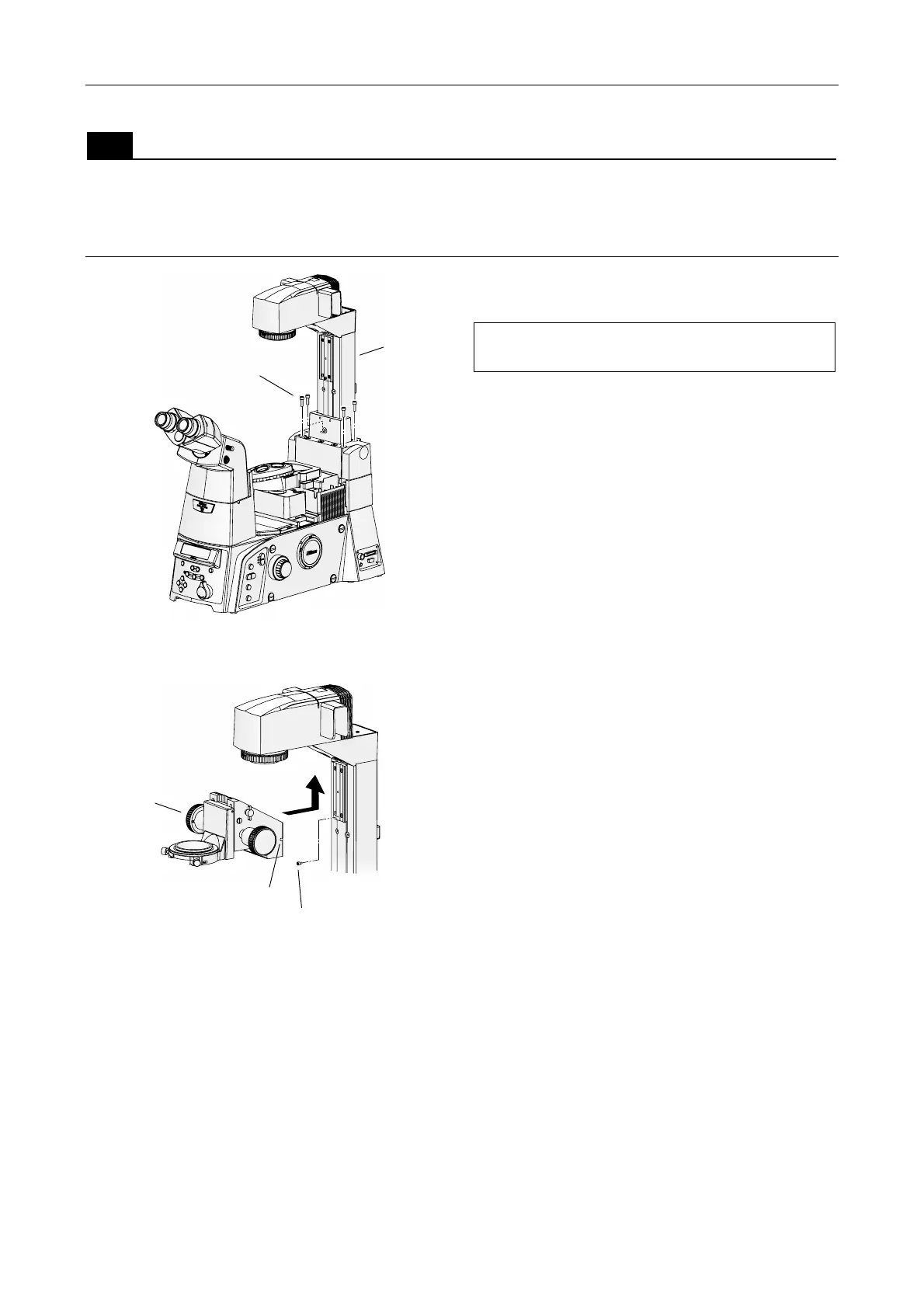

Figure 4-18 Dia Pillar Illuminator 100W attachment
Figure 4-19 Condenser mount attachment
Attach TI-DH Dia Pillar Illuminator 100W to the
microscope base.
When working, hold the dia pillar illuminator to
prevent it from falling.
1. Mount the dia pillar illuminator onto the
microscope base.
A positioning pin is provided on the microscope
base. Align the pinhole on the dia pillar
illuminator to the positioning pin.
2. Using the 4 mm hex screwdriver, secure the
dia pillar illuminator by tightening the four M5
hex socket head screws provided with the dia
pillar illuminator.
3. Attach the condenser mount to the dia pillar
illuminator.
(1) Remove the fall-stop screw.
(2)
ttach the condenser mount by sliding it onto
the dovetail groove on the dia pillar
illuminator.
Slide the mount upward to the limit.
(3) Using a hex screwdriver, securely tighten the
clamp screw on the right of the condenser
mount.
(4) Attach the fall-stop screw.
(5) When using a condenser lens other than
ELWD or ELWD-S, loosen the clamp screw
on the condenser mount and slide the
condenser mount downward to the fall-stop
screw, and then tighten the clamp screw
securely in this position.
Dia Pillar
Illuminator
100W
Hexagonal socket
head bolts (M5, x4)
Clamp screw
Condense
mount
Fall-stop screw
To Next Page
