Chapter 4 Assembly
91
1
Installing the microscope body (microscope base)
Install the microscope in an appropriate location.

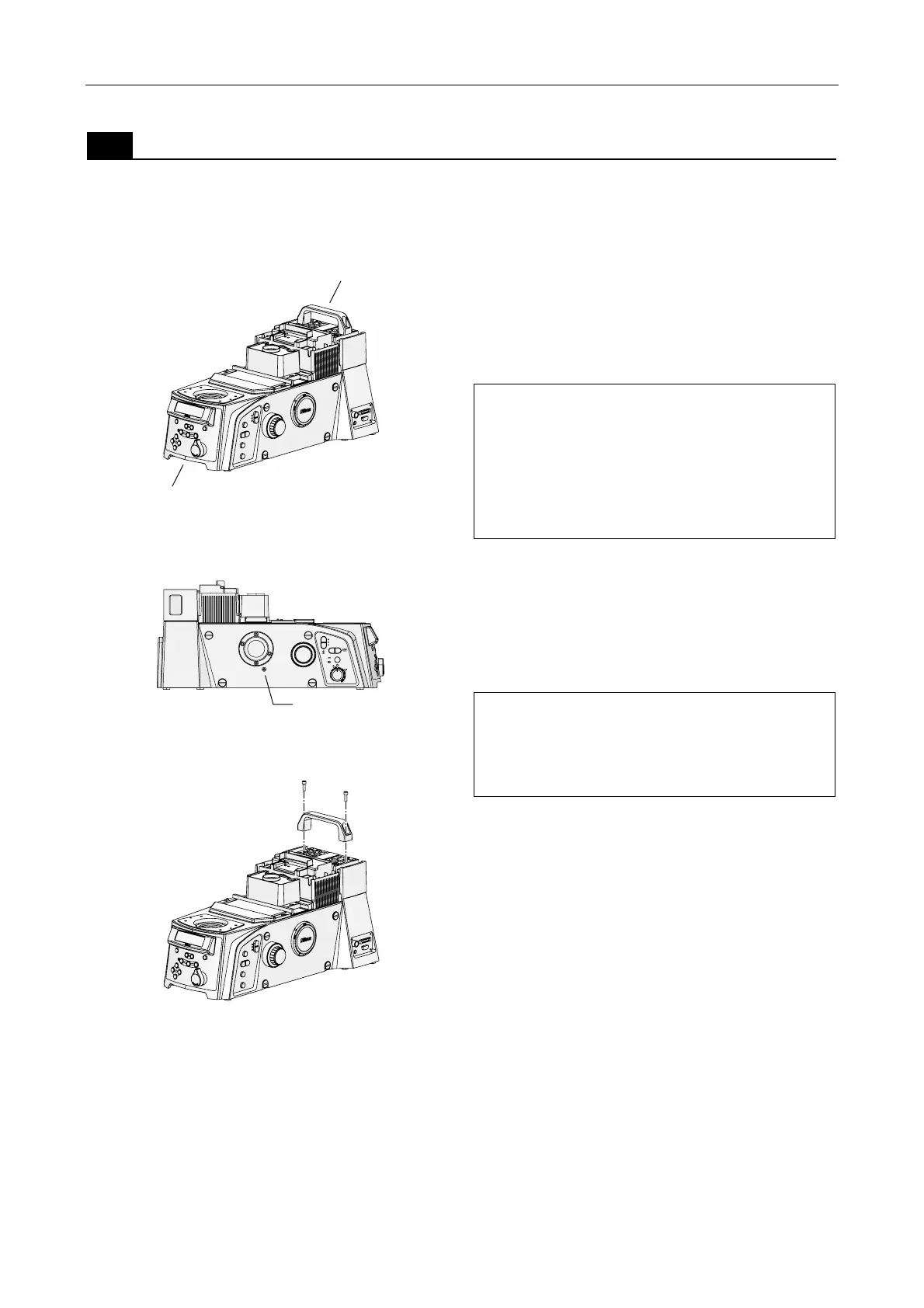

Figure 4-2 Microscope body installation
ExFine
Fine
Coarse
Obj.
ON
OFF
6V30W
MAX.MIN.
12V100W
Figure 4-3 Clamping bolt
Figure 4-4 Carrying handle removal
1. Select a location for the installation.
For the installation location, refer to “Installation
location and storage location” in “Notes on
Handling the Product” at the beginning of this
manual.
2. Take out the main body (microscope base)
from the box and place it on a stable surface.
Notes on installation
• The microscope base is heavy. Be sure to
move the microscope in a group of two or
more people.
• When lifting the microscope base, hold it
securely by the recess at the bottom front
and the carrying handle at the rear.
3. Remove the clamping bolt.
A clamping bolt is attached to the left side of the
body to secure the product during transportation.
Remove the clamping bolt with the provided 4
mm hex screwdriver, and attach the provided
rubber cap to the clamping bolt hole.
If power is turned on with the clamping bolt
left attached, it will prevent the observation
from being performed, and may also cause
product damage. Be sure to remove the
clamping bolt before turning on the power.
4. Remove the carrying handle by loosening the
two hex socket head screws with the
provided 4 mm hex screwdriver.
Microscope body
(microscope base)
Clamping bolt (M5, x1)
Hexagonal
socket head bolts
(M5, x2)
Carrying handle
Bottom front recession
