RS232G
BI-DIRECTIONAL GATEWAY
INTELLICONTROL
®
ICS PRODUCTS OVERVIEW
FEATURES AND BENEFITS
• Provide bi-directional gateway for an
IntelliControl® ICS system to control and
communicate to subsystems such as media servers
and lighting controls, and allows third-party home
control systems to communicate and control an
IntelliControl® ICS system as its audio subsystem
• Convenient configurable DB9 Cable/terminal
strip connector
• Plug and Play integration to Niles
IntelliControl
®
ICS systems
• IntelliFile3
®
Wizard based configuration
• All control functions and screens
automatically mapped to ICS user interfaces
• Subsystem compatibility control with
Lutron
®
, Escient
®
, and Audio Request
®
* on
first release
• Compatibility with AMX, Crestron, and other
RS232 devices as drivers become available
• Low profile, small footprint for unobtrusive
installation
• Integrated mounting wings accommodate
either vertical or horizontal installation
• Rugged all metal chassis construction
• Self adhesive rubber feet and snap in
“Christmas Tree” plugs included
SPECIFICATIONS
Power: 12VDC @ 90mA (powered through
Intellicontrol ICS wiring)
Note: IM-Audio card required for integration of audio on a music
server
Shipping Weight: 1 lb.
Warranty: Two-year limited.
DIMENSIONS
• 5-5/8" wide x 3-1/8" high x .7/8" deep

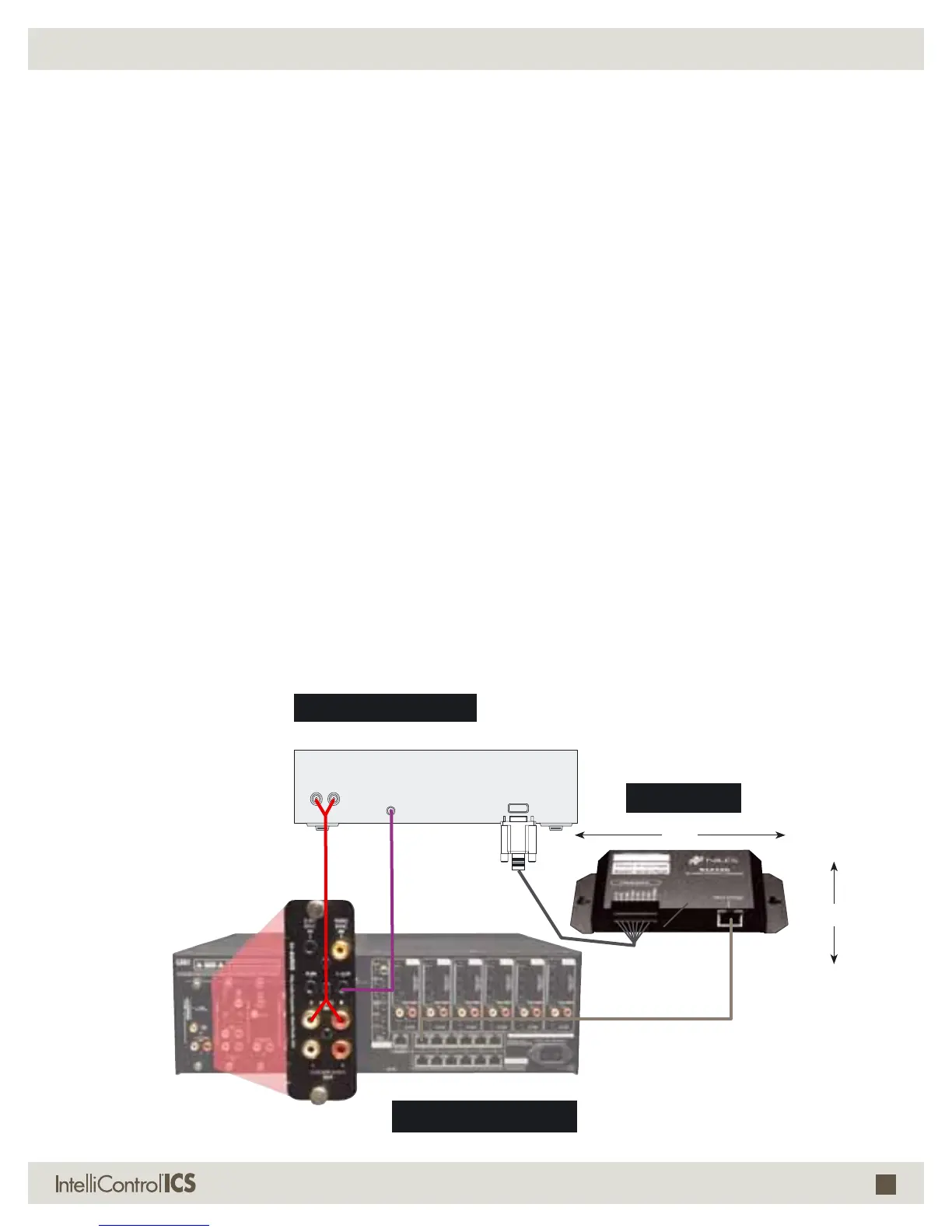

Audio Out
IR In
RS232
L R
CAT-5 CABLE
DB9 CABLE
5 5/8"
3 1/8"
* Single stream audio units only. Multiple
stream models supported using IM-Server
module.
MUSIC SERVER
RS232G
GXR2

Niles IntelliControl ICS Specifications

General

Brand	Niles
Model	IntelliControl ICS
Category	Stereo System
Language	English
