Niles IntelliControl ICS User Manual

66
(800) BUY-HIFI NILES AUDIO CORPORATION

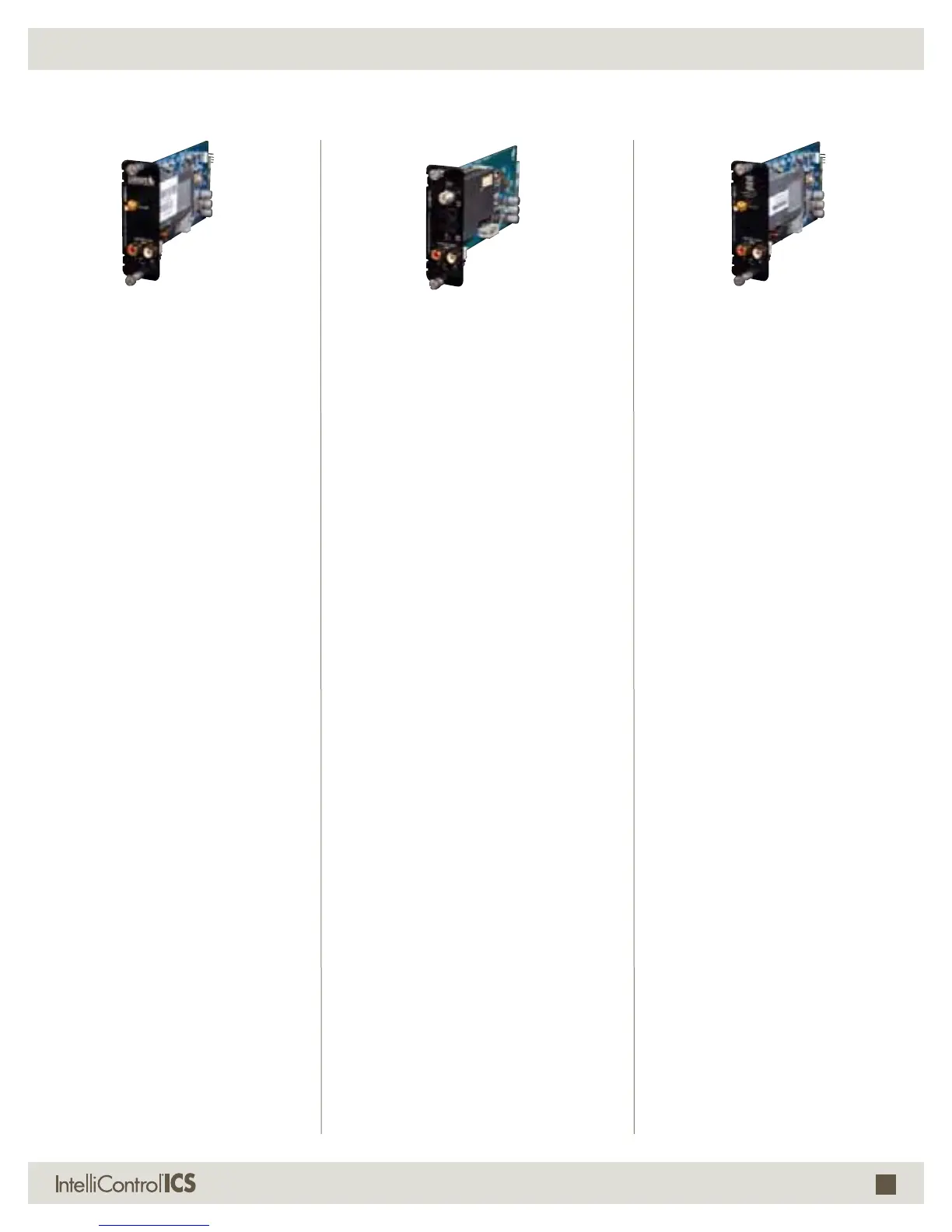

SPECIFICATIONS
TM-SIRIUS
SIRIUS
®
SATELLITE
RADIO TUNER MODULE
FG01181
Agency certifications:
Tested to UL/EN60065 for US,
Canadian and EU markets
Power: Provided when installed
into IntelliControl ICS Modular
MultiZone Receiver chassis
SIRIUS tuning range: 2332.5 to
2345 MHz
Channels: 150 commercial-free per
tuner
SIRIUS antenna connection:
50Ω SMB
Requires: SIRIUS Subscription
for content
Warranty: Two-year limited
Shipping Weight: 1 lb.
DIMENSIONS
TM-Sirius Module Card:
1-1/4” W x 3-3/4” Hx 7-1/4” D
TM-AM/FM
AM/FM RADIO
TUNER MODULE
FG01175
Agency certifications:
Tested to UL/EN60065 for US,
Canadian and EU markets
Frequency Range:
AM 530 - 1710 kHz,
FM 87.7 - 107.9 MHz
AM SECTION
Antenna Impedance: 300 ohm
balanced
Sensitivity @ S/N: 20dB 55dB
Image Rejection: 33dB
S/N ratio: 45dB
FM SECTION
Antenna Impedance: 75 ohm
unbalanced
Sensitivity @ S/N: 30dB 6dB
max 12dB
Image Rejection: 80dB
1 FM and 1 AM antenna (included)
Warranty: Two-year limited
Shipping Weight: 1 lb.
DIMENSIONS
TM-AM-/FM Module Card:
1-1/4” W x 3-3/4” H x 7-1/4” D
IM-AUDIO
LEGACY AUDIO
INTEGRATION MODULE
FG01177
Agency certifications:
Class 2/SELV covering US, Cana-
dian and EU markets
Power: Provided when installed
into GXR2 chassis
Voltage Sync Input: 3-30V DC
Video Sense Type: Composite
Video
Warranty: Two year limited
Shipping Weight: 1 lb.
DIMENSIONS
IM-Audio Module Card:
1-1/4” W x 3-3/4” H x 7-1/4” D
