SPECIFICATIONS

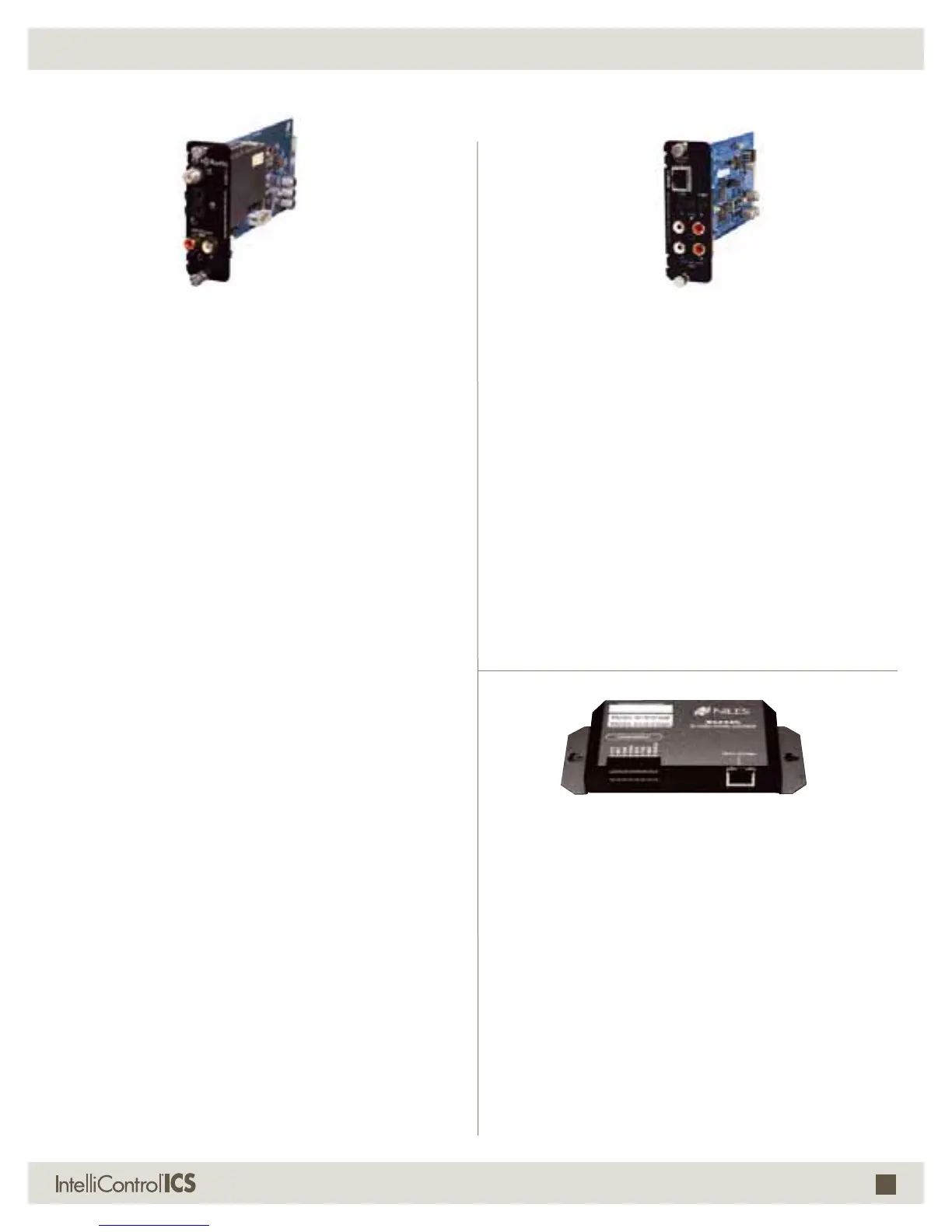

TM-HD/R
HD RADIO
™
TUNER MODULE
FG01340
Agency certifications:
Tested to UL/EN60065 for US, Canadian and EU
markets
Frequency Range:
AM 530 - 1710 kHz,
FM 87.5 - 108.1 MHz
AM SECTION
Antenna Impedance: 1K-ohm AM Antenna
Input
Sensitivity @ S/N: 25dBUV@S/N 30DB 55dB
AM THD: .5% @-50Bm
FM SECTION
Antenna Impedance: 75 ohm FM Antenna
Input
Sensitivity @ S/N: 15dBUV@
S/N 30dB
FM THD: .5% @-66Bm
Warranty: Two-year limited
Shipping Weight: 1 lb.
DIMENSIONS
TM-HD/R Module Card:
1-1/4" W x 3-3/4" H x 7-1/4" D
IM-SERVER
MEDIA SERVER/PLAYER
INTEGRATION MODULE
FG01339
Agency certifications:
Tested to UL/EN60065 for US, Canadian and EU
markets
Power: Provided when installed into GXR2 chassis
Warranty: Two-year limited
Shipping Weight: 1 lb.
DIMENSIONS
TM-AM-/FM Module Card:
1-1/4” W x 3-3/4” H x 7-1/4” D
RS232G
BI-DIRECTIONAL GATEWAY
FG01265
Power: 12VDC @ 90mA (powered through
Intellicontrol ICS wiring)
Note: IM-Audio card required for integration of
audio on a music server
Warranty: Two-year limited
Shipping Weight: 1 lb.
DIMENSIONS
5-5/8" wide x 3-1/8" high x .7/8" deep
