INTERCHANGEABLE SOURCE CARD MODULES
TM-AM/FM
AM/FM RADIO TUNER MODULE
The TM-AM/FM is a tuner module that slides into the
card cage on an IntelliControl
®
ICS Modular Multizone
Receiver. It provides the functionality of a normal tuner:
seek through stations, access to 20 favorites and direct
access to a station by entering the channel frequency.
The TM-AM/FM Module outputs metadata (channel fre-
quency) on IntelliControl ICS user interfaces with dis-
plays. Multiple TM-AM/FM Tuner Modules can be used
in a single chassis to allow multiple AM/FM channels
to be played simultaneously in different zones.
FEATURES AND BENEFITS
• Plug and Play Integration
The TM-AM/FM module will automatically
identify itself to the IntelliFile
®
3 Programming
Software during system configuration and map all
appropriate control functions to all user interfaces
• Metadata
The TM-AM/FM module outputs station frequency
and band (AM or FM) that is displayed on
IntelliControl ICS user interfaces with LCDs
providing real-time tuner status in remote rooms

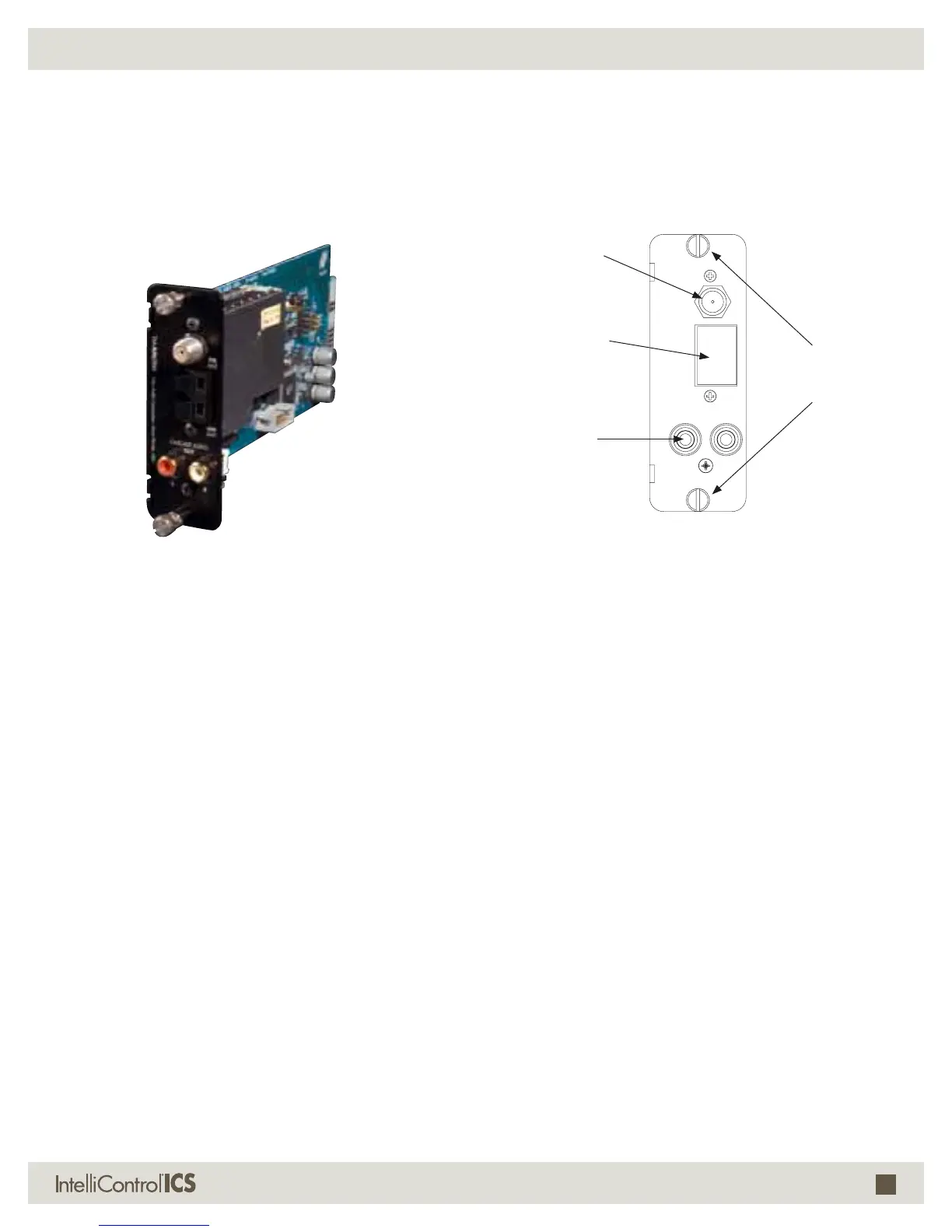

Thumbscrews
Secure TM-AM/FM to
IntelliControl ICS Modular
MultiZone Receiver
'.
"/5
5.".'.
".
"/5
-
3
$"4$"%&"6%*0
065
/JMFT"VEJP$PSQPSBUJPO.JBNJ'MPSJEB64"
FM Antenna Terminal
Connects to included FM
dipole antenna
F-Type terminal
AM Antenna Terminal
Connects to included AM
loop antenna
Cascade Audio OUT
Left and right line-level audio
outputs for use in multi-chassis
IntelliControl ICS systems and
home theater receivers
• 20 Favorite Channel Presets
User-defined favorites allow easy access to
most listened-to stations. Favorites are displayed
on user interfaces with LCDs and are configurable
in either IntelliFile
®
3 or from user interfaces with
LCD displays
• Add to Favorites
Allows user changes to favorites from user
interfaces with LCD displays
• Direct Access Tuning
Direct entry of station frequency from user
interfaces with alphanumeric keys
• Convenient Thumb Screws
Secure module to chassis card cage without the
need for additional tools
