Niles Audio Corporation Miami Florida, USA
INTELLICONTROL
®
ICS PRODUCTS OVERVIEW

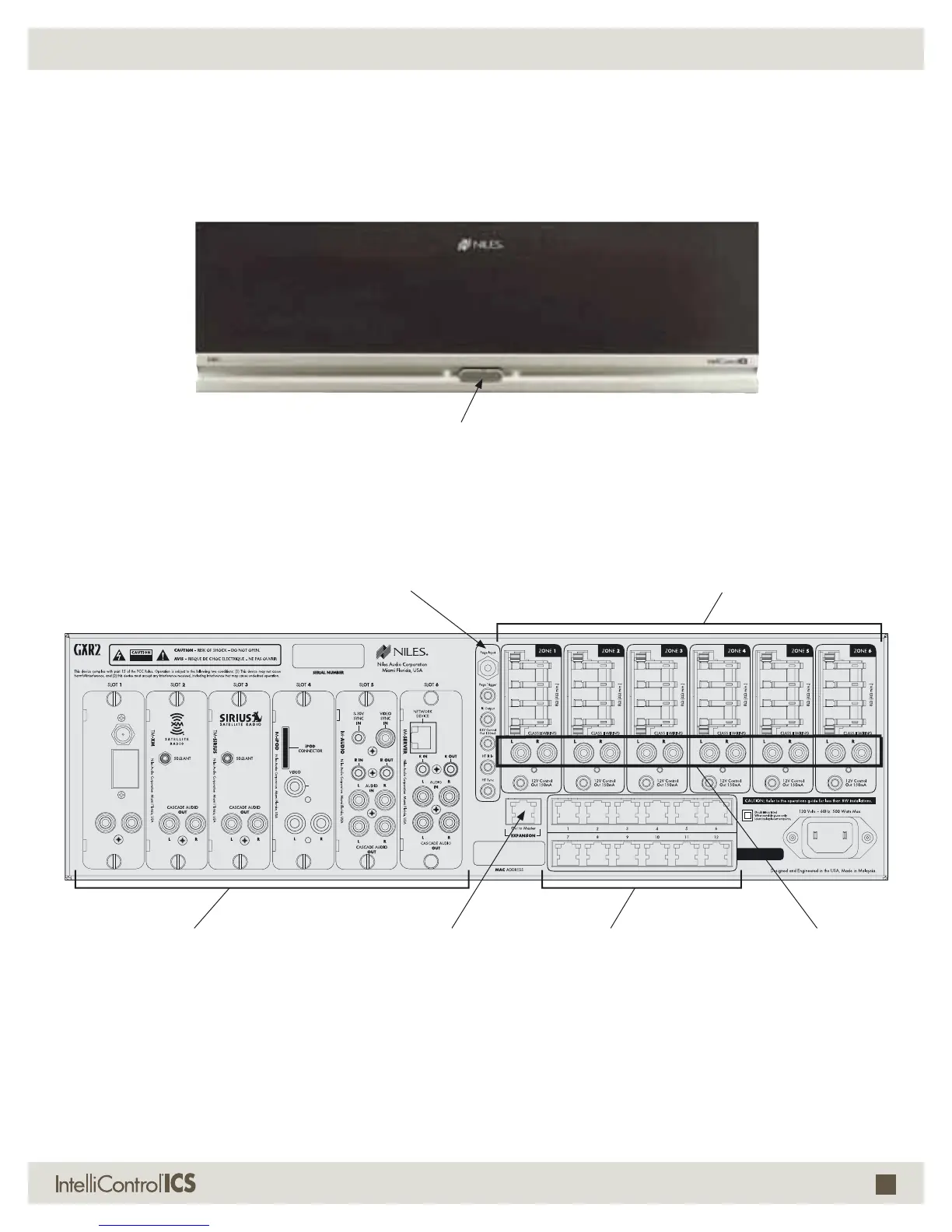

Integrated Six Slot Card Cage
Accepts any combination of up to six
IntelliControl
®
ICS integration modules
Communication
Control Hub
All user interfaces and GXR2
slave chassis are connected
to any available RJ45 port
Removable Speaker Connectors
Six connectors hold up to
12-gauge speaker wire
System Power
On/Off
Home Theater Integration Ports
Enable audio and video source components
shared with the home theater system to be turned
on, controlled via IR and turned off as needed
System Expansion Port
Expandable up to 30 zones
with additional GXR2s
Selectable Fixed/Variable
Zone Preamp Outputs
With 12 Volt Triggers for
external amplifi er applications
