LINKING MULTIPLE ZONES
EXAMPLES OF INTELLICONTROL
®
ICS SYSTEM CONFIGURATIONS
COMMUNICATION
& CONTROL SWITCH
VIDEO
OUT
CASCADE AUDIO
OUT
FM
ANT
TM-AM/FM
AM
ANT
L
R
CASCADE AUDIO
OUT
Niles Audio Corporation Miami Florida, USA
PATIO POOL AREA CABANA
CAT-5
Cable
16/4
Speaker
Wire

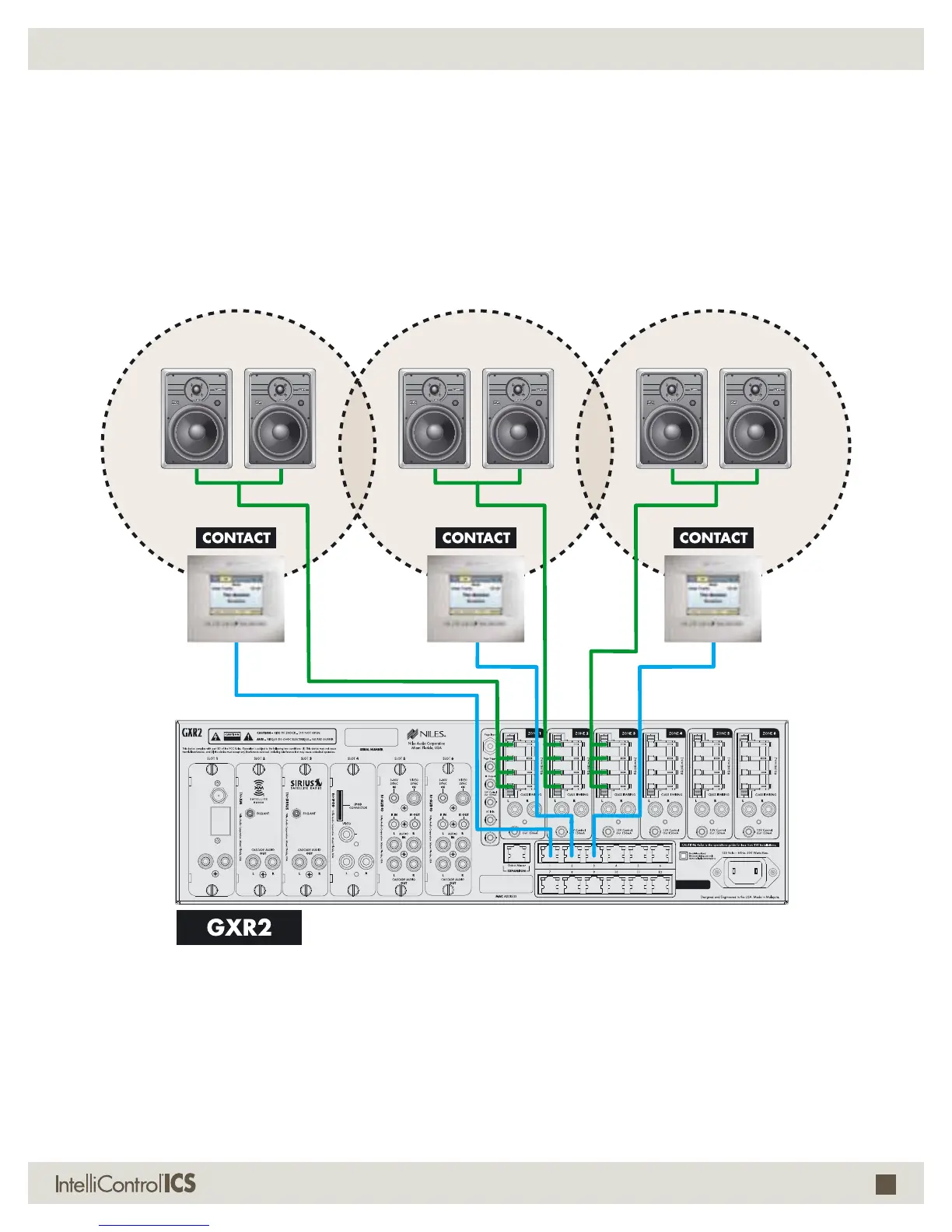

The GXR2 can be configured via the IntelliFile
®
3
software to enable zone linking. Below is an example
of 3 zones linked together. All 3 zones are turned
on and change sources together. The volume can be
controlled for each zone separately from an user
interface such as a Contact Touch Screen.
