Niles IntelliControl ICS User Manual

38
(800) BUY-HIFI NILES AUDIO CORPORATION
TM-HD/R INSTALLATION INSTRUCTIONS
INSTALLATION
WARNING: Always turn power OFF to the IntelliControl
ICS Modular MultiZone Receiver and be sure AC
line cord is disconnected to avoid damage and elec-
trical shock before making any connections to the
TM-HD/R Module.
CAUTION: The TM-HD/R Module is susceptible to static
discharge. Be sure to use a grounding strap or touch an
earth ground prior to picking up the TM-HD/R. Handle
the card by its edges.
1. Carefully slide the TM-HD/R Module into the ap-
propriate card slot. (Refer to the GXR2 Installation
Worksheet to assure proper card slot number.)
2. Concentrate on the GXR2 card cage guides as you
insert the module card.

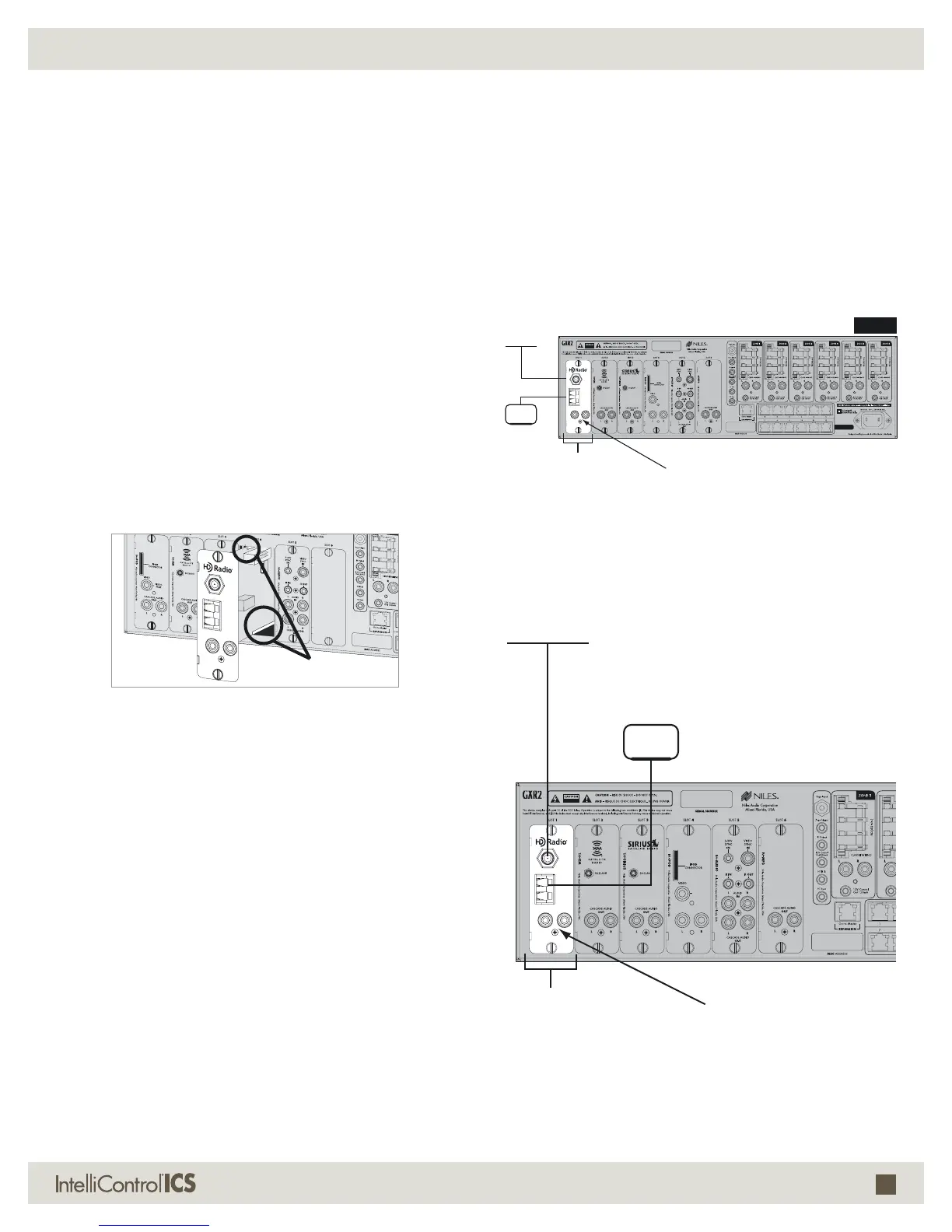

Figure 1. Inserting the module card into the GXR2 card cage
3. Be sure the multi-pin connector is secured to the
header in the card cage.
4. Tighten thumbscrews. (Do not over tighten.)
CONNECTING AN ANTENNA TO THE TM-HD/R
MODULE CARD
When all modules are in place, and all system
components have been installed, connect AM and FM
antennas.
AM Antenna
1. Connect bare wire ends on antenna to dual spring
clips on TM-HD/R (polarity not critical).
2. Position loop antenna for best reception.
FM Antenna
1. Connect an antenna with a F-type connector to
F-type terminal on TM-HD/R.
2. Spread “arms” of dipole antenna as far apart
as possible and position for best reception.
EXAMPLES OF INTELLICONTROL
®
ICS SYSTEM CONFIGURATIONS
'.
"/5
"
.
"/5
-
3
$
"
4$"
%&"
6%*0
065
5.)%3
/JMFT"VEJP$PSQPSBUJPO.JBNJ'MPSJEB64"
Guides
7*%&0
065
$"4$"%&"6%*0
065
(93
$0..6/*$"5*0/
$0/530-48*5$)
'.
"/5
".
"/5
-
3
$"4$"%&"6%*0
065
5.)%3
/JMFT"VEJP$PSQPSBUJPO.JBNJ'MPSJEB64"
5.)%3
.PEVMF
".-PPQ
"OUFOOB
$BTDBEF
"VEJP0VU
'.%JQPMF
"OUFOOB
Figure 2. TM-HD/R Module connection to antennas.
Figure 4. Enlargement – AM and FM antennas connecting to module card.
7*%&0
065
$"4$"%&"6%*0
065
$BTDBEF
"VEJP0VU
5.)%3
.PEVMF
".-PPQ
"OUFOOB
'.%JQPMF
"OUFOOB
'.
"/5
".
"/5
-
3
$"4$"%&"6%*0
065
5.)%3
/JMFT"VEJP$PSQPSBUJPO.JBNJ'MPSJEB64"
Figure 3. Enlargement – AM and FM antennas
connecting to module card.
