(800) BUY-HIFI NILES AUDIO CORPORATION
DOORBELL INTERFACE
EXAMPLES OF INTELLICONTROL
®
ICS SYSTEM CONFIGURATIONS

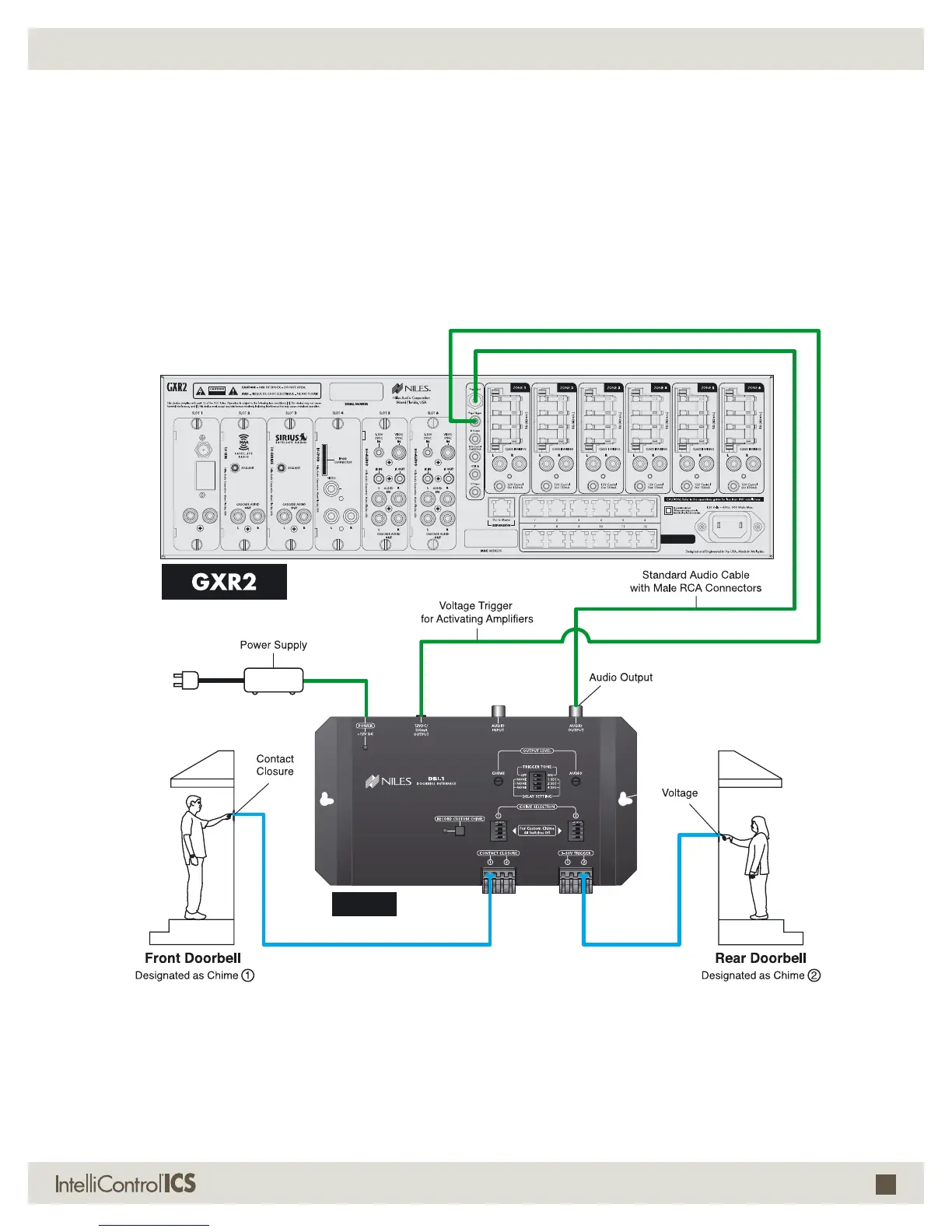

The GXR2 can be configured via the IntelliFile
®
3
software for doorbell integration. Below is an example
of a doorbell integrated into an ICS system using a
Niles DBI-1 Doorbell Interface.
COMMUNICATION
& CONTROL SWITCH
VIDEO
OUT
CASCADE AUDIO
OUT
FM
ANT
TM-AM/FM
AM
ANT
L
R
CASCADE AUDIO
OUT
Niles Audio Corporation Miami Florida, USA
DBI-1
