EXPANDING THE SYSTEM
When using multiple chassis, connect the Left and Right
Cascade Audio OUT of the TM-XM to the Left and Right
Audio IN on the IM-AUDIO Module in the same number
card slot on the Slave chassis. Up to four Slave chassis
may be used in a system.
TM-XM INSTALLATION INSTRUCTIONS (CONTINUED)
ANTENNA ADJUSTMENT
1. Adjust the XM antenna for signal strength. For best
results, the antenna should be mounted outdoors
with an unobstructed southeast facing. Some direc-
tional adjustment will be needed to attain optimum
signal strength. When the antenna is in the optimum
position, the signal strength indicator, located on the
User Interface LCD in the upper left corner, will show
three bars.
2. To test the TM-XM prior to activation, tune to Chan-
nel 1. (XM Preview) If the “Preview Channel” plays,
the tuner is ready for activation.
NOTE: See “Troubleshooting” for additional informa-
tion regarding on-screen messages.
ACTIVATION
It is recommended that the homeowner activate the XM
Subscription Service, to make service package choices
and to assure proper subscription and billing informa-
tion. If providing this service for the homeowner:
1. Have IntelliControl ICS System powered up and
active with TM-XM selected.
2. Tune to Channel 0 to get the XM ID Number. Write
the number down for future reference.
3. Find the 8-character XM Radio ID of the XM Card.
4. You can now activate XM by calling 1-800-XM-RADIO
(1-800-967-2346) or on the internet visit http://acti-
vate.xmradio.com and have the homeowner’s credit
card and XM Radio ID ready and follow the prompts
to activate your subscription.
7*%&0
065
$"4$"%&"6%*0
065
'.
"/5
5.".'.
".
"/5
$"4$"%&"6%*0
065
/JMFT"VEJP$PSQPSBUJPO.JBNJ'MPSJEB64"
$0..6/*$"5*0/
$0/530-48*5$)
$0..6/*$"5*0/
$0/530-48*5$)
(93.BTUFS$IBTTJT
(934MBWF$IBTTJT
5.9.
.PEVMF
*."6%*0
.PEVMF
4UFSFP
3$"3$"
$BCMF
&YQBOTJPO
065UP.BTUFS
"/54"5
"OUFOOB
$BTDBEF
"VEJP0VU
$PNNVOJDBUJPO
BOE$POUSPM4XJUDI
$BU$BCMF
"VEJP*O
EXAMPLES OF INTELLICONTROL
®
ICS SYSTEM CONFIGURATIONS
-3$BTDBEF
"VEJP0VU
-3
"VEJP*O
4UFSFP3$"
UP3$"$BCMF
.BTUFS(93
5.9..PEVMF *."6%*0.PEVMF
4MBWF(93
Stereo
RCA
to RCA
Cable
L&R Cascade
Audio Out
L&R
Audio In

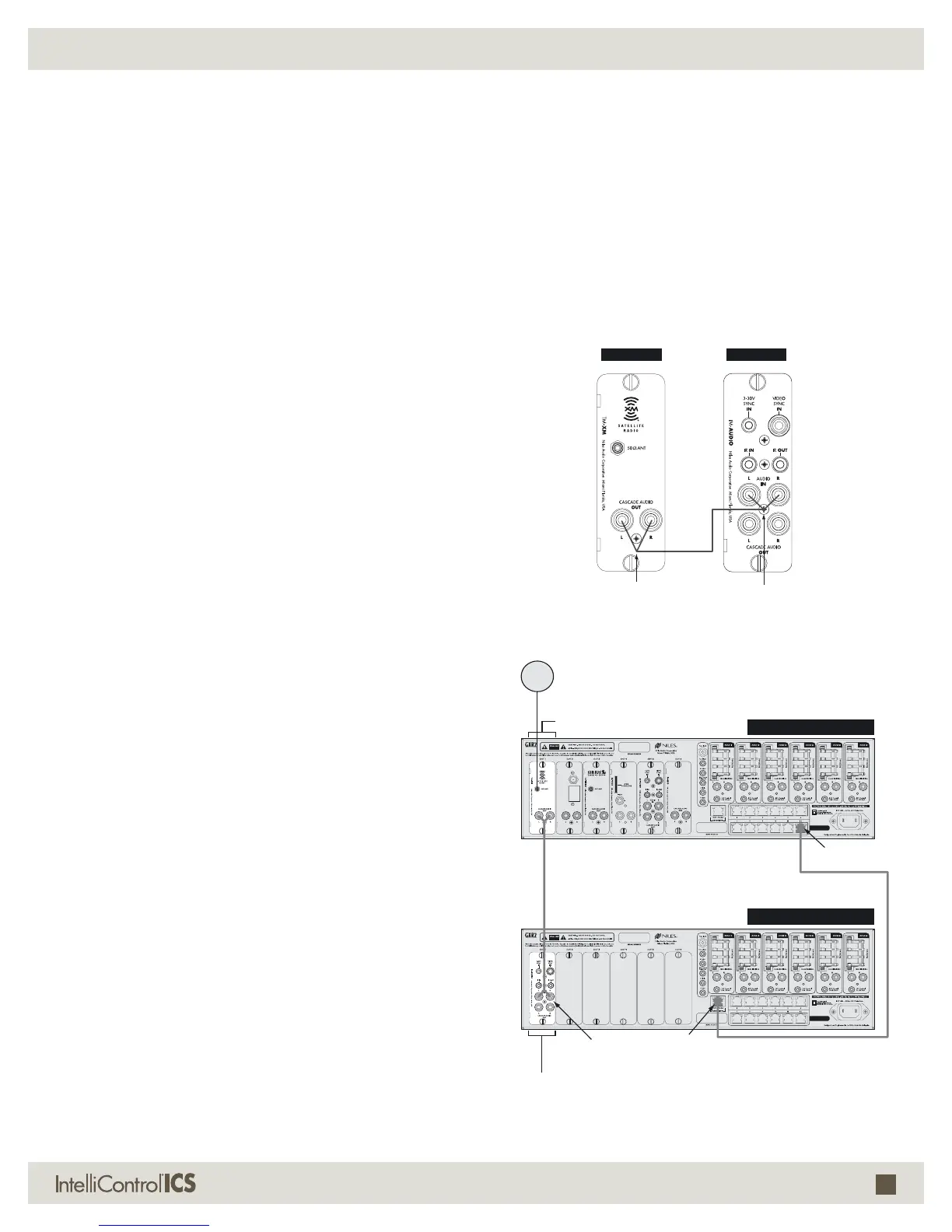

Figure 5. Expanded System with Cascade Audio Connections
